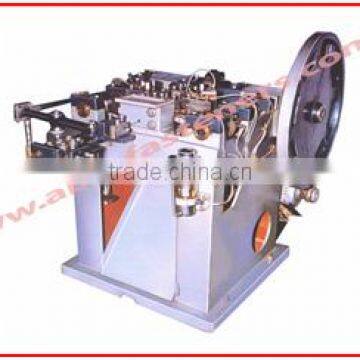

WIRE NAIL / PANEL PIN MAKING MACHINES (Automatic, High Speed) photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Delhi, India
Brand Name:
ABM
Model Number:
ABM-FM-6576
Contact Supplier Request Quote Chat Now
Abm Tools
Payment & Shipping
Payment Methods:
Port of Shipment:
New Delhi
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Delhi, India
Brand Name ABM
Model Number ABM-FM-6576
After-sales Service Provided Engineers available to service machinery overseas

FEATURES



CONSTRUCTION



ABM TOOLS Panel Pin & Wire Nails making machines crank type are made from high grade castings and steel. Machines ensure perfect sturdy construction and long life.



DRIVE



Three shafts design has been adopted to ensure efficient smooth working. The main crank is direct operated by motor. The side shafts are driven by four bevel gears, which operate cutting tools. The separate shafts for cutting ensure correct adjustment of tools.



BEARING



Main crank & side shafts are fitted with special gun metal Bushes to ensure long life. All the Bushes & Lubricating Points are provided with cup type oil reservoirs.



WORKING OF MACHINE



The wire end from coil passes through straightening rollers and fed intermittently in the gripping dies, which close firmly allowing heading punch to press the head of the nails, then grip loosened and required length of the nail is fed constantly, where it is cut by cutting tools leaving ample stock for the head of the next nail. Thus ready nail is ejected by the ejector. The operations are repeated in each revolution.



WIRE FEED



The wire feed is obtained from main crank shaft. The desired length of nail is easy to set by adjustment bolt.



ACCESSORIES FOR THE PLANT



Grinding Machine, Polishing Drum and Spare Dies, etc.



SPECIFICATION (Wire Nail / Panel Pin Making Machine)

Item Code No. ABM-FM-6570 ABM-FM-6571 ABM-FM-6572
Length of Nail / Panel Pin 1/4" to 1"
(6 to 25 mm)		 1/2" to 1-1/2"
(12 to 38 mm)		 1/2" to 2"
(12 to 50 mm)
Thickness of Wire Gauge 0.9 to 1.4 mm
(20 to 17 SWG)		 1.2 to 2 mm
(18 to 14 SWG)		 1.6 to 2.6 mm
(16 to 12 SWG)
Production Per Minute 500 to 550 Pcs. 400 to 450 Pcs. 300 to 350 Pcs.
Motor Required 1 H.P. x 1400 R.P.M. 1.5 H.P. x 1440 R.P.M. 2 H.P. x 1440 R.P.M.
Net Weight of Machine 225 Kg. 350 Kg. 500 Kg.
Gross Weight of Machine 300 Kg. 450 Kg. 650 Kg.
Case Size 33" x 29" x 32" 33" x 32" x 35" 36" x 37" x 37"



  SPECIFICATION (Wire Nail Making Machine)

Item Code No. ABM-FM-6573 ABM-FM-6574 ABM-FM-6575 ABM-FM-6576
Length of Nail 3/4" to 3"
(20 to 75 mm)		 1" to 4"
(25 to 100 mm)		 2" to 6"
(50 to 150 mm)		 2" to 8"
(50 to 200 mm)
Thickness of Wire Gauge 2 to 3.7 mm
(14 to 9 SWG)		 2.6 to 4 mm
(12 to 8 SWG)		 4 to 6 mm
(8 to 4 SWG)		 4 to 7 mm
(8 to 2 SWG)
Production Per Minute 225 to 275 Pcs. 175 to 210 Pcs. 100 to 125 Pcs. 90 to 100 Pcs.
Motor Required 3 H.P. x 1400 R.P.M. 5 H.P. x 1400 R.P.M. 7.5 H.P. x 960 R.P.M. 10 H.P. x 960 R.P.M.
Net Weight of Machine 850 Kg. 1200 Kg. 1800 Kg. 2400 Kg.
Gross Weight of Machine 1050 Kg. 1550 Kg. 2400 Kg. 3200 Kg.
Case Size 47" x 56" x 42" 52" x 51" x 44" 65" x 72" x 49" 84" x 77" x 57"
