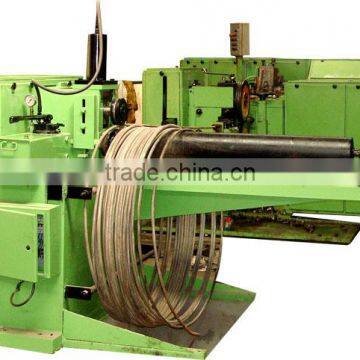

Automatic High Speed Double Stroke Heading Machines For Making Pop Rivet , Solid Rivet , Bolts & Screws

Abm Tools
Automatic High Speed Double Stroke Heading Machines For Making Pop Rivet , Solid Rivet , Bolts & Screws thumbnail-1
Automatic High Speed Double Stroke Heading Machines For Making Pop Rivet , Solid Rivet , Bolts & Screws thumbnail-2
Automatic High Speed Double Stroke Heading Machines For Making Pop Rivet , Solid Rivet , Bolts & Screws photo-1
Automatic High Speed Double Stroke Heading Machines For Making Pop Rivet , Solid Rivet , Bolts & Screws photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Delhi, India
Brand Name:
ABM
Model Number:
ABM-FM-6415
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
New Delhi
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Delhi, India
Brand Name ABM
Model Number ABM-FM-6415
After-sales Service Provided Engineers available to service machinery overseas







FEATURES



  • These cold heading machines are fully automatic and easy to operate with little training, fitted with Solid Die to produce blank for Bolts, Screws, Rivets and other similar components. Cut off and knock out mechanism have safely devices that will stop any major accident if any abnormal function occurs in machines.
  • A positive knock out provision had been made on the 1st and 2nd punches to eliminate the possibility of parts sticking to these punches during the operations. The maximum parts of the machines are ground and all the Cames and Rollers  from H.C.H.C. ( Hardened & Ground ).
  • On  some  extra  charges machines will be equipped with Pneumatic Clutch & Automatic Centralized Lubrications systems which provides sufficient quantity lubricating to all bearing surface.









SPECIFICATION



Item Code No.

Length of Bolt

Dia. of Bolt

Production
Per Minute

Motor H.P.
& R.P.M.

ABM-FM-6410

2"  (12 mm - 50 mm)

1/4" (3 mm - 6 mm)

90 - 95  Pcs.

5 x 960

ABM-FM-6411

2-1/2" (20 mm - 65 mm)

5/16" (6 mm - 8 mm)

80 - 85  Pcs.

7.5 x 960

ABM-FM-6412

3"  (20 mm - 75 mm)

3/8" (6 mm - 10 mm)

70 - 75  Pcs.

10 x 960

ABM-FM-6413

4"  (25 mm - 100 mm)

1/2" (8 mm - 12 mm)

60 - 65  Pcs.

20 x 960

ABM-FM-6414

5"  (35 mm - 125 mm)

5/8" (10 mm - 16 mm)

50 - 55  Pcs.

30 x 720

ABM-FM-6415

6"  (50 mm - 150 mm)

3/4" (12 mm - 20 mm)

35 - 40  Pcs.

30 x 720

ABM-FM-6416

8”   (75 mm – 200 mm)

1”   (13 mm - 25 mm)

20 – 30 Pcs.

40 x 720
