3 Phase Din Rail Modular Socket

3 Phase Din Rail Modular Socket thumbnail-1
3 Phase Din Rail Modular Socket thumbnail-2
3 Phase Din Rail Modular Socket thumbnail-3
3 Phase Din Rail Modular Socket photo-1
3 Phase Din Rail Modular Socket photo-2

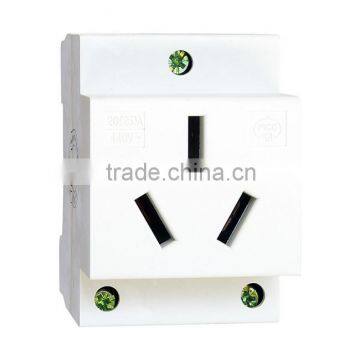

3 Phase Din Rail Modular Socket photo-3
US$ 0.5 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GWIEC
Model Number:
AC30
Contact Supplier Request Quote Chat Now
Yueqing Geenwich Imp And Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GWIEC
Model Number AC30
Type Plug with Socket
Grounding Standard Grounding
Rated Voltage 230/440V
Rated Current 10/16/25 Amp
Application Residential / General-Purpose





Product Description





AC30 series Din rail modular socket



Application                                                              (AC30 Moudular Socket)
AC30 modular socket can be used together with our other modular products for connection of mobile devices,tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.
Specification
Type
Rated current
(A)
Pole S
Width(mm)
rated voltage
(V)
Connection
capacity
AC30-10/2
10
2
18
230
≤16mm2
AC30-16/2
16
AC30-25/2
25
AC30-10/3
10
3
36
AC30-16/3
16
AC30-25/3
25
54
AC30-16/4
16
4
54
400
AC30-25/4
25
72
Technical Data
Frequency:50 or 60Hz. Overvoltage category:3
Rated insulation voltage Ui:500V Pullution degree:2
Rated impulse withstand voltage Protection class:IP20
Uimp:5000V Standard mounting:35mm DIN rail
Dielectric test voltage at ind.Freq. Ambient temperature:-5oC to +40oC
for 1min:2.8kV Storage temperature:-25oC to +70oC
Application                                                    (AU5 Modular Socket )
ACF and ACG 20 modular socket can be used together with our other modular products for connection of mobile devices,tools or electric and electronic non-modular equipments directly inside civil industrial switchboards.
Specification
Type
Rated current(A)
Standard
Width(mm)
Connection capacity
ACF
10,16,25
France
44.5
≤6mm2
AU5
10,16,25
Germany
44.5
≤6mm2
Technical Data

Frequency:50 or 60Hz.
Electrical life: 5000times

 Mounting category:2,3
Rated insulation voltage Ui:500V Pullution degree:2
Rated impulse withstand voltage Protection class:IP20
Uimp:5000V Standard mounting:35mm DIN rail
Dielectric test voltage at ind.Freq. Ambient temperature:-5oC to +40oC
For 1min.: 2.8kV Storage temperature:-25oC to +70oC
