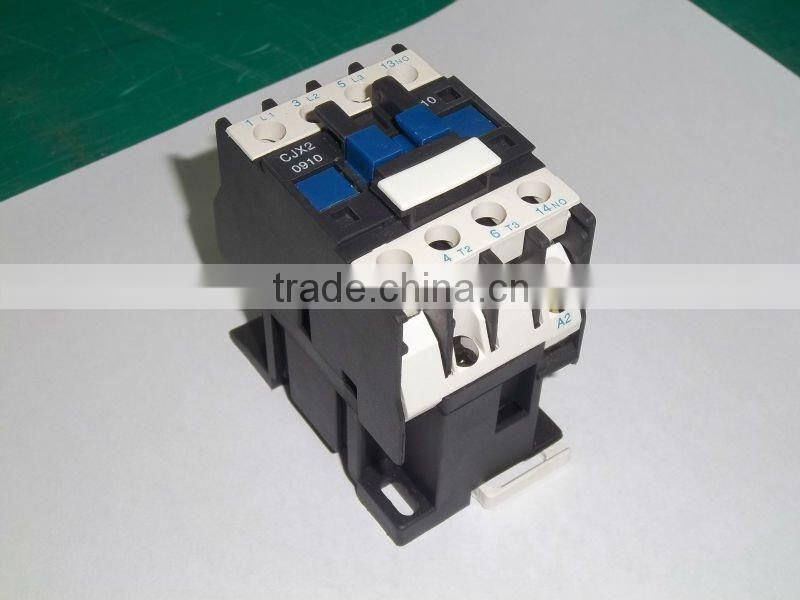

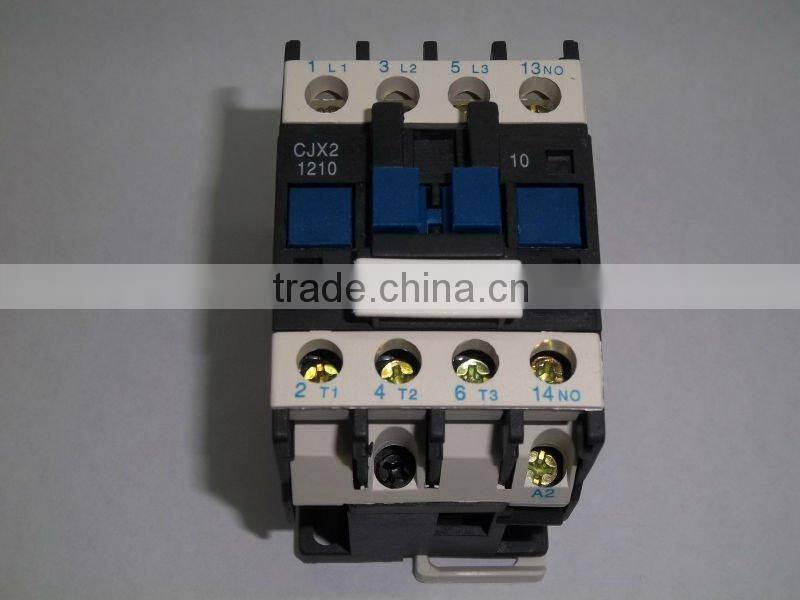

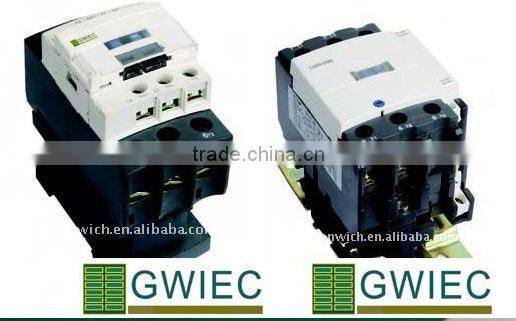

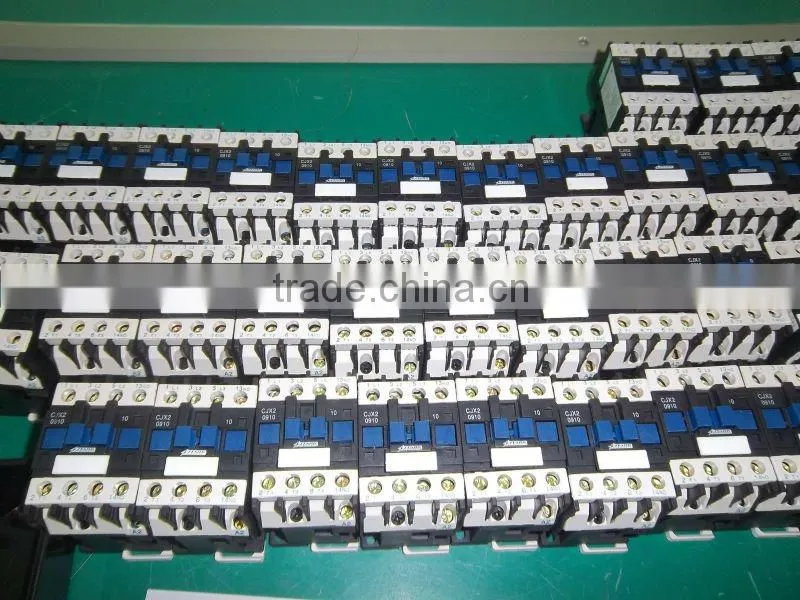

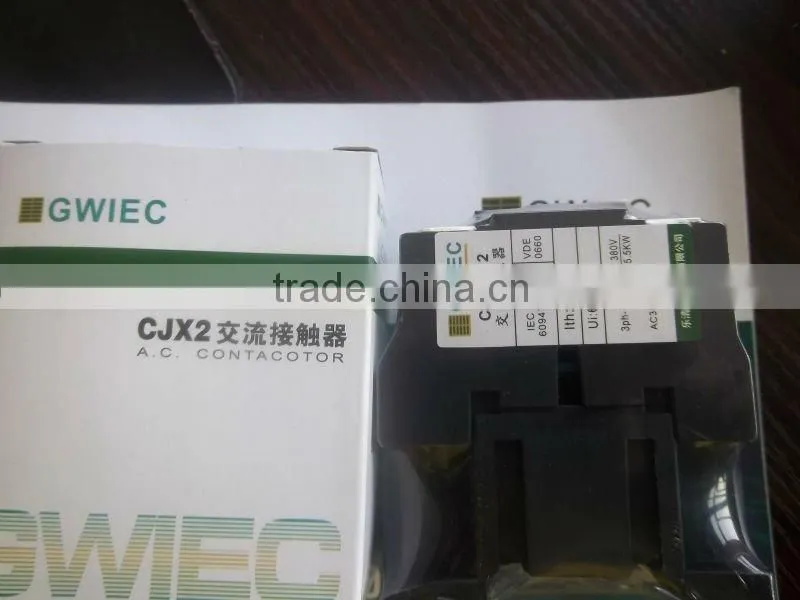

New LC1 D / CJX2 Telemecanique Contactor

New LC1 D / CJX2 Telemecanique Contactor thumbnail-1
New LC1 D / CJX2 Telemecanique Contactor photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GIE
Model Number:
CJX2 series telemecanique contactor NEW
Contact Supplier Request Quote Chat Now
Yueqing Geenwich Imp And Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GIE
Model Number CJX2 series telemecanique contactor NEW
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage 380v
Main Circuit Rating Current Other, AC3 9/38A AC1 25/50A

  new typle LC1 D / CJX2 telemecanique contactor

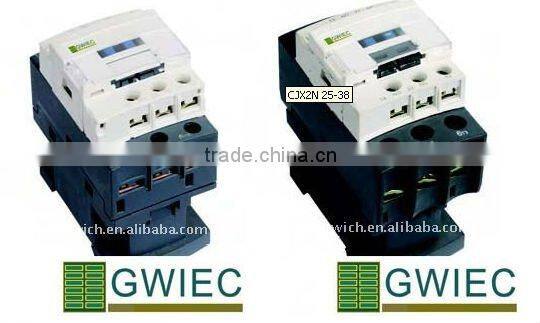

CJX2N (New design LC1D09)SERIES AC CONTACTOR

APPLICATION
CJX2-N series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz
or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.
Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes
the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is
combined into the electromagnetic starter. The contactor is produced according to IEC 947-2, VDE 0660
& BS5452.



Rated operation current
Ie max AC-3 (Ue≤440V) 9A 12A 18A 25A 32A 38A
Ie AC-1 (0≤60°C) 25A     32A 40A 50A
Rated operational voltage 690V
Poles (P) 3 3 4 3 3 4 3
Rated
operational
power
in AC-3		 220/240V 2.2kW 3kW 4kW 5.5kW 7.5kW 9kW
380/400V 4kW 5.5kW 7.5kW 11kW 15kW 18.5kW
415/440V 4kW 5.5kW 9kW 11kW 15kW 18.5kW
500V 5.5kW 7.5kW 10kW 15kW 18.5kW 18.5kW
660/690V 5.5kW 7.5kW 10kW 15kW 18.5kW 18.5kW
1000V - - - - - -
Auxiliary contacts 1 N/C and 1 N/O instantaneous incorporated in the contactors, with addon
blocks common to the whole range comprising up to 4 N/C or N/
O instantaneous, up to 1 N/O+1 N/C time delay and up to 2 N/O or N/C
protected contacts and 2 screen continuity terminals
Compatible
manualauto thermal
overload relays		 Class 10A 0.10-10A 0.10-13A   0.10-18A 0.10-32A   0.10-38A 0.10-38A
Class 20A 2.5-10 2.5-13A   2.5-18A 2.5-32A   - -
Suppressor modules
(d.c. and low
consumption
contactors have
built-in
suppression
as standard)		 Varistor Y Y Y Y Y Y Y Y
Diode - - Y - - Y - -
RC circuit Y Y Y Y Y Y Y Y
Bridirectional
peak limiting
diode		 Y Y Y Y Y Y Y Y
Interfaces Relay Y Y Y Y Y Y Y Y
Relay+override function Y Y Y Y Y Y Y Y
Solid state Y Y Y Y Y Y Y Y
Contactor type
references		 ~ or… 3P CJX2N-09 CJX2N-12   CJX2N-18 CJX2N-25   CJX2N-32 CJX2N-38
~ 4-P - CJX2N-12   - CJX2N-25   - -
 -4P - CJX2N-12   - CJX2N-25   - -
Reversing
contactor type
references		 ~ 3P CJX2N-DN09 CJX2N-DN09   CJX2N-D18 CJX2N-D25   CJX2N-D32 CJX2N-D38
 -3P CJX2N-DN09 CJX2N-DN09   CJX2N-D18 CJX2N-D25   CJX2N-D32 CJX2N-D38
~ 4P - -   - CJX2N-D25   - -
 -4P - -   - CJX2N-D25   - -

 new LC1 D / CJX2 telemecanique contactornew LC1 D / CJX2 telemecanique contactornew LC1 D / CJX2 telemecanique contactornew LC1 D / CJX2 telemecanique contactornew LC1 D / CJX2 telemecanique contactornew LC1 D / CJX2 telemecanique contactornew LC1 D / CJX2 telemecanique contactornew LC1 D / CJX2 telemecanique contactornew LC1 D / CJX2 telemecanique contactornew LC1 D / CJX2 telemecanique contactor
