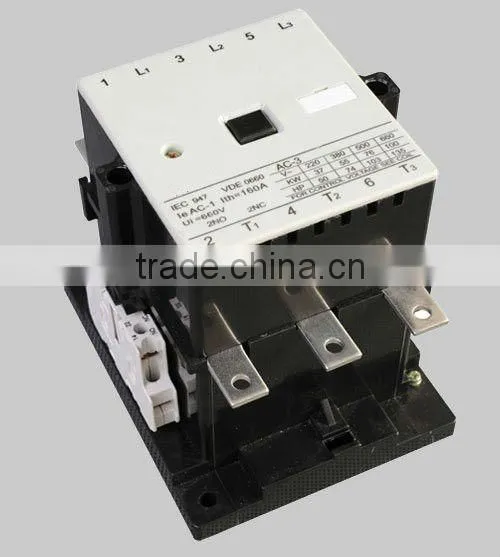

CJX1/3TF-55 300A AC Contactor From China

CJX1/3TF-55 300A AC Contactor From China thumbnail-1
CJX1/3TF-55 300A AC Contactor From China photo-1
US$ 1 - 200 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GWIEC
Model Number:
CJX1/3TF-55 300A
Contact Supplier Request Quote Chat Now
Yueqing Geenwich Imp And Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GWIEC
Model Number CJX1/3TF-55 300A
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, 110~660V
Main Circuit Rating Current Other, 0~630A



Specifications



1.Current:up to 630A
2.Voltage:up to 660v
3.Can install contact blocks
4.Long life-span
5.3TF Motor Protective Contactor



3TF series AC contactor are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They form electromagnetic starters with suitable thermal overload or phase-failure. They are made according to IEC 60947, BS 5424 & VDE 0660.

The contactor is a straight motion mechanism having double breaking contacts. The auxiliary contacts are arranged NO.2NC at most, it is employed the flexible locking connection between the contact support and core, three are no arcisolated panel in the Ie≤22A contactor. In the In≥32A contactors. Three are moulded arc-chute with arc-isolated panel, because all contacts are made of high cnonfusibility and against corrosion silver alloy. All series products can be mounted by screw, Ie≤32A contactor also by installation rail.





  CJX1/3TF-55 300A AC Contactor from China

Stye

GK 3TF44

GK 3TF45

GK 3TF46

GK 3TF47

GK 3TF48

GK 3TF49

GK 3TF50

GK 3TF51

GK 3TF52

GK 3TF53

GK 3TF54

GK 3TF55

GK 3TF56

Rated Insulation Voltage, Ue

680V

690V

                                 1,000V

Rated Current, Ie (380V) A

AC-3

32

38

42

63

75

85

110

140

170

205

250

300

400

AC-4

15.6

18.5

24

28

34

42

54

68

75

96

110

125

150

Motor Power, 50Hz, kW

AC-3

230/220V

8.5

11

15

18.5

22

26

37

43

55

64

78

93

125

400/380V

15

18.5

22

30

37

45

55

75

90

110

132

160

200

500V

21

25

30

41

50

59

76

98

118

145

178

210

284

690/660V

23

23

39

55

67

67

100

100

156

156

235

235

375

1000V

-

-

-

-

39

39

65

65

90

90

132

132

150

AC-4

400/380V

7.5

9

12

14

17

21

27

35

38

50

58

66

81

690/660V

13

15.5

20

24

29

36

46

60

66

86

100

144

140

Mechanical Life

10x106

Electrical Life

AC-3

1.2x106

AC-4

0.2x106

Conventional Heating Current (A)

55

55

 90

90

100

100

160

160

210

220

300

300

400

Pick-up Voltage of Coil

                                                       (0.8-1.1)Ui

Weight (kg)

0.68

0.68

1.4

1.4

2.3

2.3

3.3

3.3

4.8

4.8

6.2

6.2

8.5





CJX1/3TF-55 300A AC Contactor from China
