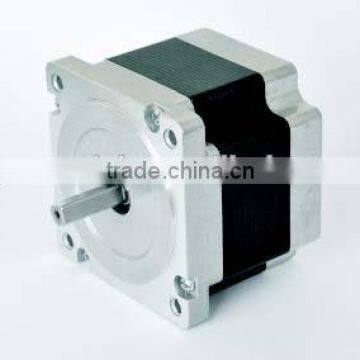

NEMA34 Hybrid Stepper Motor Frame Size 86mm
US$ 6 - 12
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GWIEC
Model Number:
J-8618HB4401
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NEMA34 Hybrid Stepping MotorUS$ 6 - 12MOQ: 50 Pieces -
NEMA14 Hybrid Stepper Motor Frame Size 28mmUS$ 3 - 5MOQ: 50 Pieces
-
NEMA17 Hybrid Stepper MotorUS$ 3 - 5MOQ: 50 Pieces
-
NEMA24 Hybrid Stepper Motor Frame Size 60mmUS$ 5 - 8MOQ: 50 Pieces
-
NEMA34 Hybrid Stepper Motor High TorqueUS$ 6 - 12MOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
GWIEC
Model Number
J-8618HB4401
Usage
Home Appliance, Other
Type
Other, Gear Motor, Hybrid Step Motor
Torque
11 N.m
Commutation
Brushless
Continuous Current(A)
6.0/3.0
Features:
1. High Torque
2. Low Noise
3. Customized Motor
4. Long life span
Specifications:
| Step Angle | 1.8° (±5%@ full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | ≤80K |
| Ambient Temperature | -20°C to 50°C |
| Shaft Radial Play | ≤0.02mm @ 450g-load |
| Shaft Axial Play | ≤0.02mm @ 450g-load |
| Max Radial Force | 75N @ 20mm from flange |
| Max Axial Force | 15N |
| Dielectric Strength | 500VAC for one minute |
| Insulation Resistance | ≥100MΩ, 500VDC |
Product Description
| Model | Holding Torque | Rated Current | Resistance | Inductance | Lead Wire | Rotor Inertia | Weight | Height | ||
| N·m | oz-in | A/Phase | Ω/Phase | mH/Phase | PINS | g.cm2 | oz-in2 | kg(lb) | mm(inch) | |
| J-8618HB1401 | 3.04 | 431 | 6.0 | 0.3 | 2.4 | 4 | 1300 | 7.1 | 1.86(4.1) | 67.5(2.66) |
| J-8618HB1402 | 3.0 | 1.2 | 9.5 | |||||||
| J-8618HB2403 | 6.08 | 861 | 6.0 | 0.46 | 4.7 | 2500 | 13.7 | 3.00(6.61) | 96(3.78) | |
| J-8618HB2401 | 3.0 | 1.85 | 18.6 | |||||||
| J-8618HB3402 | 7.6 | 1076 | 6.0 | 0.62 | 7 | 3700 | 20.2 | 3.95(8.71) | 119.5(4.7) | |
| J-8618HB3403 | 3.0 | 2.48 | 28 | |||||||
| J-8618HB4402 | 9.2 | 1303 | 6.0 | 0.65 | 6.4 | 3900 | 21.3 | 4.18(9.22) | 126(4.96) | |
| J-8618HB4403 | 3.0 | 2.6 | 25.4 | |||||||
| J-8618HB4402 | 11 | 1558 | 6.0 | 0.85 | 10.1 | 5600 | 30.6 | 5.50(12.13) | 156(6.14) | |
| J-8618HB4403 | 3.0 | 3.4 | 40.4 | |||||||
Wiring: Connector / PIN

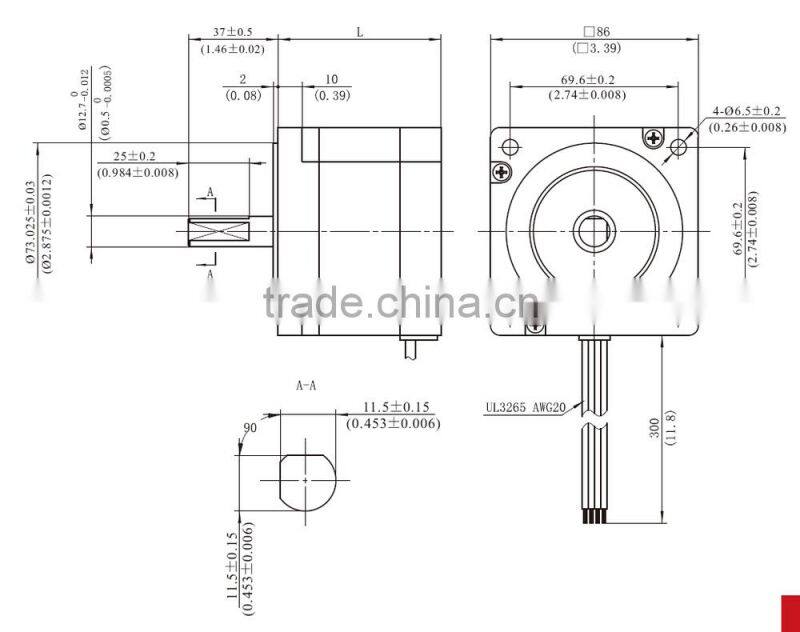

Exterior Diagram
Shaft Type
