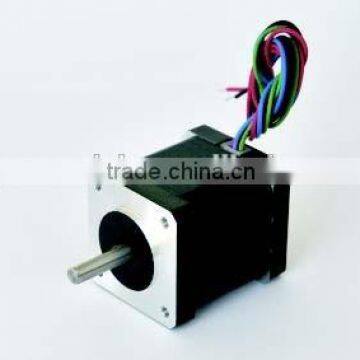

NEMA14 Hybrid Stepper Motor Frame Size 28mm
US$ 3 - 5
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GWIEC
Model Number:
J-3518HB2402
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NEMA17 Hybrid Stepper MotorUS$ 3 - 5MOQ: 50 Pieces -
NEMA24 Hybrid Stepper Motor Frame Size 60mmUS$ 5 - 8MOQ: 50 Pieces
-
NEMA34 Hybrid Stepper Motor High TorqueUS$ 6 - 12MOQ: 50 Pieces
-
NEMA14 Hybrid Stepping Motor Frame Size 28mmUS$ 3 - 5MOQ: 50 Pieces
-
NEMA34 Hybrid Stepping Motor Frame Size 86mmUS$ 6 - 12MOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
GWIEC
Model Number
J-3518HB2402
Usage
Home Appliance, Other
Type
Other, Gear Motor, Hybrid Step Motor
Torque
0.2 N.m
Commutation
Brushless
Continuous Current(A)
0.9
Features:
1. High Torque
2. Low Noise
3. Customized Motor
4. Long life span
Specifications:
| Step Angle | 1.8° (±5%@ full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | ≤80K |
| Ambient Temperature | -20°C to 50°C |
| Shaft Radial Play | ≤0.02mm @ 450g-load |
| Shaft Axial Play | ≤0.02mm @ 450g-load |
| Max Radial Force | 28N @ 20mm from flange |
| Max Axial Force | 10N |
| Dielectric Strength | 500V for one minute |
| Insulation Resistance | ≥100MΩ, 500VDC |
Product Description
| Model | Holding Torque | Rated Current | Resistance | Inductance | Lead Wire | Rotor Inertia | Weight | Height | ||
| N·m | oz-in | A/Phase | Ω/Phase | mH/Phase | PINS | g.cm2 | oz-in2 | kg(lb) | mm(inch) | |
| J-2818HB1401 | 0.07 | 10 | 1.1 | 2.3 | 2 | 4 | 9 | 0.05 | 0.1(0.22) | 30(1.18) |
| J-2818HB1402 | 0.8 | 4.8 | 3.9 | |||||||
| J-2818HB1403 | 0.55 | 9.2 | 8.0 | |||||||
| J-2818HB2401 | 0.1 | 14 | 1.1 | 2.3 | 2.1 | 12 | 0.07 | 0.15(0.33) | 39(1.54) | |
| J-2818HB2402 | 0.8 | 4.7 | 4.2 | |||||||
| J-2818HB2403 | 0.58 | 9.3 | 8.4 | |||||||
| J-2818HB3401 | 0.12 | 17 | 1.1 | 2.4 | 2.4 | 18 | 0.1 | 0.2(0.44) | 50.5(1.99) | |
| J-2818HB3402 | 0.8 | 4.8 | 4.8 | |||||||
| J-2818HB3403 | 0.6 | 9.6 | 9.6 |
Wiring: Connector / PIN

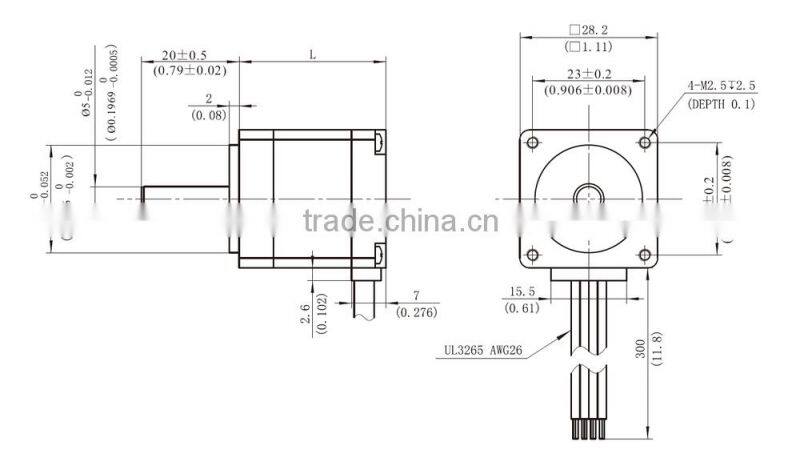

Exterior Diagram
Shaft Type
