Home > Electrical & Electronics > Electric Motor > DC Motor > NEMA24 Hybrid Stepping Motor Frame Size 60mm

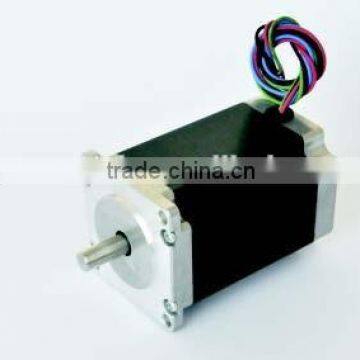

NEMA24 Hybrid Stepping Motor Frame Size 60mm
US$ 5 - 12
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GWIEC
Model Number:
J-6018HB4401
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NEMA23 Hybrid Stepper Motor Frame Size 57mmUS$ 5 - 12MOQ: 50 Pieces -
TDPX Moulded Case Circuit Breaker 125AUS$ 1 - 250MOQ: 500 Pieces
-
HWF Moulded Case Circuit Breaker 226AUS$ 1 - 250MOQ: 500 Pieces
-
HWF Moulded Case Circuit Breaker 126AUS$ 1 - 250MOQ: 500 Pieces
-
HTX Moulded Case Circuit Breaker 250AUS$ 1 - 250MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
GWIEC
Model Number
J-6018HB4401
Usage
Home Appliance, Other
Type
Other, Gear Motor, Hybrid Step Motor
Torque
3.1 N.m
Commutation
Brushless
Continuous Current(A)
2.8
Features:
1. High Torque
2. Low Noise
3. Customized Motor
4. Long life span
Specifications:
| Step Angle | 1.8° (±5%@ full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | ≤80K |
| Ambient Temperature | -20°C to 50°C |
| Shaft Radial Play | ≤0.02mm @ 450g-load |
| Shaft Axial Play | ≤0.02mm @ 450g-load |
| Max Radial Force | 75N @ 20mm from flange |
| Max Axial Force | 15N |
| Dielectric Strength | 500VAC for one minute |
| Insulation Resistance | ≥100MΩ, 500VDC |
Product Description
| Model | Holding Torque | Rated Current | Resistance | Inductance | Lead Wire | Rotor Inertia | Weight | Height | ||
| N·m | oz-in | A/Phase | Ω/Phase | mH/Phase | PINS | g.cm2 | oz-in2 | kg(lb) | mm(inch) | |
| J-6018HB1401 | 1.1 | 156 | 2.8 | 0.85 | 2.4 | 4 | 280 | 1.53 | 0.6(1.32) | 44.5(1.32) |
| J-6018HB1402 | 1.4 | 3.4 | 9.6 | |||||||
| J-6018HB2403 | 1.76 | 249 | 2.8 | 1.25 | 3.8 | 450 | 2.46 | 0.83(1.83) | 54.5(1.56) | |
| J-6018HB2401 | 1.4 | 5 | 15.2 | |||||||
| J-6018HB3402 | 2.2 | 312 | 2.8 | 1.8 | 4.5 | 560 | 3.06 | 1.0(2.2) | 65.5(1.87) | |
| J-6018HB3403 | 1.4 | 7 | 18 | |||||||
| J-6018HB4402 | 3.1 | 439 | 2.8 | 1.9 | 6 | 900 | 4.92 | 1.3(2.87) | 85.5(2.34) | |
| J-6018HB4403 | 1.4 | 7.6 | 24 | |||||||
Wiring: Connector / PIN

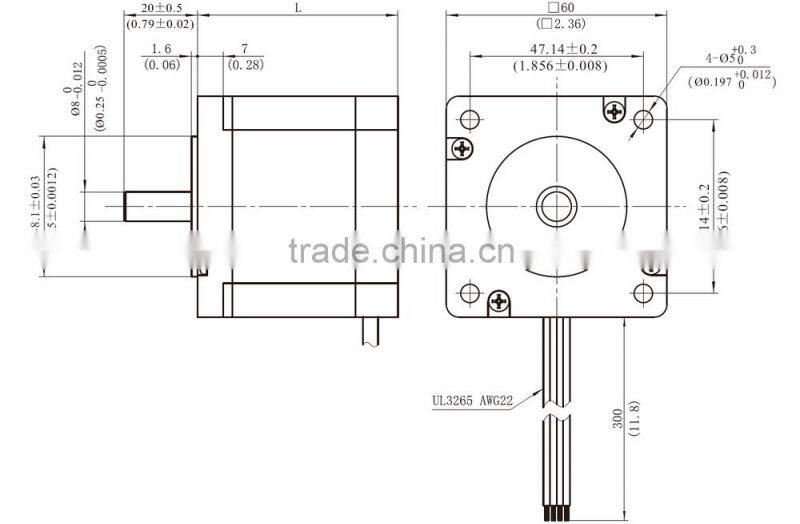

Exterior Diagram
Shaft Type
