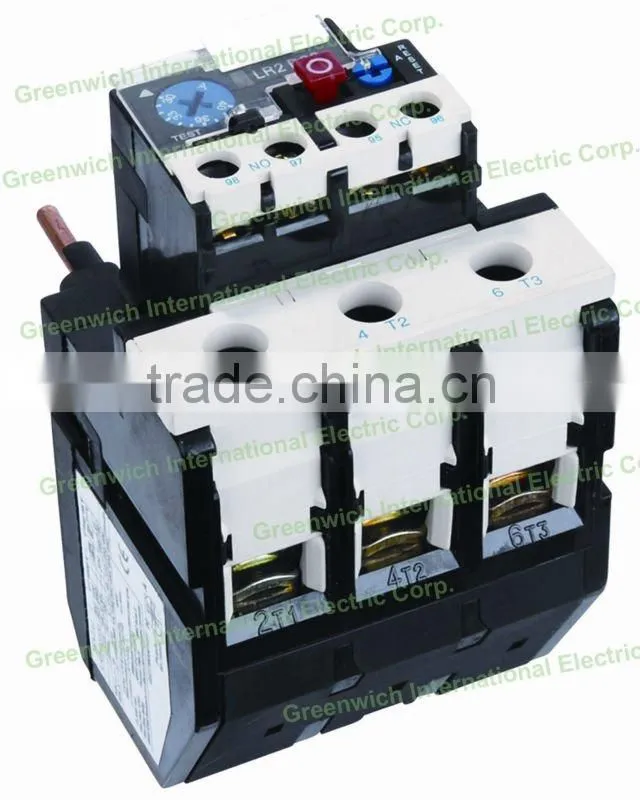

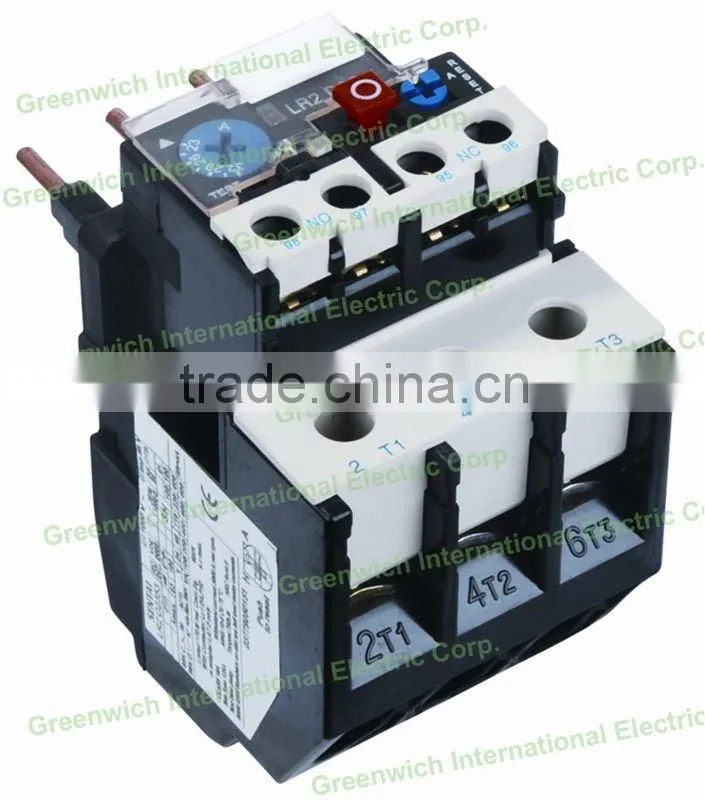

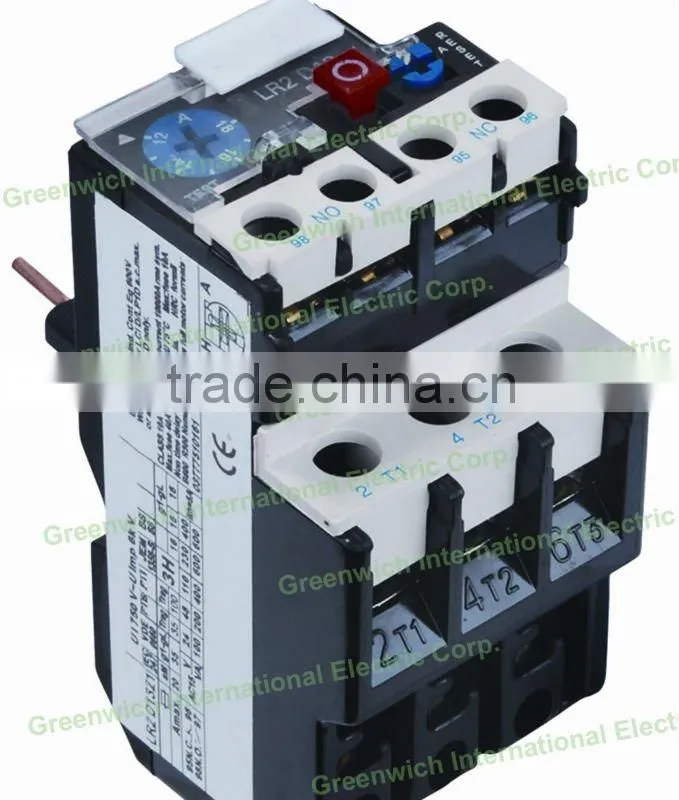

LR2-D13 THERMAL OVERLOAD RELAY 1.6A

Specifications

1.Thermal Relay, Protect Phase Break Relay
2.Rated Insulation Voltage: 660V
3.Rated Current(max): 93A
4.CE & Rohs



Description:

LR2 series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1 - 96A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be plugged in kLCI-D series AC contactor.



Characteristice:

1. Fundamental parameter of the main circuit

• Rated insulation voltage 660V.
• Rated working current 25, 36, 93A separately.
• The regulator seal of rated setting current and setting.
• Current of the thermal component (see list 1)

2. Auxiliary circuit

• There is one pair of NO/and N/C contact with electric insulation.
• Rated insulation voltage 500V.
• Rated frequency 50-60Hz.
• Use group, rated working voltage, appoint thermal current and rated current.

Specification:



Type	Rated working current of thermal relay		Thermal component
			Rated current (A)	Rated or scale of rated current (A)
LR2-D13	25	LR2-D1301	0.2	0.10-0.16
		LR2-D1302	0.3	0.16-0.25
		LR2-D1303	0.4	0.25-0.40
		LR2-D1304	0.6	0.40-0.63
		LR2-D1305	1.0	0.63-1.0
		LR2-D1306	1.6	1.0-1.6
		LR2-D13X6	2.0	1.25-2.0
		LR2-D1307	2.5	1.6-2.5
		LR2-D1308	4.0	2.5-4.0
		LR2-D1310	6.0	4.0-6.0
		LR2-D1312	8.0	5.5-8.0
		LR2-D1314	10.0	7.0-10.0
		LR2-D1316	13.0	9.0-13.0
		LR2-D1321	18.0	12.0-18.0
		LR2-D1322	25.0	17.0-25.0
LR2-D23	36	LR2-D2353	32.0	23.0-32.0
		LR2-D2355	36.0	28.0-36.0
LR2-D33	93	LR2-D3353	32.0	23.0-32.0
		LR2-D3355	40.0	30.0-40.0
		LR2-D3357	50.0	37.0-50.0
		LR2-D3359	65.0	48.0-65.0
		LR2-D3361	70.0	55.0-70.0
		LR2-D3363	90.0	63.0-80.0
		LR2-D3365	93.0	80.0-93.0
