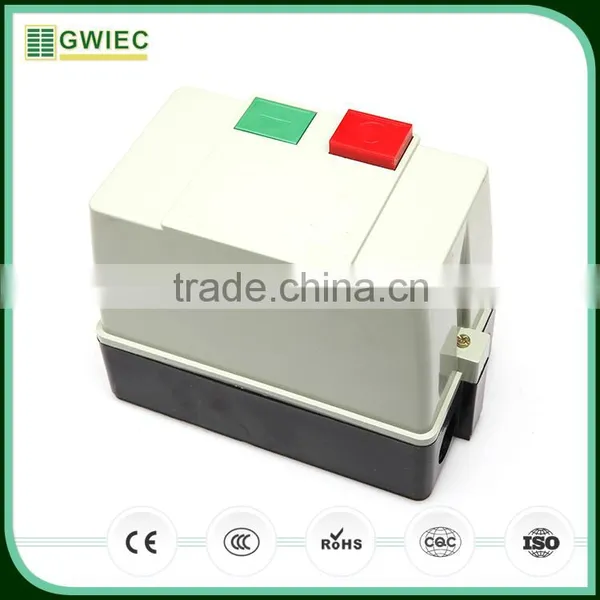

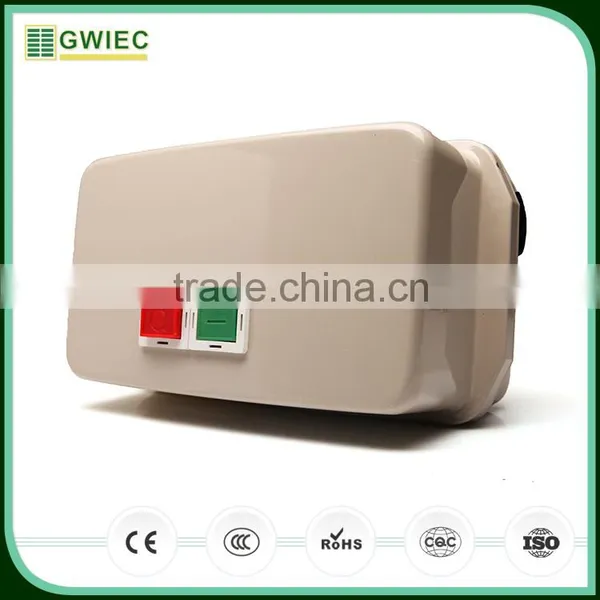

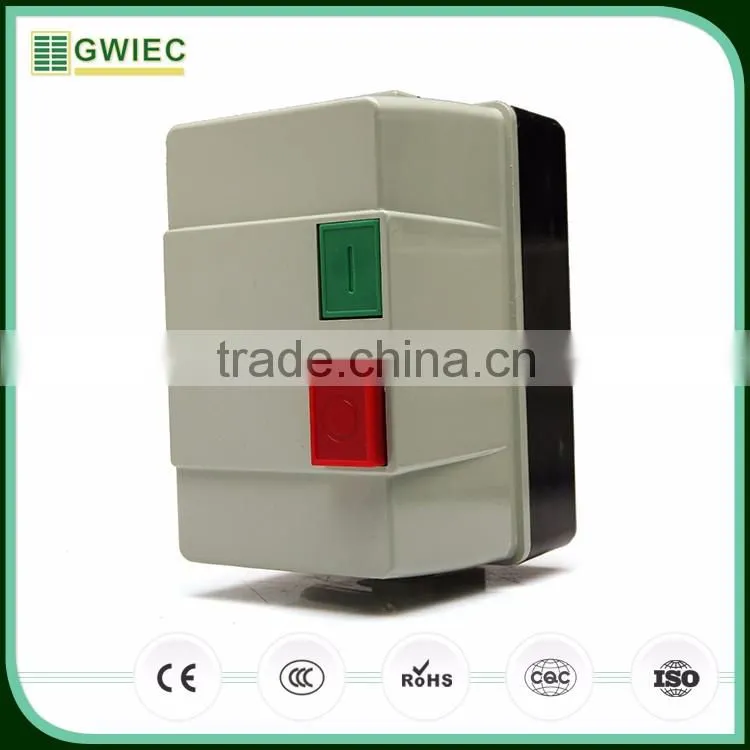

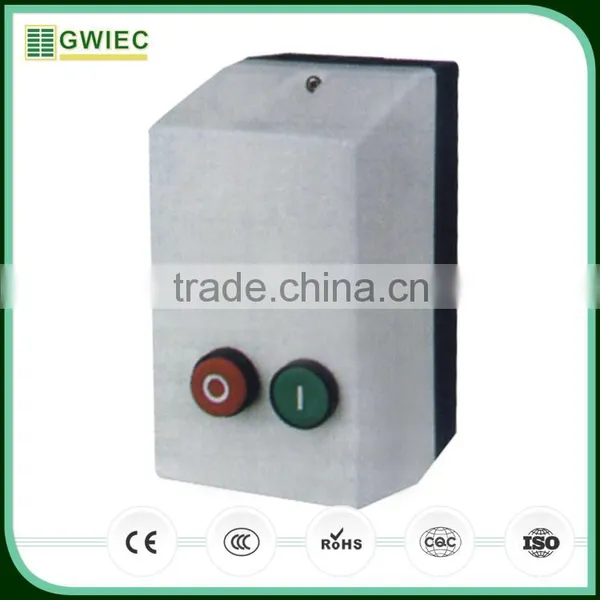

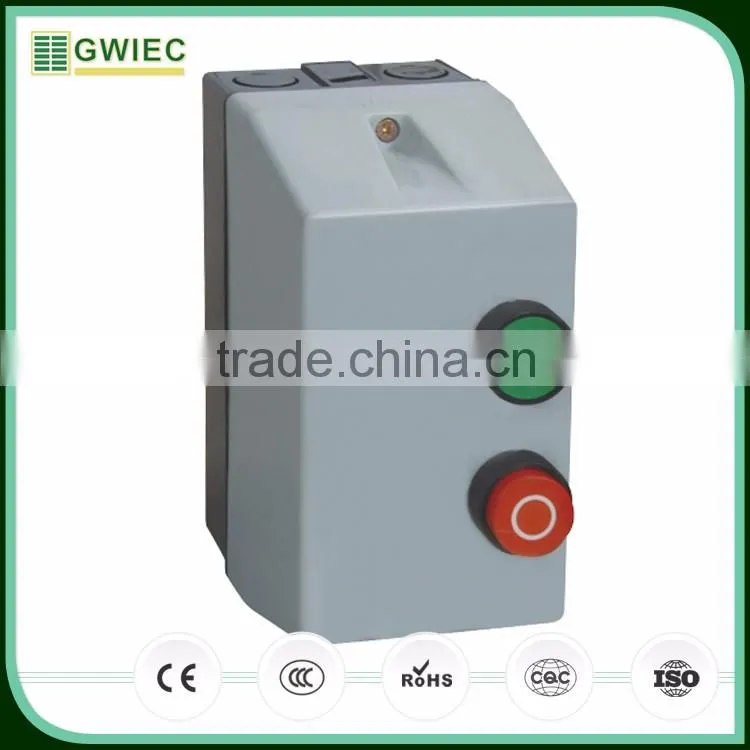

GWIEC World Best Selling Products Le1-D Series 80A Electro Magnetic Motor Starter
Application:
- LE-D Series magnetic starter is mainly applied to circuit of AC 50 or Hz.voltage 550V for far distance making and breaking circuit and frequently starting and controlling motor
- It has the features small volume,light weight,low power consumption,high efficiency safe and reliable performance
- It complies to IEC947-4-1
Specification:
| Type |
Rated Current(A) |
Maximum Power AC3 duty (KW) | SuitableThermal Relay(A) | |||||
|
220V 230V |
380V 400V |
415V | 440V | 500V |
660V 690V |
|||
| LE-D09 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | LR2 D1312 LR2 D1314 |
| LE-D12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | LR2 D1316 |
| LE-D18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | LR2 D1321 |
| LE-D25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 |
LR2 D1322 LR2 D2353 |
| LE-D32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | LR2 D2355 |
| LE-D40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 |
LR2 D3353 LR2 D3355 |
| LE-D50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 |
LR2 D3357 LR2 D3359 |
| LE-D65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | LR2 D3361 |
| LE-D80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 |
LR2 D3363 LR2 D3365 |
| LE-D95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | LR2 D3365 |

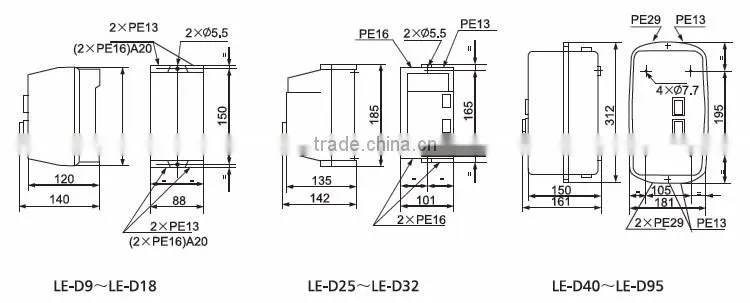

outline and mounting dimension:

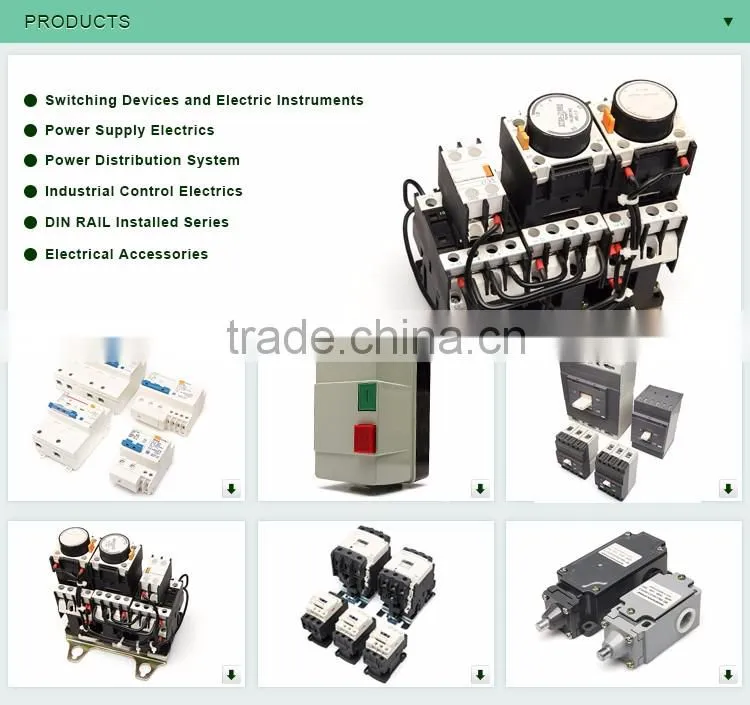

GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates.
GWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South America, Russia, Asia etc.
1.Could I put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2.Should I pay extra for logo printing ?
> Normally usd 0.017/per color,according to the actual situation.
3.How about the quality ?
> Acquire the CE & SGS Certification.
> 100% QC in produce process and before package.
4.Could I buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition
5.How much for 1pc sample ?
>Some cheap ones may free for 1pcs but need to see the actual stock.
6.If I have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7.How long to make a sample?
> 2-5 days which depends on the samples' complexity.
8.Is the sample fee refundable or not?
> Sure, refundable once order confirmed.
With more than 15 years OEM experience, we can provide professional solutions for customers.
