C45N Mini Circuit Breaker 3P DZ47-63

C45N Mini Circuit Breaker 3P DZ47-63 thumbnail-1
C45N Mini Circuit Breaker 3P DZ47-63 thumbnail-2
C45N Mini Circuit Breaker 3P DZ47-63 photo-1

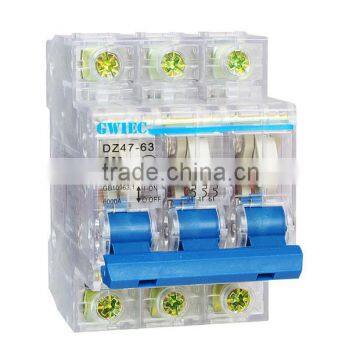

C45N Mini Circuit Breaker 3P DZ47-63 photo-2
US$ 0.1 - 3 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GWIEC
Model Number:
DZ47-63
Contact Supplier Request Quote Chat Now
Yueqing Geenwich Imp And Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GWIEC
Model Number DZ47-63
Type Mini
Poles Number 3



Product Description








3p 63 amp dz47

Electrical Features

Standard



IEC/EN60898-1

Rated Current In

A

63 80 100 125

Poles



1P 2P 3P 4P

Rated Voltage Ue

V

230/400

Insulation Voltage Ui

V

500

Rated Frequency

Hz

50/60HZ

Rated Breaking Capacity

A

10000

Rated Impulse Withstand Voltage(1.2/50)Uimp

V

6000

Dielectric Test Voltage At And Ind. Freq For 1 Min

Kv

2

Pollution Degree



2

Themo-Magnetic Release Characteristic



B C D

Mechanical Features

Electrical Life



8000

Mechanical Life



20000

Contact Position Indicator



Yes

Protection Degree



IP20

Reference Temperature Of Setting Of Thermal Element

°C

30

Ambient Temperature(With Daily Average ≤35°C)

°C

-5~+40

Storage Temperature

°C

-25.+70

Installation

Terminal Connection Type





Terminal Size Top/Bottom For Cable

Mm² Awg

25

18-3

Terminal Size Top/Bottom For Busbar

Mm² Awg

25

18-3

Tightening Torque

N*M IN-IBS

3.0

22

Mounting



On Din Rail Fn60715(35mm) By Means Of Fast Clip Device

Connection



From Top And Bottom

Type

Rated C

urrent (A)

 Pole No. Voltage (V) Breaking capacity (A)
B 1,2,3,4,6,10,16 1 230/415 6000/45000
20,25,32,40A 2,3,4 400
50,63A 1 230/415 4500/3000
2,3,4 400
C 1,2,3,4,6,10,16 1 230/415 6000/45000
20,25,32,40A 2,3,4 400
50,63A 1 230/415 4500/3000
2,3,4 400
D 1,2,3,4,6,10,16 1 230/415 4500/3000
20,25,32,40A 2,3,4 400
Weight(g) 1P 2P 3P 4P
102 208 308 408
