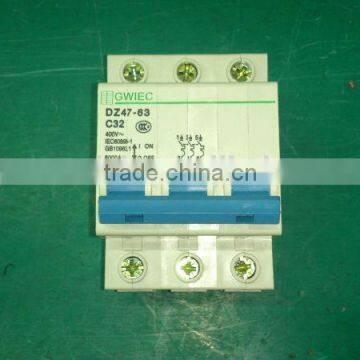

DZ47-63 MCB Breaker 3P

Specifications

DZ47 MCB Mini Circuit Breaker
1.Apperance strcuture
2.Excellent performance
3.Good Quality & Price
4.OEM & ODM available

Product Introduction:

C45N/ DZ47 series circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neote ric in structure, light i n weight, reliable and excellent in performance. lt has high breaki ng capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off swit ching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.



Specifications:

Model	DZ47-63 MCB

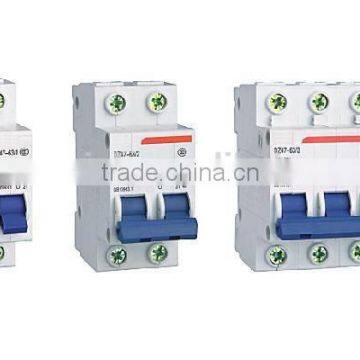

Number of poles	1P,2P,3P,4P
Rated Current(In)	1,2,3,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un)	AC230(240)/400(415)V
Rated Frequency	50(60)HZ
Curve	B,C,D
Short-circuit breaker capacity(Cn)	6000A
Magnetic releases	B curve: between 3and 5 In        C curve: between 5and 10In        D curve: between 10 and 14In
Endurance	>4000
Terminal protection	IP20



Characteristic Curve:

Dimension:



Assebling Line & QC:





---

---
