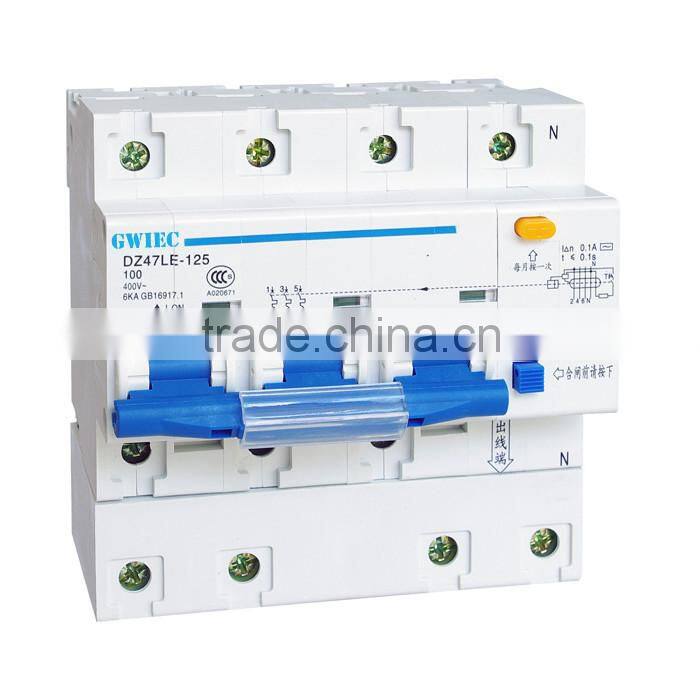

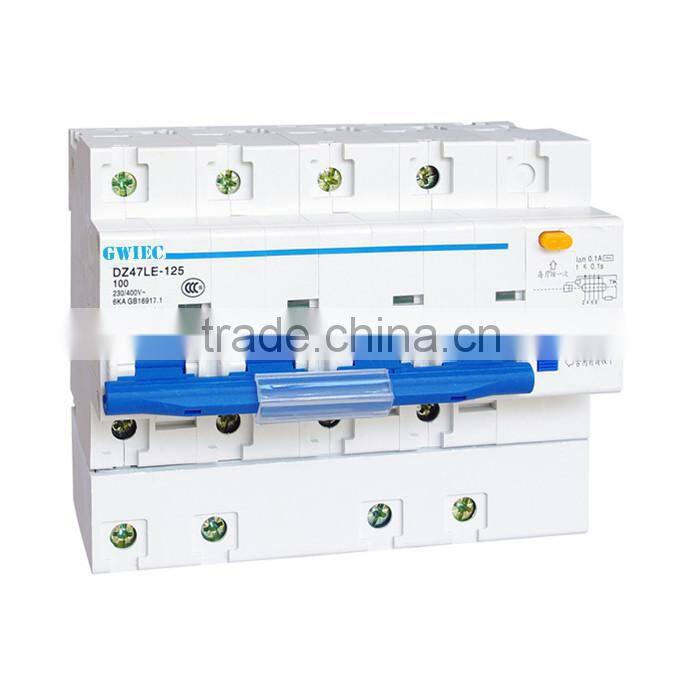

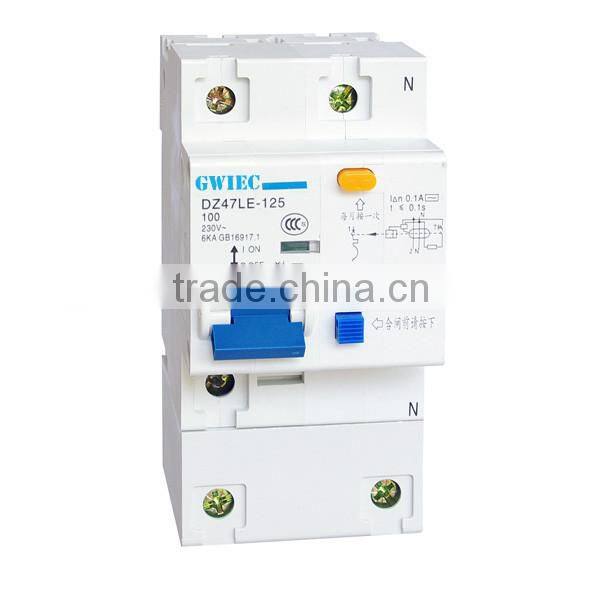

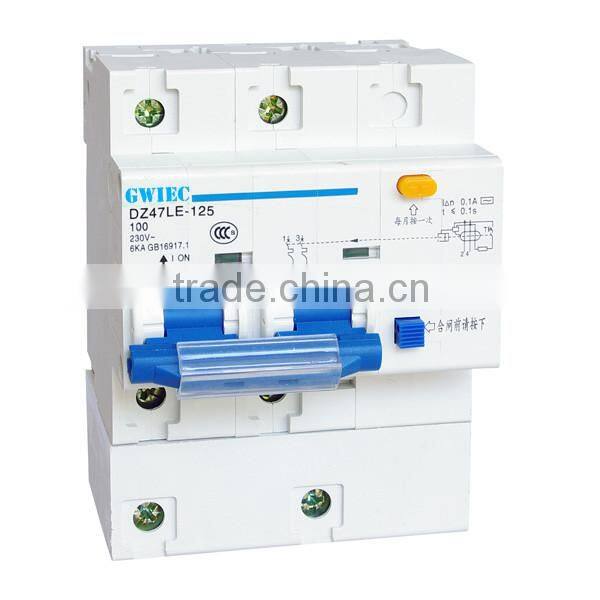

Help Center1 Pole DZ47LE-100 DZ47LE-125 RCCB
Related Products
1.DZ47LE-125 high beaker mini circuit breaker is applied in the circuit of AC 50/60HZ,rated voltage 400V,rated current 125A,.
2.It has advanced structure,reliable performance, high breaking capacity,appearance beautiful and small.
3.Shell by insulation and insulation parts,high impact resistance and flame retardant materials.
4.It mainly used in office buildings, residential buildings and similar lighting,power distribution lines and equipment overload, short circuit protection ,can also be used in normal circumstances,for the use of lines do not frequent transformation.
5.With overload and short circuit protection,under normal circumstances as line not frequent conversion with operation ,with functions of isolation.
| ndard | lEC/EN61009-1 |
| Poles | 1P,2P,3P,4P |
| Type(wave form of the earth leakage sensed) | AC |
| Thermo-magnetic release characteristic | C,D |
| Rated sensitivity lΔn | 0.03A,0.05A,0.1A,0.3A |
| Rated residual making and breaking capacity lΔm | 500(ln<63A)630(ln=63A) |
| Rated short-circuit capacity lcn | 3000/4500A |
| Break time under lΔn | ≤0.1s |
| Rated impulse withstand voltage(1.2/50)Uimp | 4000V |
| Dielectric test voltage at ind.Freq.for 1min | 2KV |
| lnsulation voltage Ui | 500V |
| Electrical life | 2000t |
| Mechanical life | 2000t |
| Contact position indicator | Yes |
| Protection degree | lP20 |
| Ambient temperature(with daily average≤35°c) | -5~+40°c |
| Storage temperature | -25~+70°c |
| Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable |
25mm² 18-3AWG |
| Terminal size top/bottom for busbar |
25mm² 18-3AWG |
| Tightening torque |
2N*m 18ln-lbsm |
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device |
