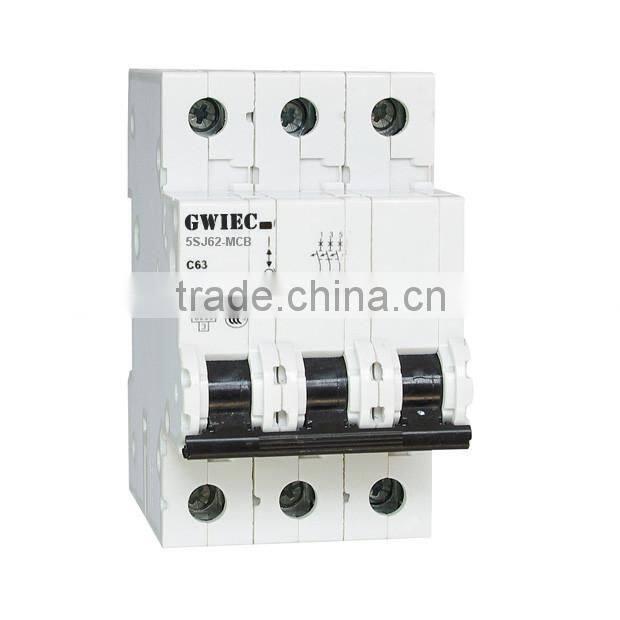

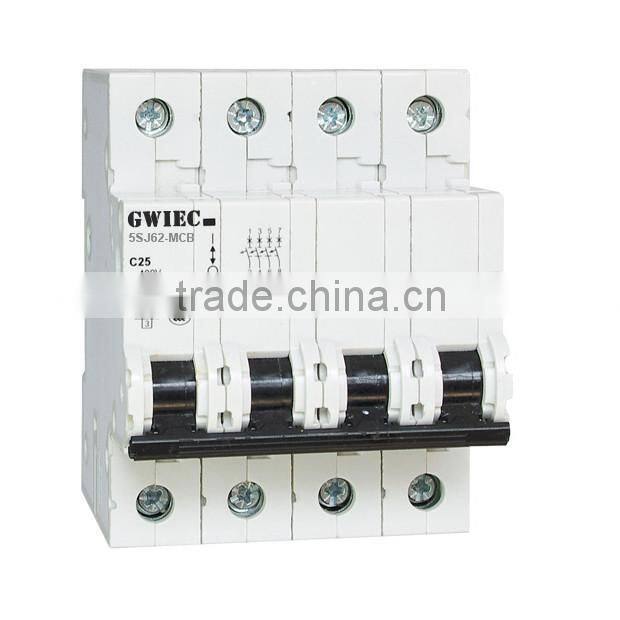

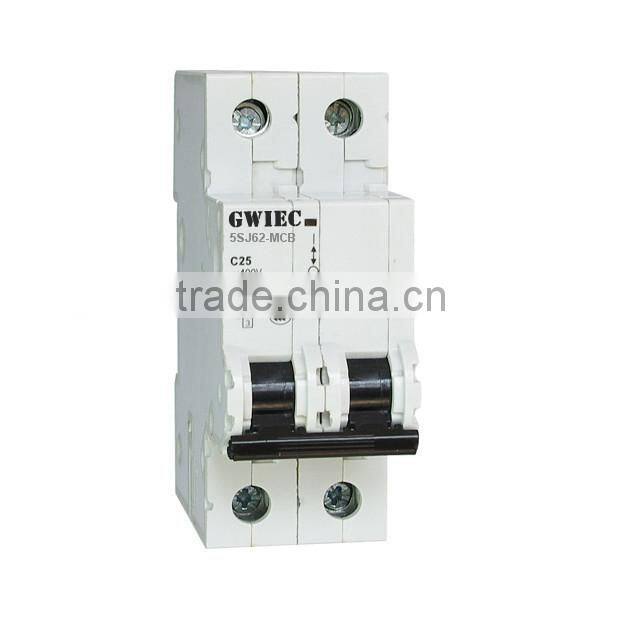

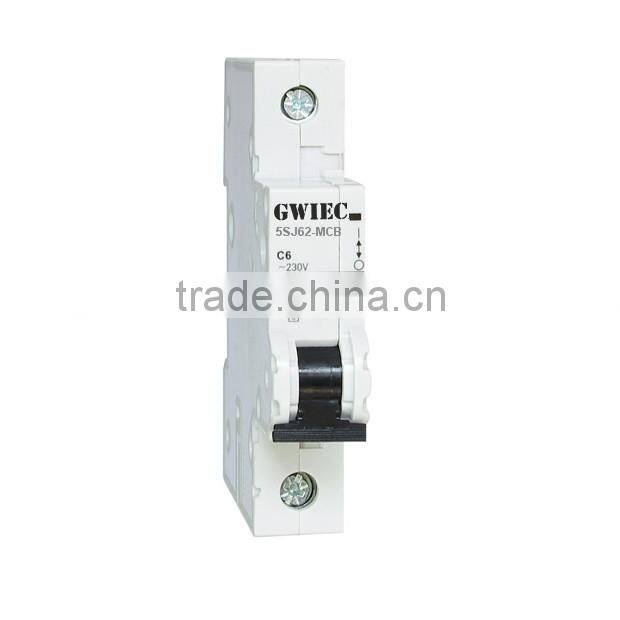

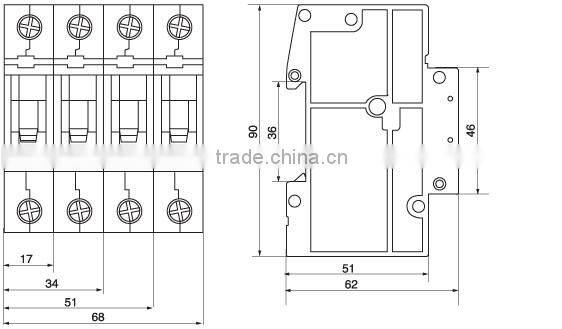

5SJ62 series miniature circuit breaker is mainly suitable for overload and short circuit protection. It is especially used for illumination and distribution in industry and commerce. It is of pleasing out-look, light weight, reliable performance, high breaking capacity, etc. Its frame and parts adopt plastics of high inflammable resistance and shock resistance for long service life. It is mainly used for overload and short circuit protection within the circuit of AC 50/60 Hz, rated voltage of single pole up to
230V, two, three or four poles up to 400V. It can also be used for an unfrequent switchover of the circuit and illumination under normal conditions.
Pole No:1,1P+N,2,3,3P+N,4
Rated voltage:AC 230/400V
Ultimate short-circuit capacity(lcu):6KA
Rated frequency:50/60Hz
Energy limiting class:3
Rated impulse withstand voltage:6.2KV
Electro-mechanical endurance:6000
Connection terminal:
-Screw terminal
-Pillar terminal with clamp
Connection capacity:Rigid conductor up to 25mm2
Fastening torque:2.0Nm
Installation:
-On symmetrical DIN rail 35mm
-Panel mounting
Terminal Connection Height:19mm
| Electrical Properties | Rated current | 6/10/16/20/25/32/40/50/63A |
| Rated operating voltage | 230/400VAC | |
| Nominal Frequency | 50/60Hz | |
| Breaking capacity | 3000-10000A | |
| Operating temperature | -5°C - 40°C | |
| Degree of Protection | IP20 | |
| Conductor cross section (minimum allowable) | 25mm² | |
| Minimum number of power moves | 6000 | |
| Minimum number of mechanical operations | 20000 | |
| Operation curve | B/C/D | |
| Type Of Assembly | FOR RIEL DIN 35mm | |
| Features | MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current ( Type B ), 10 to 14 times rated current ( Type D ) | |
| BIMETAL: ensures the breaker trip when overloaded. | ||
| ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit. | ||
| Testing For Acceptance | Before receiving the circuit breakers (breakers), customers may perform the tests may be necessary to ensure compliance with the technical specifications. | |
| Packing | The packaging is sure that withstand any adverse conditions during transport and handling to the warehouse of customers | |
1,Take 1 Pole as an example.
12 Pcs in 1 Carton,20 Cartons in 1 Box
2,In default,White blank Carton & Exporting 5-layer Hard Box
We can also design the Carton/Box according to your opinion
Please tell me the selection codes before ask for our offer.Thanks for your sincere cooperation.
5 S J 6 1 01 C
5 - No.
S- Mini Circuit Breaker (Small)
J - Model Code
1 - 1 Pole
01 - 1 Amp
C - C Curve
