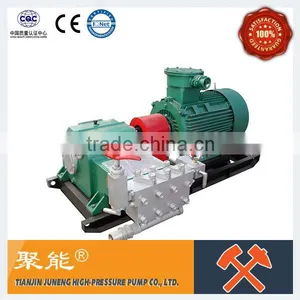

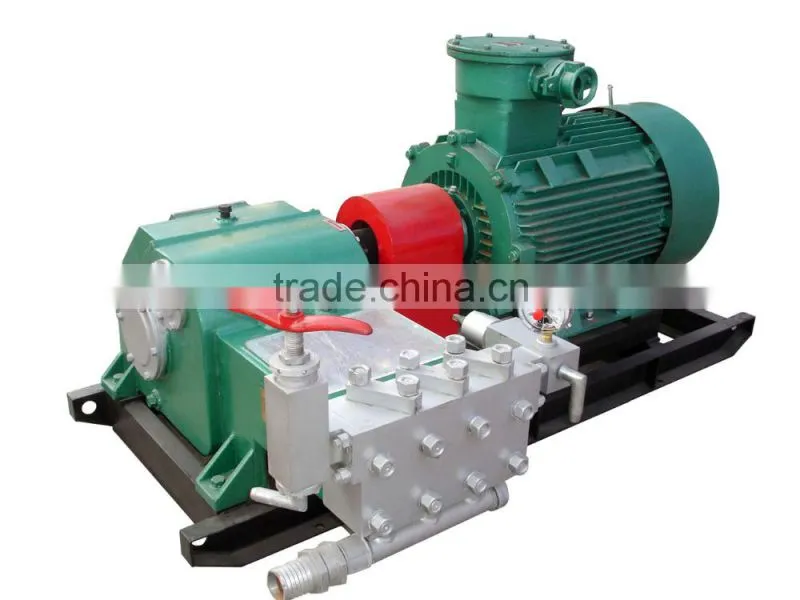

Series 2 of Pump for Coal Mine 3ZSB
This product has compact structure and smaller volume. The fluid end adopts the integrated pump head, and the Power end adopts
needle bearing transmission, can operate 24h continuously without cooling. It is suitable for water injection for coal seam in the coal
mine, hydraulic prop(It also can be used to transport emulsion) and so on with a stable pressure and low noise.
Model |
Rated Capacity (L/min) |
Rated Discharge Pressure(MPa) |
Plunger Diameter (mm) |
Stroke Length (mm) |
Matching Motor Power(kW) |
| 3ZSB70/28-37 | 70 | 28 | 30 | 100 | 37 |
| 3ZSB95/21.5-37 | 95 | 21.5 | 35 | 100 | 37 |
| 3ZSB123/16.5-37 | 123 | 16.5 | 40 | 100 | 37 |
| 3ZSB156/12-37 | 156 | 12 | 45 | 100 | 37 |
| 3ZSB70/35-45 | 70 | 35 | 30 | 100 | 45 |
| 3ZSB95/26-45 | 95 | 26 | 35 | 100 | 45 |
| 3ZSB123/20-45 | 123 | 20 | 40 | 100 | 45 |
| 3ZSB156/16-45 | 156 | 16 | 45 | 100 | 45 |
| 3ZSB70/42-55 | 70 | 42 | 30 | 100 | 55 |
| 3ZSB95/32-55 | 95 | 32 | 35 | 100 | 55 |
| 3ZSB123/25-55 | 123 | 25 | 40 | 100 | 55 |
| 3ZSB156/19.5-55 | 156 | 19.5 | 45 | 100 | 55 |
| 3ZSB95/44-75 | 95 | 44 | 35 | 100 | 75 |
| 3ZSB123/34-75 | 123 | 34 | 40 | 100 | 75 |
| 3ZSB156/25-75 | 156 | 25 | 45 | 100 | 75 |
| 3ZSB170/23-75 | 170 | 23 | 47 | 100 | 75 |
| 3ZSB80/62-90 | 80 | 62 | 32 | 100 | 90 |
| 3ZSB95/50-90 | 95 | 50 | 35 | 100 | 90 |
| 3ZSB123/40-90 | 123 | 40 | 40 | 100 | 90 |
| 3ZSB156/30-90 | 156 | 30 | 45 | 100 | 90 |
| 3ZSB170/28-90 | 170 | 28 | 47 | 100 | 90 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
One-year warranty
Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority.
Service hotline & hotmail is provided for customers real time consulting.
Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers.
We provide on-site technical service at home and abroad.
