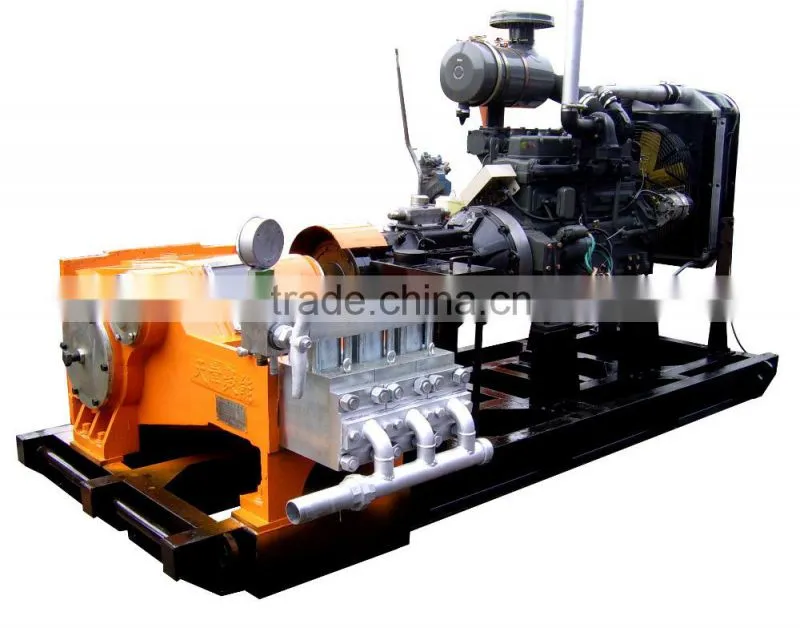

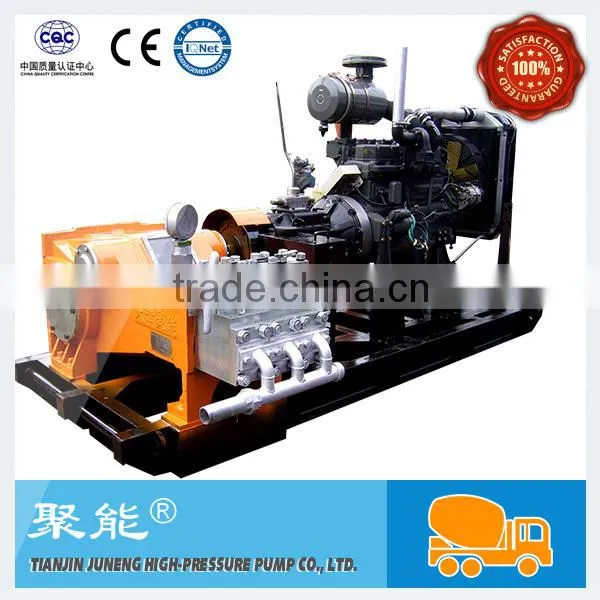

High Pressure Diesel Engine Gearbox Slurry Pump
This grouting pump is designed to meet the market requirement. The fluid end of the product adopts the combined split-type pump head,
the power end adopts needle bearing transmission,which can operate 24h continuously with low temperature rise and noise. It is applied
to foundation treatment of high-pressure jet grouting, curtain grouting, earth- retaining cofferdam, mines plugging, protecting wall of the shaft, slope anchorage and other fields.
Grouting Inlet Dimensions 2”
Grouting Outlet Connection Dimensions M39×2
Plunger Diameter(mm) |
45 | 50 | ||
Gears |
Theoretical Capacity (L/min) |
Rated Discharge Pressure (MPa) |
Theoretical Capacity (L/min) |
Rated Discharge Pressure (MPa) |
| I | 50 | 45 | 62 | 40 |
| II | 87 | 45 | 107 | 40 |
| III | 144 | 32 | 178 | 26 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
One-year warranty
Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority.
Service hotline & hotmail is provided for customers real time consulting.
Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers.
We provide on-site technical service at home and abroad.
