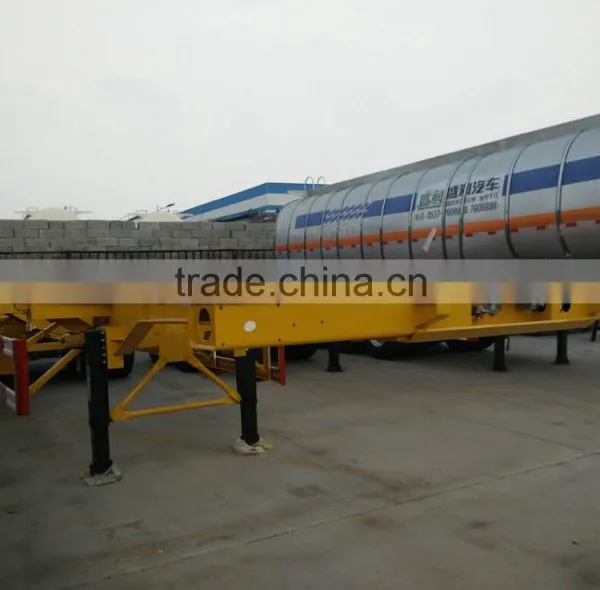

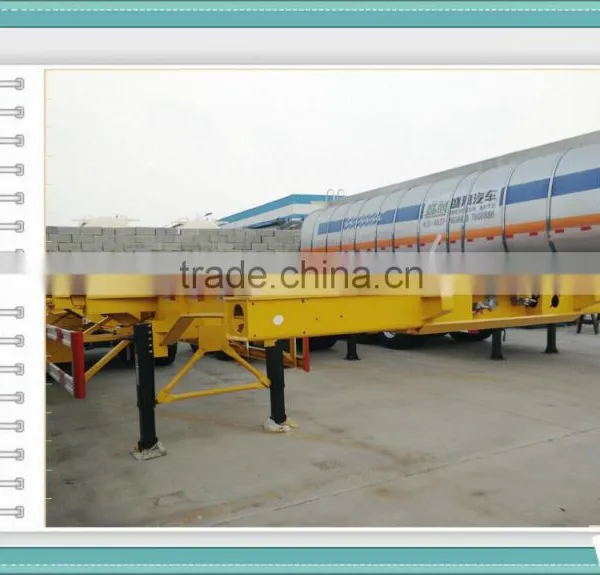

Container Semitrailer China Manufacture 2 Alxe 20ft

Name: Container Semitrailer China Manufacture 2 Alxe 20ft
Brand: China time go
SKU: 112254423
Availability: InStock

US$ 14,000 - 17,000 MOQ: 1 Unit

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, ISO9001,2000,CCC

Weihai King-Life Sports Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, ISO9001,2000,CCC

Size 14200*2500*1470

OEM No. 3708322800116

Max Payload 60T

Place of Origin Shandong, China

Brand Name China time go

Model Number CTYFJS12 2 axle 20ft

Specifications

:2 axle 20ft container semi trailer
2.usage:20ft container
3.axle number:2
4.from:china manufacturer
5.capacity:40

What is specifications of 2 axle 20ft container semi trailer ?

Gross Weight	About 5.5 tons or 3.2 tons
Outer side dimension (mm)	12450 × 2490 × 1557 (three or two axles) 40FT 7160 × 2490 × 1557 (two axles) 20FT
Loading Capacity (Ton)	45 T
AXLES	13 T /PER , FUWA Brand, BPW Brand, or Huajing Brand
Tire	12.00R22.5 or 315/80R22.5 China Brand or According to Customer requirement
Rim	9.00-22.5 China Brand
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
ABS	Optional
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	Transport by bulk cargo carrier, RORO or 40HQ container.
