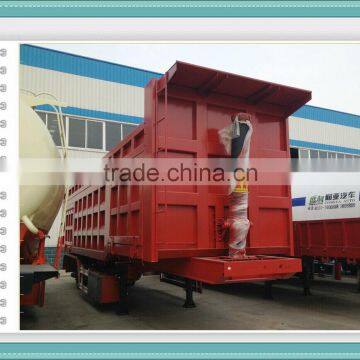

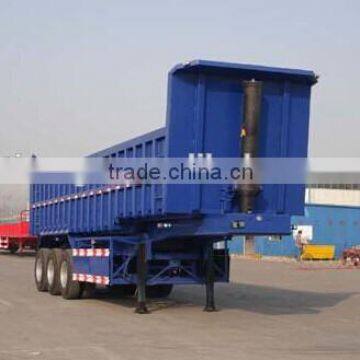

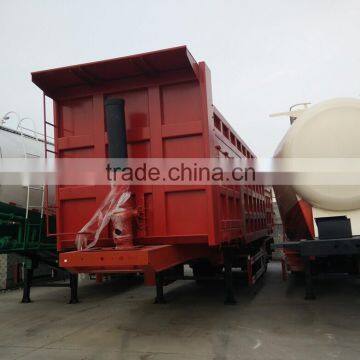

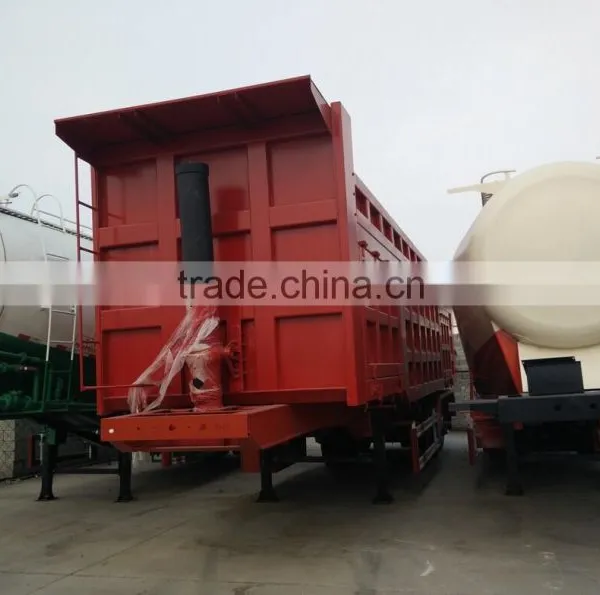

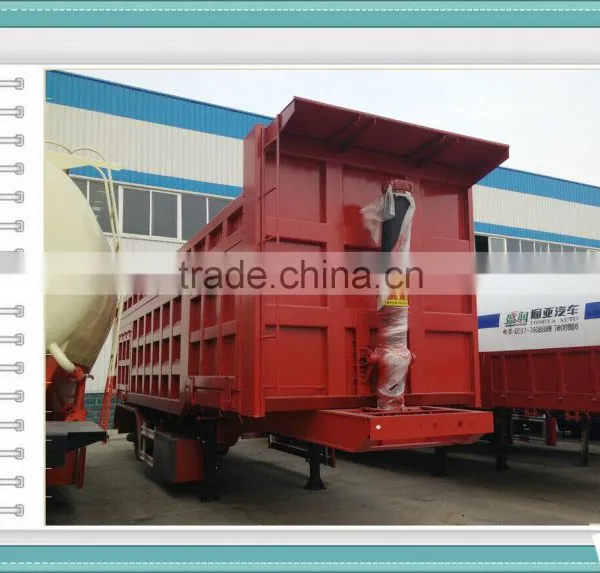

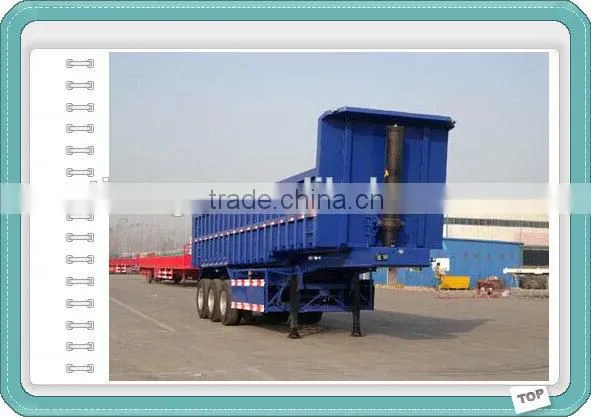

Time Go 3axles 40m3 Dump Semi Trailer

Main Dimensions

Dimension

9200*2400*3200mm ( outside)

9000*2200*1500mm (work space )

Tare weight

About 10000KGS

Total Volume(m³)

30 m³ or less than 50tons

Side wall thickness(mm)

2.3mm Q235 steel (three or five door opening door )

Bottom plate thickness(mm)

3mm diamond plate /Q235 steel

Lifting system

Full set of Hydraulic Lifting system (Four diameter125 lifting cylinder, and one diameter140 lifting cylinder.)

Chassis

Main Beams

Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel

Axle

3 axles, FUWA/HUAJING brand   13tons or 16tons per axles

Landing Gear

JOST (D200T)or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/ America type /

Leaf Spring

90(W)mm*13(Thickness)mm*10 Layer

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber; 2 pieces of 45L air tanks.

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box

Shipping Terms

By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
