iptv Set Top Box home strong iptv
Configuration :
1.Android 4.4.2 operating system.
2.Cortex A7 Main Frequency 1.2GHz.
3.DDRIII Memory(2gb) Flash Memory: MLC 8GB.
4.Support MPEG4, H.264, AVS Full 1080P HD Decode.
5.Support HDMI 1.4 CVBS Output.
6.Support PVR to external USB HDD storage device.
7.Support HTML5, HLS. HTTP, multicast UDP / RTP
8.Support updating by USB device and SD Card.
9.Support Android Mobile Phone, IPAD controling the Box.
10.Internal WiFi.Ethernet:10/100 Mbit / s.
MPEG Transport Stream & A/V Decoding :
Video modes:
· UHD H.264 2160p video decoding
· Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264,etc.
· H.264 High Profile 1080p@30fps or 720p@60fps encoding
· 3840x1080@30fps 3D decoding, BD/SBS/TAB/FP supported
· 3840x1080@30fps 3D encoding
· Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
.1080i,1080p,720p,576p,PAL,NTSC
Audio Formats:
. MP3, MPA, M4A, WMA (optional), Ogg, WAV,AC3,AAC
Image formats:
. JPEG, PNG, BMP, GIF,RAW
Display:
· Integrated LVDS/RGB/CPU LCD interface 1280x800 resolution
· Integrated HDMI1.4 1920x1080@60fps
Camera:
· Supports 0.3M/1.3M/2M/5M CMOS sensor
· Supports 8/10/12-bit YUV/Bayer sensor
HawkView ISP:
· Static and dynamic defect pixel correction, and lens shading correction
· Anisotropic non-linear Bayer interpolation with false color suppression
· Programmable color correction, dynamic range compression and contrast enhancement
· Advanced spatial de-noise filter
· AE/AF/AWB
· Anti-flick detection
Memory:
· 32-bit DDR3/DDR3L/LPDDR3/LPDDR2 controller
· 8-bit NAND Flash controller with 64-bit ECC
PMIC:
· PMIC AXP221s
· 21-CH power output and 2.2A Flash charging
· Comply with USB 3.0 power supply standard
Audio:
· Two sets of I2S/PCM interfaces for Baseband and Bluetooth
· Two integrated differential analog MIC for headset and phone
· Integrated digital MIC interface
· Dedicated headphone/speaker/receiver outputs
· Two-channel audio ADC with 96dBA SNR
· Two-channel audio DAC with 100dBA SNR
OS:
· Supports Android 4.1/4.2 and above
· Compatible with Microsoft Windows 8
Port &Interface:
& DC*1 .
& USB 2.0 *2.
& ETHERNET*1 (10/100Mbit).
& HDMI*1.
& CVBS, L, R*1
& wifi*1
Power Supply:
Input Voltage AC 100V ~ 240V, 50Hz ~ 60Hz
Power DC 5V-2A
Accessories:
Remote Control /1 pc
AV Cable /1 pc
HDMI Cable /1pc
Adaptor 5V-2A/ 1pcs
WiFi adapte /1pcs

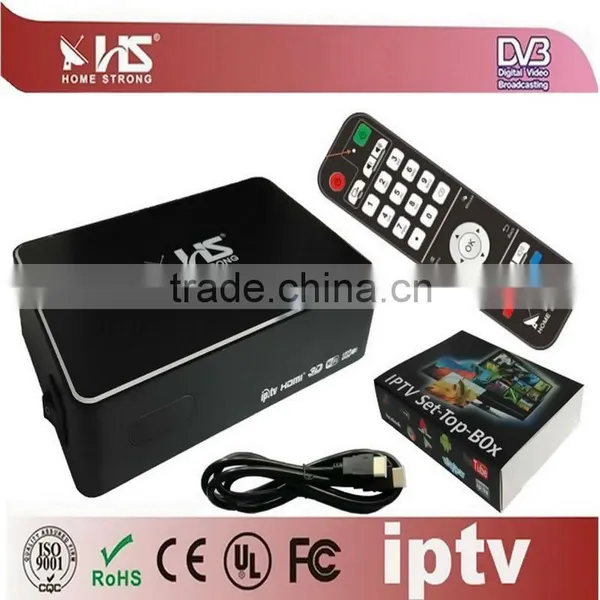

Product Photos :
