Home Strong IPTV

Configuration :

1.Android  4.4.2 operating system.
2.Cortex  A7 Main  Frequency  1.2GHz.
3.DDRIII Memory(2gb)  Flash  Memory: MLC 8GB.
4.Support MPEG4,  H.264, AVS  Full 1080P HD  Decode.
5.Support HDMI 1.4 CVBS  Output.
6.Support PVR  to  external USB HDD  storage  device.
7.Support HTML5, HLS. HTTP, multicast UDP / RTP
8.Support updating by USB device and SD Card.
9.Support  Android  Mobile  Phone, IPAD   controling  the Box.
10.Internal  WiFi.Ethernet:10/100 Mbit / s.
MPEG Transport Stream & A/V Decoding :

Video modes:

· UHD H.264 2160p video decoding

· Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264,etc.

· H.264 High Profile 1080p@30fps or 720p@60fps encoding

· 3840x1080@30fps 3D decoding, BD/SBS/TAB/FP supported

· 3840x1080@30fps 3D encoding

· Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols

.1080i,1080p,720p,576p,PAL,NTSC
Audio Formats:
. MP3, MPA, M4A, WMA (optional), Ogg, WAV,AC3,AAC
Image formats:
. JPEG, PNG, BMP, GIF,RAW

Display:

· Integrated LVDS/RGB/CPU LCD interface 1280x800 resolution

· Integrated HDMI1.4 1920x1080@60fps

Camera:

· Supports 0.3M/1.3M/2M/5M CMOS sensor

· Supports 8/10/12-bit YUV/Bayer sensor

HawkView ISP:

· Static and dynamic defect pixel correction, and lens shading correction

· Anisotropic non-linear Bayer interpolation with false color suppression

· Programmable color correction, dynamic range compression and contrast enhancement

· Advanced spatial de-noise filter

· AE/AF/AWB

· Anti-flick detection

Memory:

· 32-bit DDR3/DDR3L/LPDDR3/LPDDR2 controller

· 8-bit NAND Flash controller with 64-bit ECC

PMIC:

· PMIC AXP221s

· 21-CH power output and 2.2A Flash charging

· Comply with USB 3.0 power supply standard

Audio:

· Two sets of I2S/PCM interfaces for Baseband and Bluetooth

· Two integrated differential analog MIC for headset and phone

· Integrated digital MIC interface

· Dedicated headphone/speaker/receiver outputs

· Two-channel audio ADC with 96dBA SNR

· Two-channel audio DAC with 100dBA SNR

OS:

· Supports Android 4.1/4.2 and above

· Compatible with Microsoft Windows 8

Port &Interface:

& DC*1 .
& USB 2.0 *2.
& ETHERNET*1 (10/100Mbit).
& HDMI*1.
& CVBS, L, R*1

& wifi*1

Power Supply:

Input Voltage   AC 100V ~ 240V, 50Hz ~ 60Hz
Power    DC 5V-2A

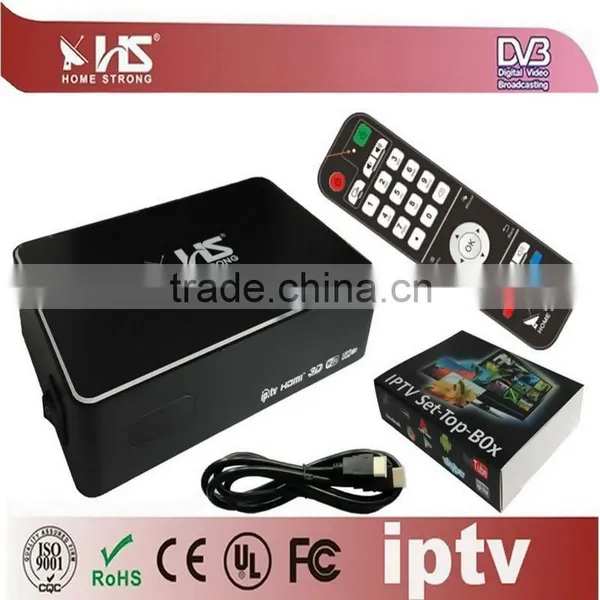

Accessories:

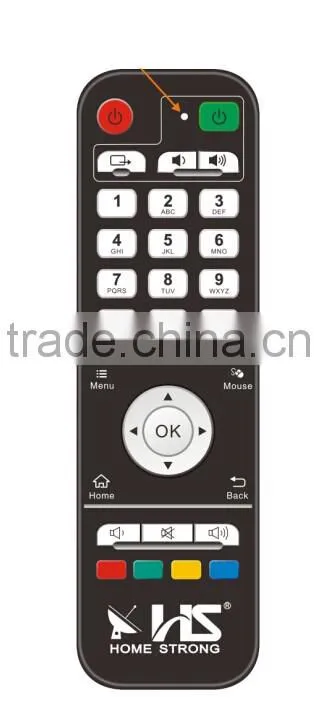

Remote Control /1 pc
AV Cable  /1 pc
HDMI Cable /1pc
Adaptor 5V-2A/ 1pcs

WiFi adapte /1pcs

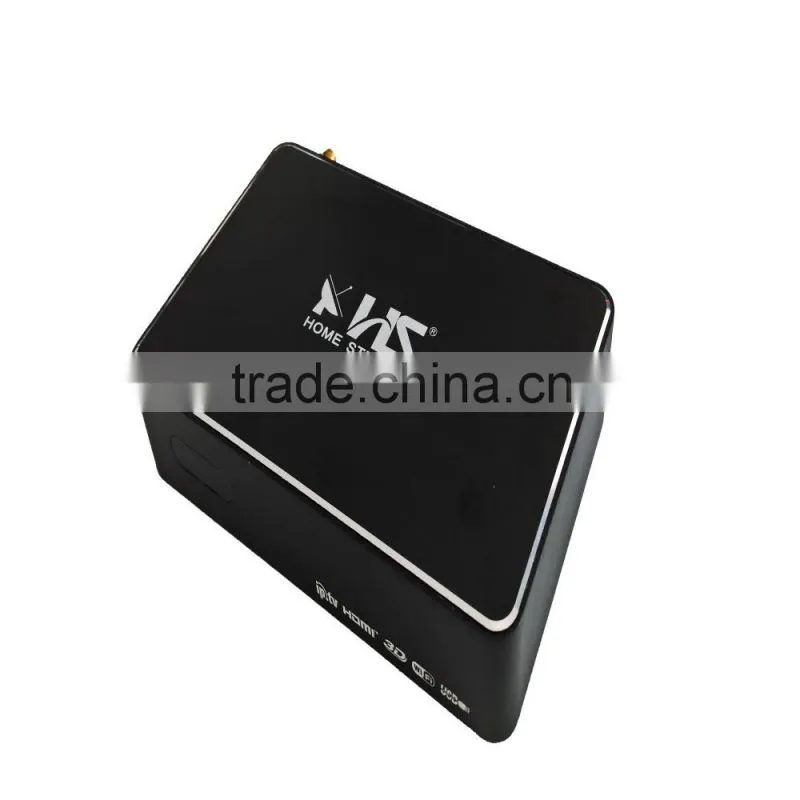

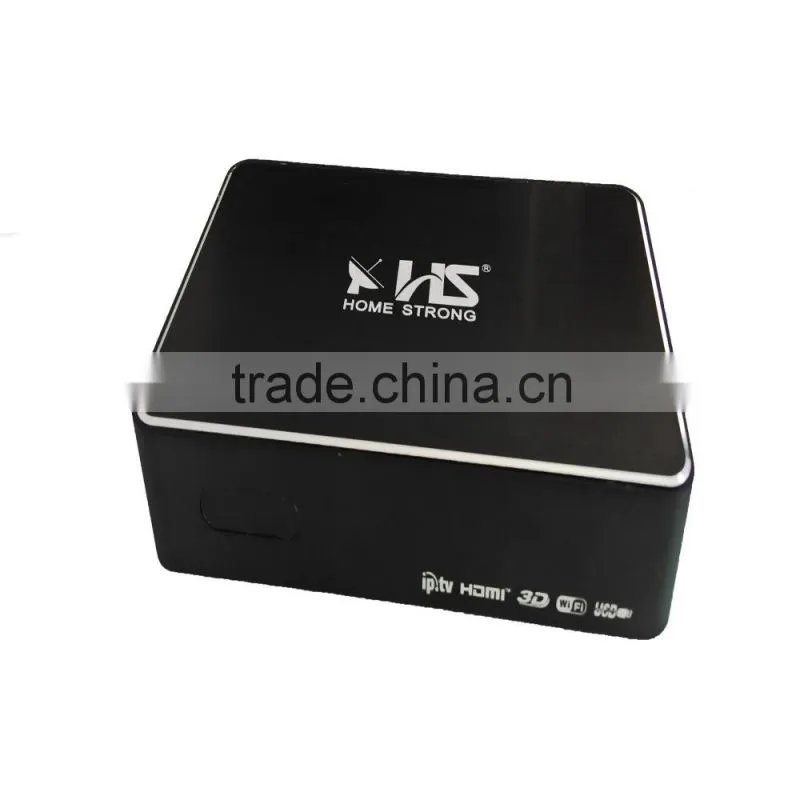

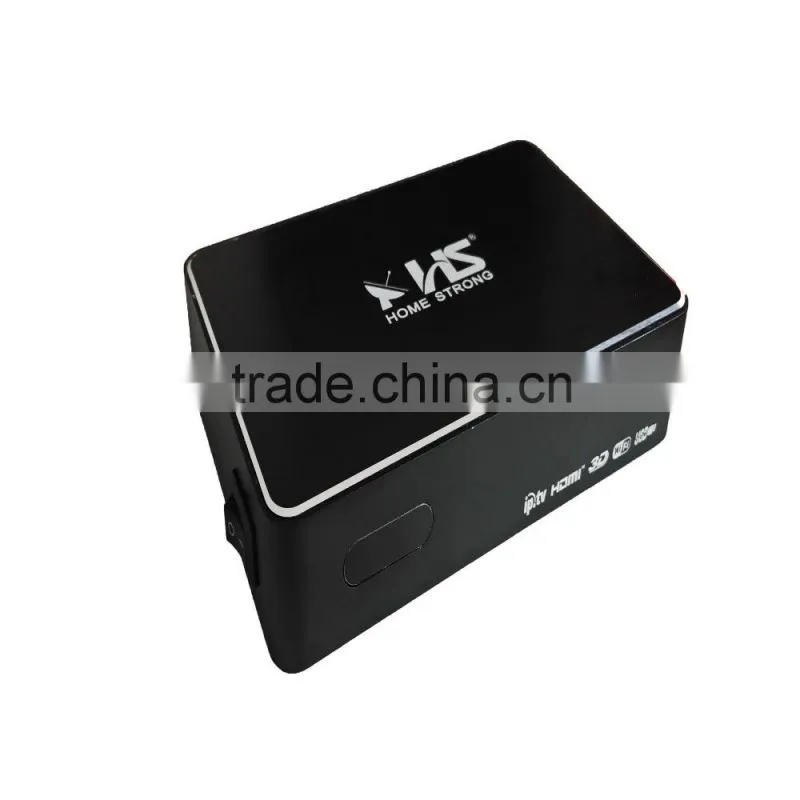

Product Photos :
