switched capacitor inverter, AC filter capacitor, AKMJ-MC series
• Aluminum round housing package, Sealed with epoxy resin;
• Copper nut / screw leads, insulated plastic cover positioning, easy installation;
• Large capacity, small size;
• Resistance to high voltage, with self-healing;
• High ripple current, high dv / dt withstand capability.

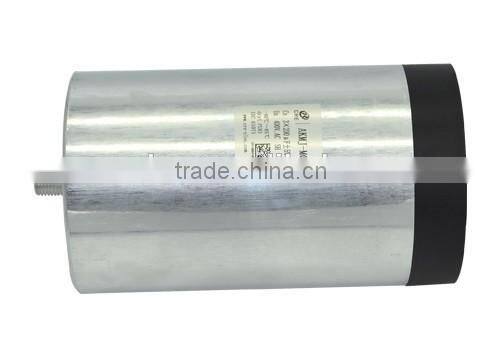

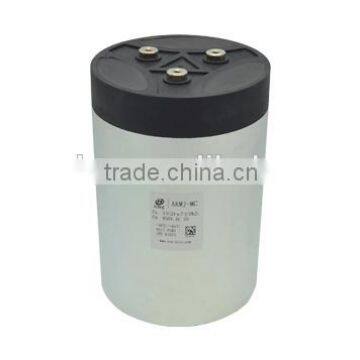

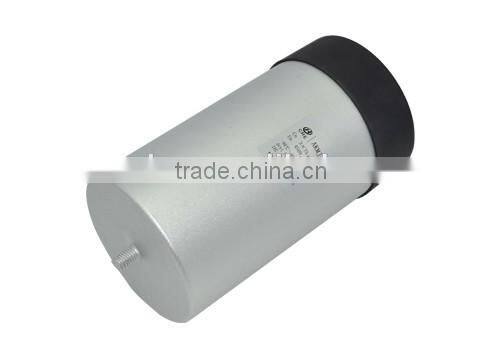

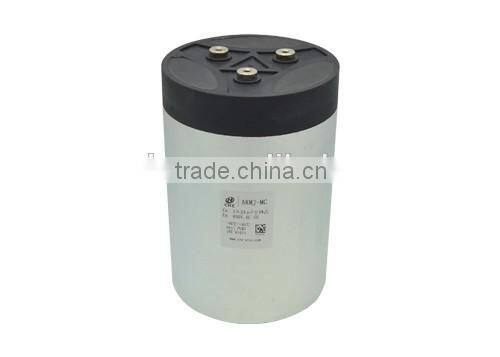

Pictures of switched capacitor inverter, AC filter capacitor, AKMJ-MC series

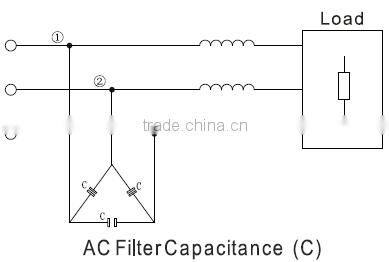

Typical circuit of switched capacitor inverter, AC filter capacitor, AKMJ-MC series

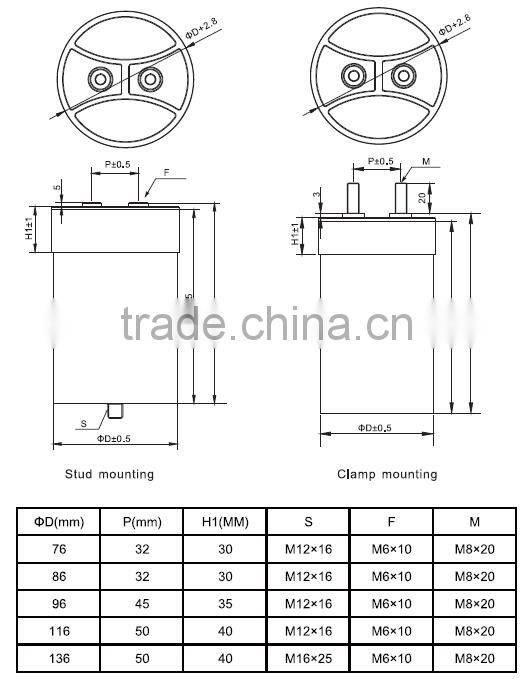

Outline drawing of switched capacitor inverter, AC filter capacitor, AKMJ-MC series
Technical data of switched capacitor inverter, AC filter capacitor, AKMJ-MC series
Operating temperature range | -40 ~ +85℃. Top max: +85℃ |
Capacitance range | 3*40~3*200uF |
Rated voltage | 330~1500V.AC |
Capacitance tolerance | ±5%(J) |
Withstand voltage | 2.15Un/10S |
Dissipation factor | tgδ<=0.002 f=100Hz |
Insulation resistance | Rs X C>=10000S (at 20℃ 100V.DC 60s) |
Flame retardation | UL94V-0 |
Reference standard | IEC 61071; IEC 60831 |
More other similar products, please feel free to click Here.
switched capacitor inverter, AC filter capacitor, AKMJ-MC series
• Can replace electrolytic capacitors, better performance and longer life;
• Widely used in power electronic equipment used for the AC filter;
• In the high-power UPS, switching power supply, inverter and other equipment for the AC filter, harmonics and improve power factor control.
Wuxi Chenrui New Energy Technology Co.,Ltd is named CRE for short, which is located in Wuxi, China.As an emerging high-tech enterprise, we can provide customers with high-quality capacitor and reliable solutions to the industry of energy-saving, SVG, electric vehicles, new energy...etc. Our products are mainly used in DC-Link, IGBT absorbing protection, high voltage resonance, coupling, AC filtering and others.
General production processes for switched capacitor inverter, AC filter capacitor, AKMJ-MC series are as follows:
switched capacitor inverter, AC filter capacitor, AKMJ-MC series
Packaging:Cartons, pallets, wooden cases or as customers' requirements.
Shipping day: 15days once we have received the payment.
Shipping way: all express ways(DHL, FedEx, TNT, UPS, EMS and so on),or as customers’ requirements.
Professional degree:Ⅰ.Our R&D chief engineer with over 40 years rich experience in film capacitor field.
Ⅱ. More than ten patents in the capacitor field.
Quality: We make 100% inspection before delivery, which will decrease defective rate of capacitors. We can make sure capacitor with Six Sigma standard.
Price: We are manufacturer with autonomous productions, which can effectively control the cost without middlemen fee.
Capacity:Ⅰ. Machine: Advanced finished product testing and spraying machines, dust-free winding workshop.
Ⅱ. Certificate: ISO-9001,ISO/TS 16949 quality system certificate and more than ten patents in film capacitor field.
Various service: We can provide OEM and ODM service. We have a professional service team, timely feedback your information and can provide good after sales service.
Q : Are you a manufacturer or a trading company ?
A: We are a manufactuer specialized in polypropylene film capacitor.
Q: What's your delivery time?
A : It is about 15-21 days, if your goods required urgent, please contact us firstly.
Q: How about the warranty and after-sales service?
A : Normally, the warranty for the product is one year, warmly reception with the calling, visiting and letters, and give the best answers and solution in time from the customers for the technical problem.
Q: May I have a visit to your company before the order?
A: Of course, warmly welcome to our company, our address is: No.789, NanHu Avenue, NanChang DIST. WuXi City, JiangSu, China.
We have joined the Alibaba Credit Insurance Program.
If we didn't meet the requirements in your contract, A will refund your covered amount.
What are you still waiting for?
If you are interested in switched capacitor inverter, please don't hesitate to contact us with phone, email or live chat. We'll do our best to reply you within 12 hours!!
Amy zhu/Sales
Mobile: +86-18168864986
Skype: live:amouramy0908
Trade Manager: cn1518002377esja
More products, please view the follows:
DC link: in DC-Link circuit for filtering energy storage
AC filter: in power electronic equipment used for the AC filter
IGBT/GTO snubber: in power electronic equipment
Resonance:in power electronic devices in series/parallel resonant circuit
