Metalized Polypropylene Film snubber capacitor design 3000V 6000V 7000V 8000V
• Mylar, Sealed with epoxy resin;
• Copper nut leads;
• Resistance to high voltage, low tg δ, low temperature rise;
• Low ESL and ESR;
• High pulse Current.
Pictures of Metalized Polypropylene Film snubber capacitor design 3000V 6000V 7000V 8000V
Typical circuit of Metalized Polypropylene Film snubber capacitor design 3000V 6000V 7000V 8000V

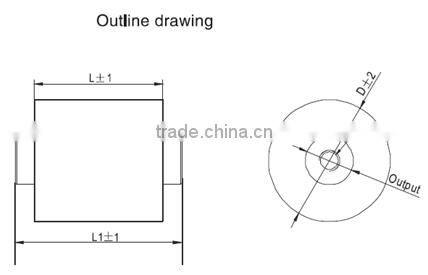

Outline drawing of Metalized Polypropylene Film snubber capacitor design 3000V 6000V 7000V 8000V
Technical data of Metalized Polypropylene Film snubber capacitor design 3000V 6000V 7000V 8000V
Operating temperature range | -40 ~ +85℃. Top max: +85℃ |
Capacitance range | 0.01~3μF |
Rated voltage | 3000V.DC ~ 10000V.DC |
Capacitance tolerance | ±5%(J); ±10%(K) |
Withstand voltage | 1.35Un/10S |
Dissipation factor | tgδ<=0.001 f=1KHz |
Insulation resistance | C<=0.33μF RS>=15000MΩ(at 20℃ 100V.DC) C>0.33μF RS*C>=5000S (at 20℃ 100V.DC) |
Flame retardation | UL94V-0 |
Reference standard | IEC 61071 |
More other similar products, please feel free to click Here.
Metalized Polypropylene Film snubber capacitor design 3000V 6000V 7000V 8000V
•GTO Snubber.
•Widely used in power electronic equipment when the peak voltage, peak current absorption protection.
• For inverter, welding machine, UPS, SVG, etc.
Wuxi Chenrui New Energy Technology Co.,Ltd is named CRE for short, which is located in Wuxi, China.As an emerging high-tech enterprise, we can provide customers with high-quality capacitor and reliable solutions to the industry of energy-saving, SVG, electric vehicles, new energy...etc. Our products are mainly used in DC-Link, IGBT absorbing protection, high voltage resonance, coupling, AC filtering and others.
General production processes for Metalized Polypropylene Film snubber capacitor design 3000V 6000V 7000V 8000V are as follows:
Metalized Polypropylene Film snubber capacitor design 3000V 6000V 7000V 8000V
Packaging:Cartons, pallets, wooden cases or as customers' requirements.
Shipping day: 15days once we have received the payment.
Shipping way: all express ways(DHL, FedEx, TNT, UPS, EMS and so on),or as customers’ requirements.
Professional degree:Ⅰ.Our R&D chief engineer with over 40 years rich experience in film capacitor field.
Ⅱ. More than ten patents in the capacitor field.
Quality: We make 100% inspection before delivery, which will decrease defective rate of capacitors. We can make sure capacitor with Six Sigma standard.
Price: We are manufacturer with autonomous productions, which can effectively control the cost without middlemen fee.
Capacity:Ⅰ. Machine: Advanced finished product testing and spraying machines, dust-free winding workshop.
Ⅱ. Certificate: ISO-9001,ISO/TS 16949 quality system certificate and more than ten patents in film capacitor field.
Various service: We can provide OEM and ODM service. We have a professional service team, timely feedback your information and can provide good after sales service.
Q : Are you a manufacturer or a trading company ?
A: We are a manufactuer specialized in polypropylene film capacitor.
Q: What's your delivery time?
A : It is about 15-21 days, if your goods required urgent, please contact us firstly.
Q: How about the warranty and after-sales service?
A : Normally, the warranty for the product is one year, warmly reception with the calling, visiting and letters, and give the best answers and solution in time from the customers for the technical problem.
Q: May I have a visit to your company before the order?
A: Of course, warmly welcome to our company, our address is: No.789, NanHu Avenue, NanChang DIST. WuXi City, JiangSu, China.
We have joined the Alibaba Credit Insurance Program.
If we didn't meet the requirements in your contract, A will refund your covered amount.
What are you still waiting for?
If you are interested in IGBT/GTO Snubber Capacitors, please don't hesitate to contact us with phone, email or live chat. We'll do our best to reply you within 12 hours!!
