12kV Porcelain High Voltage Cut Out Fuse
US$ 1 - 100
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SR
Model Number:
XM-1
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
35kV Outdoor Power Fuse Types Polymer Fuse Cover CutoutUS$ 1 - 100MOQ: 3 Pieces -
High Voltage Fuse Types XRNP for Transformer ProtectionUS$ 4.5 - 10.5MOQ: 100 Pieces
-
Porcelain High Voltage Fuse for Transformer ProtectionUS$ 4 - 10.5MOQ: 100 Pieces
-
High Voltage Current Limiting FusesUS$ 4 - 10.5MOQ: 100 Pieces
-
Porcelain Housing High Voltage FuseUS$ 4 - 10.5MOQ: 30 Pieces
Place of Origin
Zhejiang, China
Brand Name
SR
Model Number
XM-1
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
Specifications
cut out fuse1.Material Ceramic
2.Rated voltage 12kV
3.Leakage distance 230mm
4.Reasonable price
1.Description
Type: fuse cutout, drop out fuse cutout SRF-1
Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. SRF series mainly protect transformer or lines from short circuit and over load, and on/off loading current.
2. Specification:
Type |
Rated voltage(kV) |
Rated current(kA) |
Breaking current(kA) |
Impulse voltage(BIL) |
Power-frequency withstand voltage(kV) |
Leakage distance(mm) |
Weight(kg) |
Dimension(cm) |
XM-1 |
12 |
100 |
6300 |
110 |
42 |
230 |
7.5 |
41*31*12.5 |
XM-1 |
12 |
200 |
10000 |
110 |
42 |
230 |
8 |
41*31*12.5 |
3. Welcome to contact us to more details. Some details could be ordered according to the requirement of customers.

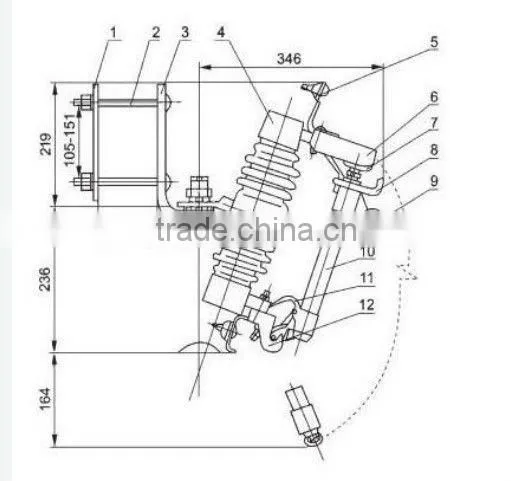

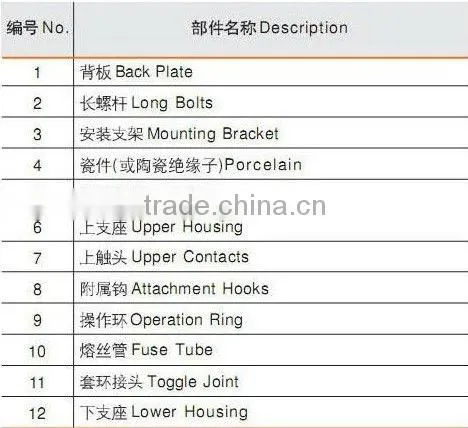

4. Appearance and installation dimensions:
