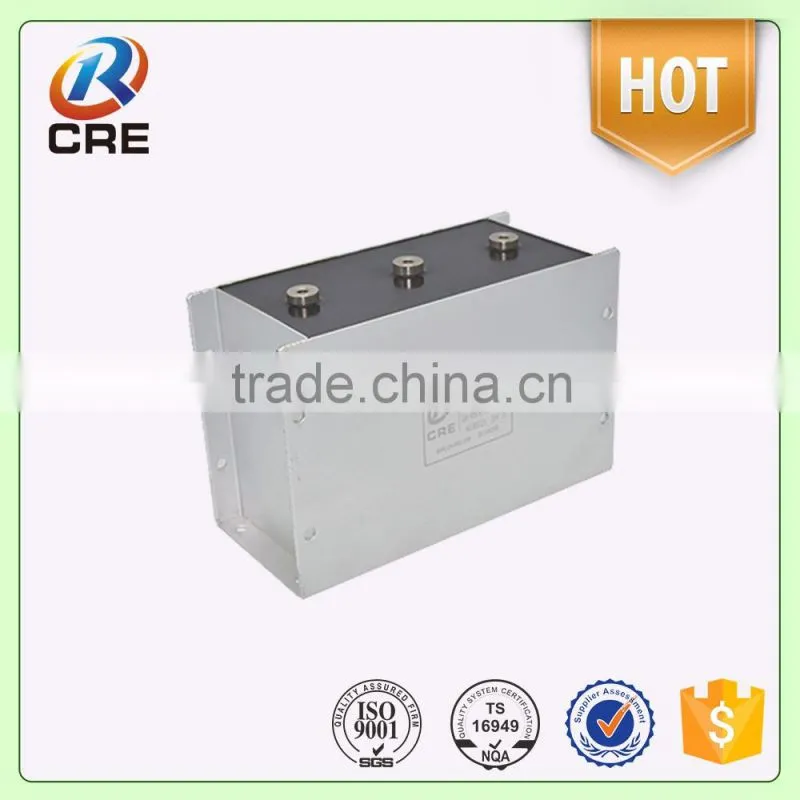

Introduction of filter circuit in rectifier, metalized ac film capacitor
• Metal package, Sealed with epoxy resin;
• Copper nut/screw leads, easy installation;
• Large capacity, small size;
• Resistance to high voltage, with self-healing;
• High ripple current, high dv/dt withstand capability.
Typical circuit of filter circuit in rectifier, metalized ac film capacitor
Outline drawing of filter circuit in rectifier, metalized ac film capacitor
Technical data of filter circuit in rectifier, metalized ac film capacitor
Operating temperature range |
-40 ~ +85℃. Top max: +85℃ |
Capacitance range |
3*40~3*500uF |
Rated voltage |
500~1500V.AC |
Capacitance tolerance |
±5%(J) |
Withstand voltage |
2.15Un/10S |
Dissipation factor |
tgδ<=0.002 f=100Hz |
Insulation resistance |
Measuring |
Flame retardation |
UL94V-0 |
Reference standard |
IEC 61071; IEC 60831 |
Application of filter circuit in rectifier, metalized ac film capacitor
• Can replace electrolytic capacitors, better performance and longer life;
• Widely used in power electronic equipment used for the AC filter;
• In the high-power UPS, switching power supply, inverter, photovoltaic inverter and other equipment for the AC filter, harmonics and improve power factor control.
Professional degree: Ⅰ.Our R&D chief engineer with over 40 years rich experience in film capacitor field.
Ⅱ. More than ten patents in the capacitor field.
Quality: We make 100% inspection before delivery, which will decrease defective rate of capacitors. We can make sure capacitor with Six Sigma standard.
Price: We are manufacturer with autonomous productions, which can effectively control the cost without middlemen fee.
Capacity: Ⅰ. Machine: Advanced finished product testing and spraying machines, dust-free winding workshop.
Ⅱ. Certificate: ISO-9001,ISO/TS 16949 quality system certificate and more than ten patents in film capacitor field.
Various service: We can provide OEM and ODM service. We have a professional service team, timely feedback your information and can provide good after sales service.
Q : Are you a manufacturer or a trading company ?
A: We are a manufactuer specialized in polypropylene film capacitor.
Q: What's your delivery time?
A : It is about 15-21 days, if your goods required urgent, please contact us firstly.
Q: How about the warranty and after-sales service?
A : Normally, the warranty for the product is one year, warmly reception with the calling, visiting and letters, and give the best answers and solution in time from the customers for the technical problem.
Q: May I have a visit to your company before the order?
A: Of course, warmly welcome to our company, our address is: No.789, NanHu Avenue, NanChang DIST. WuXi City, JiangSu, China.
