MULTIFUNCTIONAL HOTEL TRANSFER AUTOMATIC CARD SWITCH

Specifications

automatic card switch

There is professional pcb&pcba design group waiting for you! Also there is pcb&pcba factory producing for you! Welcome your inquiry!

Specification

1) Operating voltage: 24VDC(MAX current2A, static current 0.1A)
2) Working temperature: -30 to 70
3) Working relative humidity: 30-90%
4) Work condition: installed in bin
5) Card dimension : width :54 ± 0.5 mm length: 85 ± 0.5 mmthickness: 0.2 ~ 2.4 mm
adjustable (notice : EX-work: 0.8mm)
6) Material : paper or polyester cards.
7) Net weight: 1.5Kgincluding card block
8) Dispensing time: about 0.5S
9) Card capability: 150pcs, 100pcs capability for adding one grade .

Card material:

All kinds of paper cards and PVC/ Mylar cards

Net of card collector:

About 0.7kg

Collect time:

About 1S

Electrical Specifications:

Rating Voltage:  24VDC±10%

Current Consumption: Peak-2.2Amp

Static Consumption: 0.1Amp

Environmental Specification:

Temperature: -30°C to 70°C(industrial)

Relative humidity: 30%-90%

Location: Within a suitable cabinet

Control interface description:

TTL electrical level control interface is offered by the TCR-610 card collector which is educed by the CN1 of electrical outlet in the control broad. The socket connectors with 2.54mm space between is used as electrical outlet.

Main Featur

Industrial design , modularization production with high unanimity in product accuracy and
quality;
2. Friction issuing mode applicable to different types of cards;
3. Hardware watchdog , embedded micro-real-time operating system ensures reliable

Function and Application :

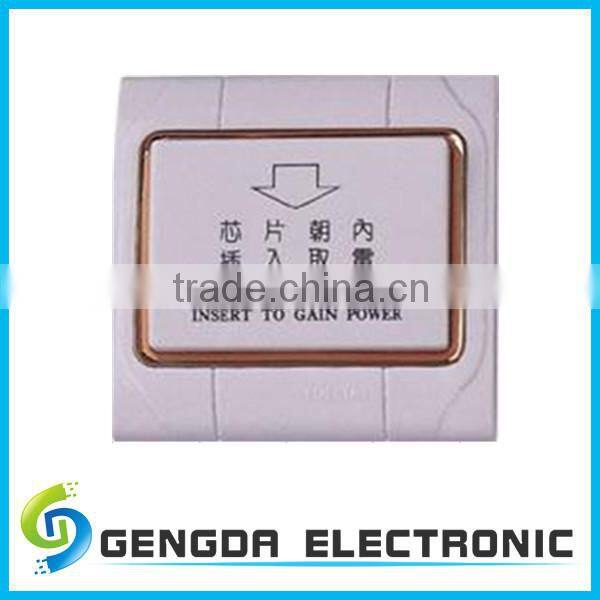

  1. When entering the rooms, the guests have to insert the room card into the Energy Saving Switch to turn on the illumination system. While leaving the room, the guest draw the room card; then the power supply will be shut off by the Energy Saving Switch about 15 seconds later. The delay function is very important in the Energy Saving Switch, without it, the guests have to leave the room in the dark. The consumption of the illumination system in each room in the hotel is about 2000 watt. If the guests forget to turn off all the electric appliances when they leave the room, which will be a great waste and it's very insecure. While their leaving, it is difficult for the waiter to know whether the lamps are turned on or not in the rooms. So we specially developed the Energy Saving Switch for the hotel to save the substantive

Packing:

Paper box inside

Wooden box outside

automatic card switch product overview
