Specifications
1.Swallowing card machine2.Modularization production with high unanimity
3.Sound and light alarm in error conditio

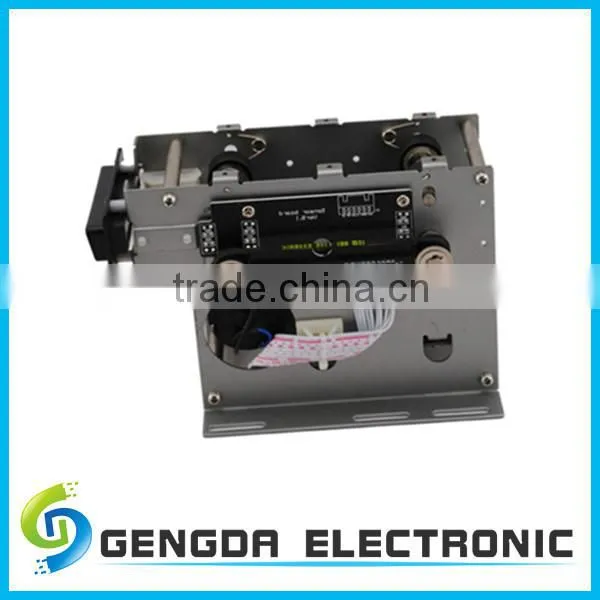

swallowing card machine
Main Feature
Industrial design , modularization production with high unanimity in product accuracy and
quality;
2. Friction issuing mode applicable to different types of cards;
3. Hardware watchdog , embedded micro-real-time operating system ensures reliable
operation;
4. Pre-issuing function accelerates the issuing speed to shorten the time effectively;
5. Automatically alarm when less card , no card or error;
6. Automatically reset after 100 seconds error alarm;
7.Provide RS232 and I/O two-level control interface;
8. All-card out'half-out mode optional, applicable to multi-channel Card Vending Machine;
9. Superimposed card box design provides a flexible and variable capacity of card box;
10. Card thickness adjustable from 0.2mm to 2.4mm(factory setting card thickness is 0.8mm);
11. Slide-mounted design makes the installation and disassembly easy, convenient and fast
Specifications:
1) Operating voltage: 24VDC(MAX current2A, static current 0.1A)
2) Working temperature: -30 to 70
3) Working relative humidity: 30-90%
4) Work condition: installed in bin
5) Card dimension : width :54 ± 0.5 mm length: 85 ± 0.5 mmthickness: 0.2 ~ 2.4 mm
adjustable (notice : EX-work: 0.8mm)
6) Material : paper or polyester cards.
7) Net weight: 1.5Kgincluding card block
8) Dispensing time: about 0.5S
9) Card capability: 150pcs, 100pcs capability for adding one grade .
Card material:
All kinds of paper cards and PVC/ Mylar cards
Net of card collector:
About 0.7kg
Collect time:
About 1S
Electrical Specifications:
Rating Voltage: 24VDC±10%
Current Consumption: Peak-2.2Amp
Static Consumption: 0.1Amp
Environmental Specification:
Temperature: -30°C to 70°C(industrial)
Relative humidity: 30%-90%
Location: Within a suitable cabinet
Control interface description:
TTL electrical level control interface is offered by the TCR-610 card collector which is educed by the CN1 of electrical outlet in the control broad. The socket connectors with 2.54mm space between is used as electrical outlet.
Function and Application:
1. When entering the rooms, the guests have to insert the room card into the Energy Saving Switch to turn on the illumination system. While leaving the room, the guest draw the room card; then the power supply will be shut off by the Energy Saving Switch about 15 seconds later. The delay function is very important in the Energy Saving Switch, without it, the guests have to leave the room in the dark. The consumption of the illumination system in each room in the hotel is about 2000 watt. If the guests forget to turn off all the electric appliances when they leave the room, which will be a great waste and it's very insecure. While their leaving, it is difficult for the waiter to know whether the lamps are turned on or not in the rooms. So we specially developed the Energy Saving Switch for the hotel to save the substantive
Packing
1 box including 100 pcs
