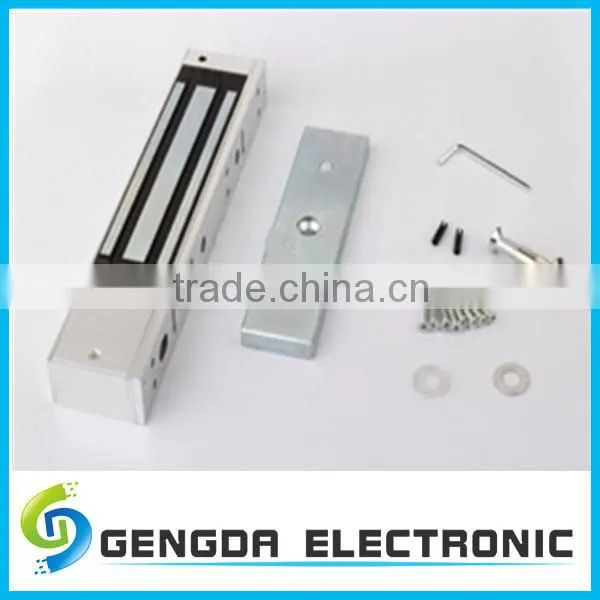

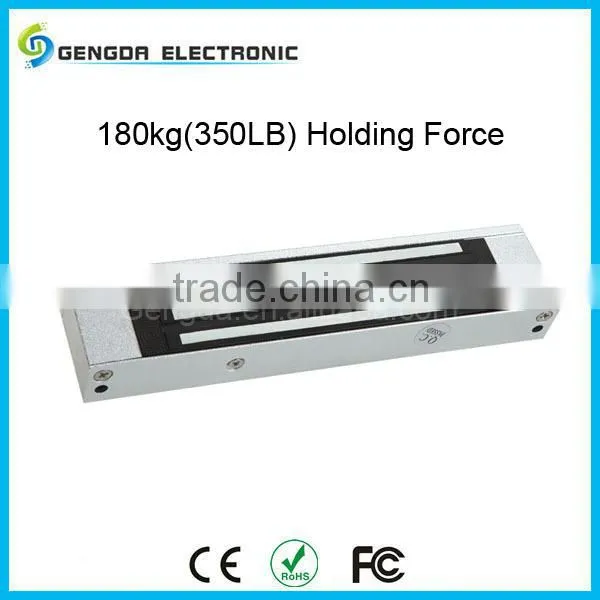

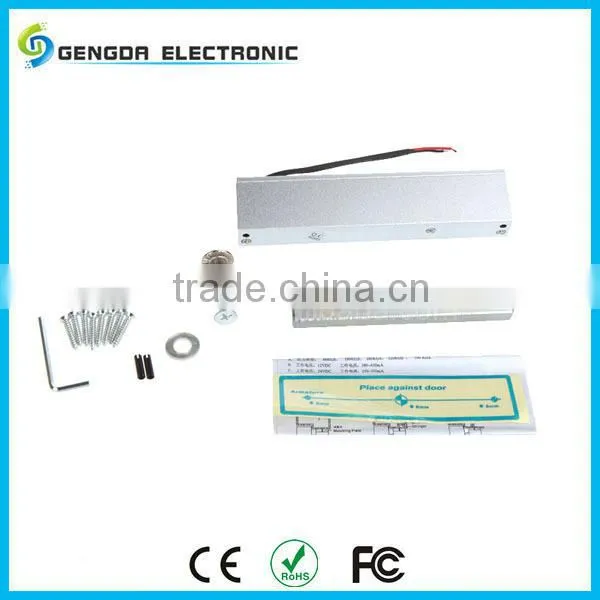

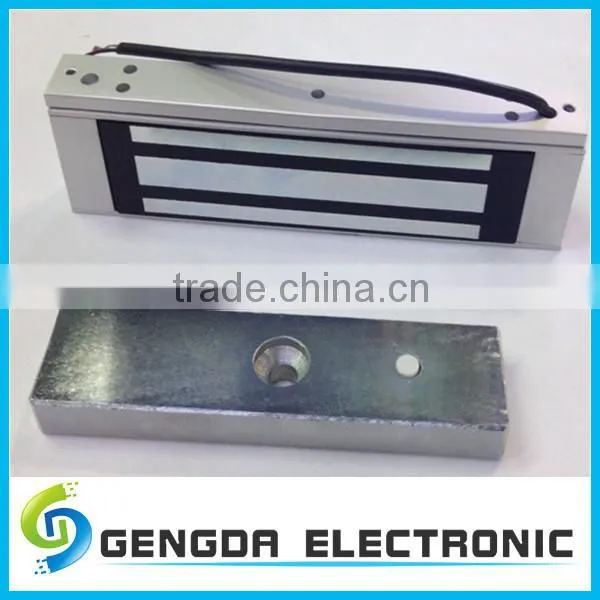

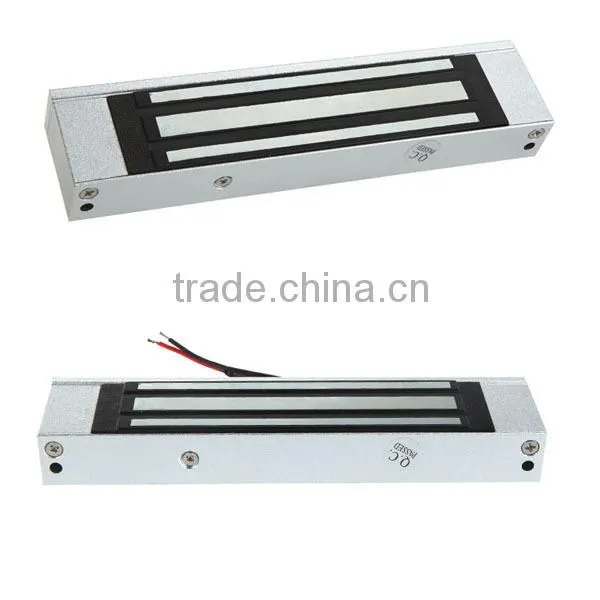

Safe electromagnetic lock :
Safe electromagnetic lock main features:
1.Suitable for all kind of doors
2.With low power, environmental protection
3.MOV provides reverse current protection
4.With special designed solenoid for strength and long life
5.Remote contral bolt lock with low temperature, safe & durable
6.With superior strength aluminum alloy, solid stainless steel bolt
Safe electromagnetic lock specifications:

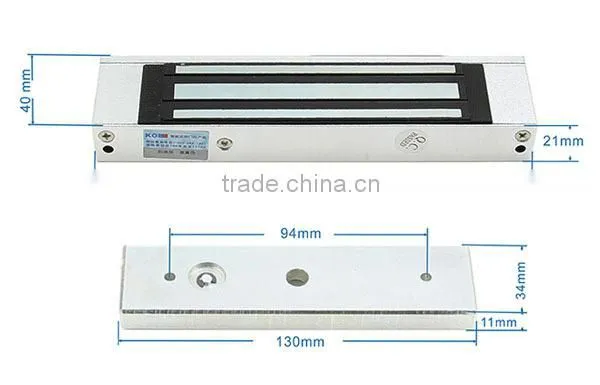

| Faceplate size | 203Lx34WX40H(mm) |
| Voltage | 12VDC±15% |
| Start current | 450mA |
| Standby current | 450mA |
| Holding force | 800kg |
| Suitable for | Wooden door,Glass door,Metal door |
| Induction distance | ≥10mm |
| Operating temp | -20~+55°C(14~131F) |
| Operating humidity | 0~90%(non-condensing) |
| Lock Weight | 0.63kg |
Function and application:
1.Management Classification--totally 15 different types cards: emergency card, master card, multilayer card, floor card, guest card, staff card, backup card, temporary card, report lost card, terminating card, authorized card, cipher card, room number card, clock card, clear card;
2. Time Limited Function--As long as the guest is expected to check out, the guest card will be inoperative automatically.
3. The Record Function--the lock records the latest 200 times unlocking information.
4.The Function of Avoiding Disturbing--after the door is locked from the inside, any card except emergency card cannot open the lock.
5. The Function of Alarm--once the batteries voltage is not enough, the door isnt totally closed and other abnormal situations, the lock will keep to remind the user by buzzer.
6. The Access Function--when necessary, we can set four kinds of locks which are room-access, floor-access, building-access, and general access.
Safe electromagnetic lock :

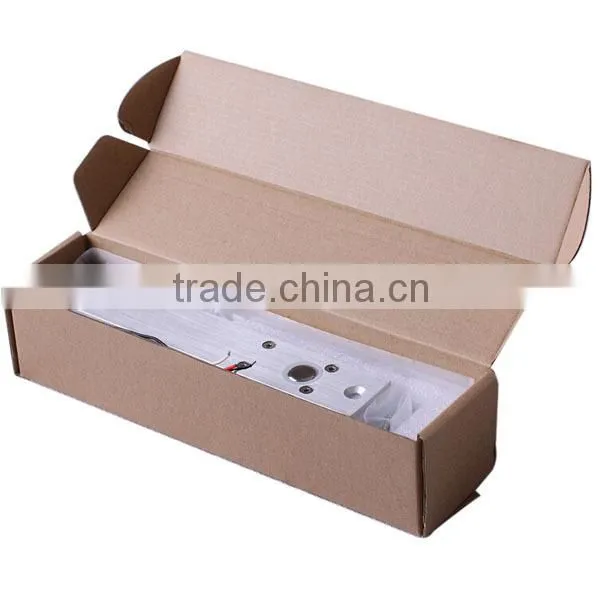

Packing:
Paper box inside
Company culture:
Shanghai Gengda Electronic Technology Co., Ltd. is founded in 2009.We are a private enterprise professionally engaged in security system products in wordwide.Research,production,market and service are integrated one unit.Our categories are tripod turnstile,flap turnstile,swing turnstile,access control system,smart card,electronic lock,control board,power box,road barrier, Anti-static tester and all accessories.What a surprise,we are searching new security field actively.
By modern operation and management mode,efficient and scientific product engineering method and quality administration system,we control strictly all links of projects,including program design and proof, project progress,and system test.Then,our products and service are in the top grade in the world.
