Specifications
Place of origin:SD/CNPower:15KW
Color:green
Brand:HD
Net weight:850kg

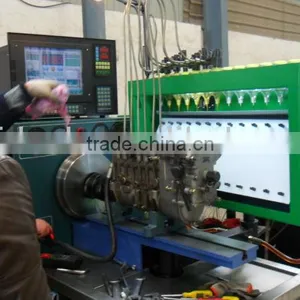

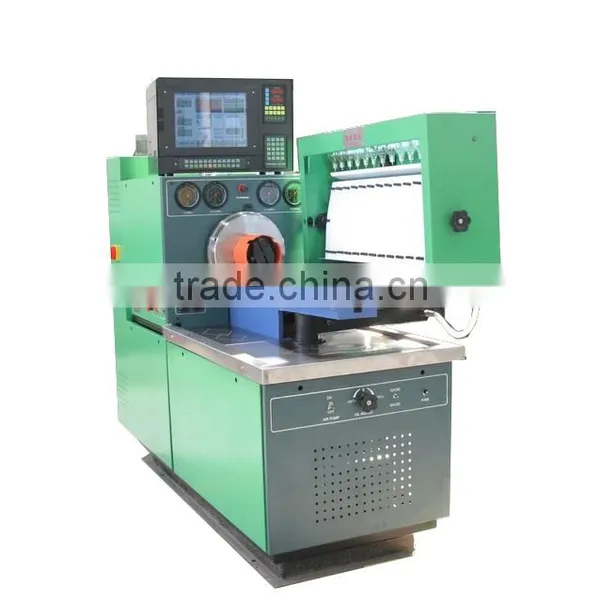

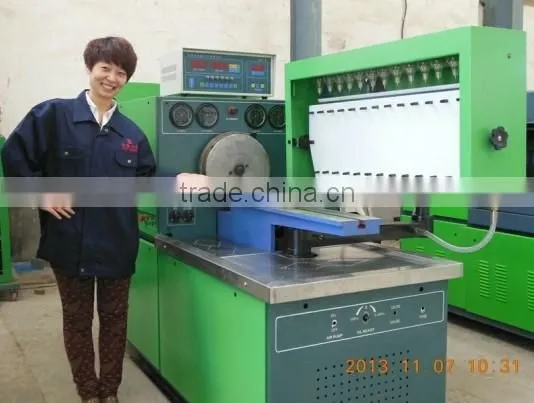

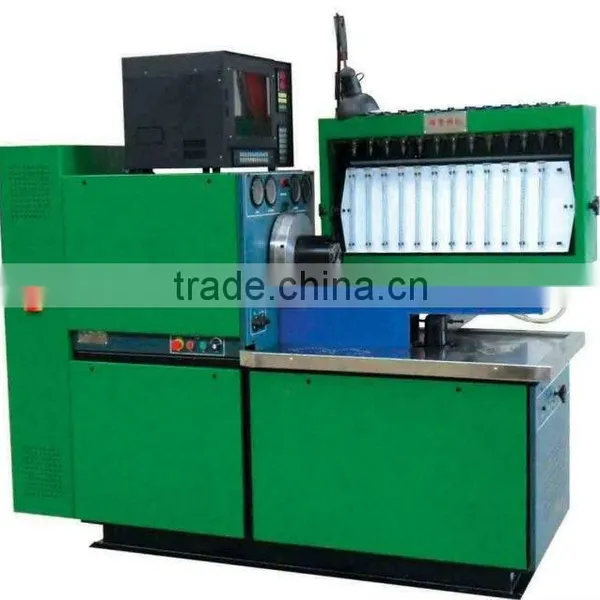

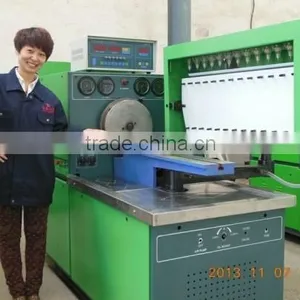

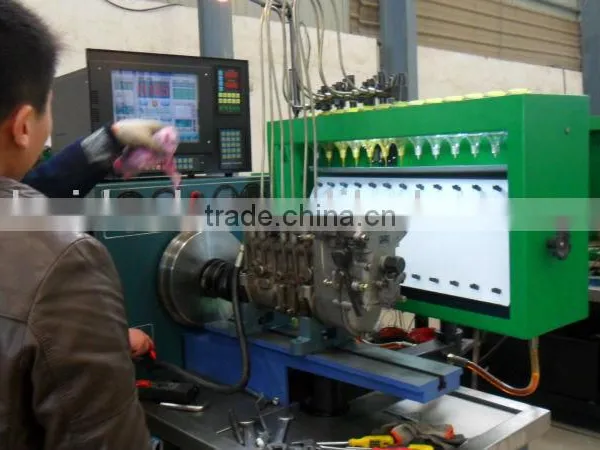

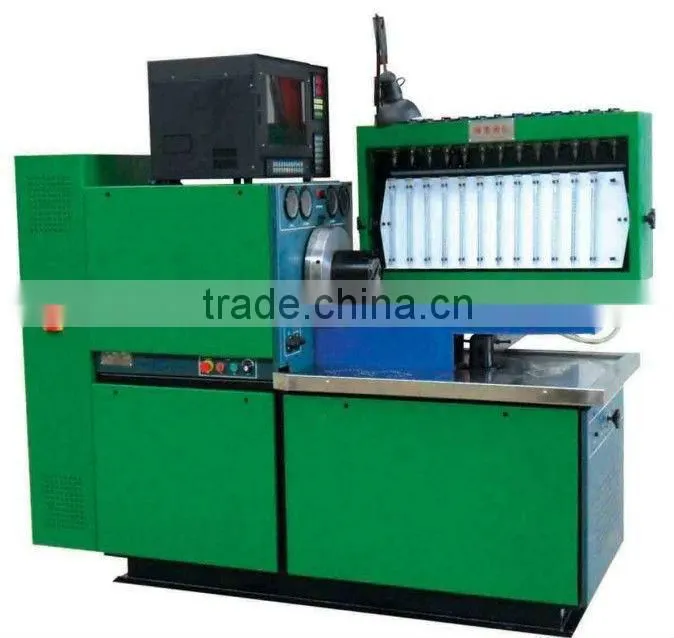

HTA579 (279) Series Of Fuel Injection Pump Test Bench
The test bench used for testing and maintenance of the high pressure fuel pump.
Description:
◊ Speed down value is smaller and Output torque larger when Host Frequency Control
◊ With over-voltage, overload, short circuit protection function
◊ High accuracy, low noise, easy to operate
◊ Through the industrial computer to control
◊ Has the speed preset and oil temperature constant temperature control

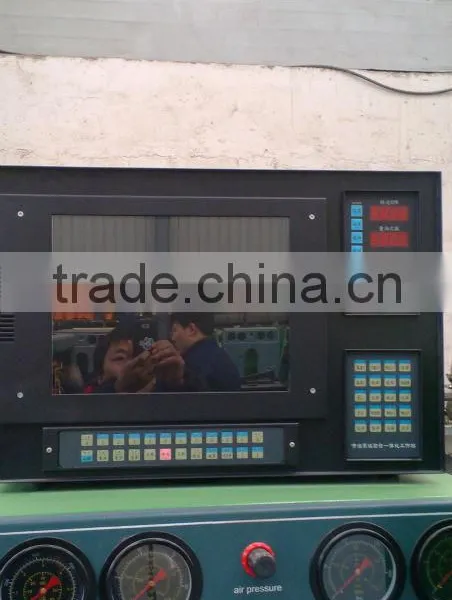

◊ Rotary speed, counting, temperature, air pressure, rack travel, advance angle digital display
◊ Built-in air source
◊ Data query and print function(Optional)
Functions:
◊ Test each cylinder's delivery at various rotation speeds
◊ Static checking each cylinder's injection timing
◊ Check the mechanical governor
◊ Dispensing pump electromagnetic valve testing
◊ Check the pneumatic governor and booster compensator performance
◊ Measuring the distribution of the pump back to the oil quantity
◊ Advance angle detection function(Optional)
◊ Injection pump seal test
Technical parameters:
| Speed range | 0-4000rpm |
| Measuring cup | 45ml,150ml ……(Optional) |
| Fuel tank capacity | 60L |
| Accuracy of the test oil filtration | 5μ |
| Supply pump pressure | High pressure: 0-4 Mpa Low pressure:0-0.4Mpa |
| Pressure | 0-0.3Mpa |
| Center height | 125mm |
| Electricity | 380V/50Hz, 3 phase or 220V/60 Hz, 3 phase |
| Output power | 5.5Kw,7.5Kw,11Kw,15Kw...(optional) |

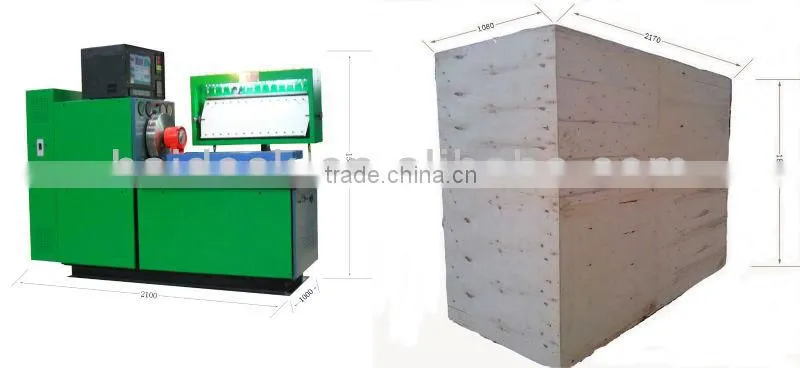

| Physical size | 2100*1000*1500mm |
| Net Weight | 850Kg |
