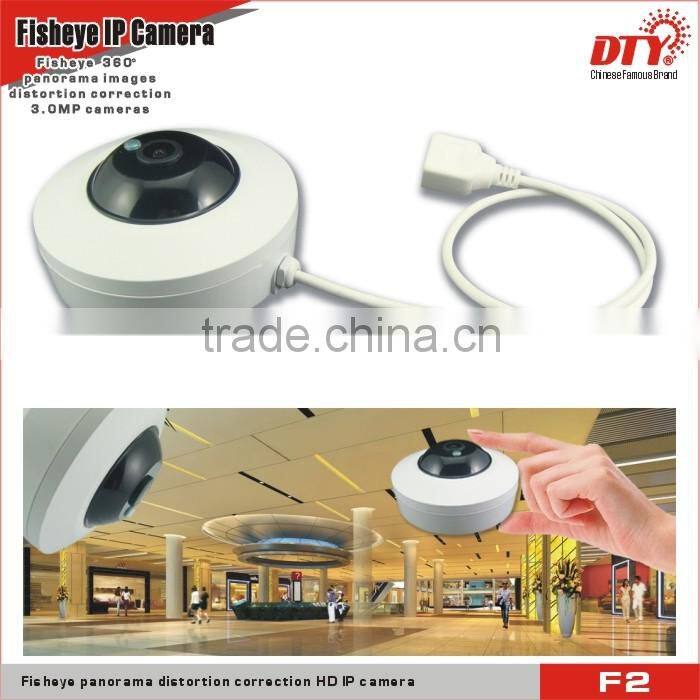

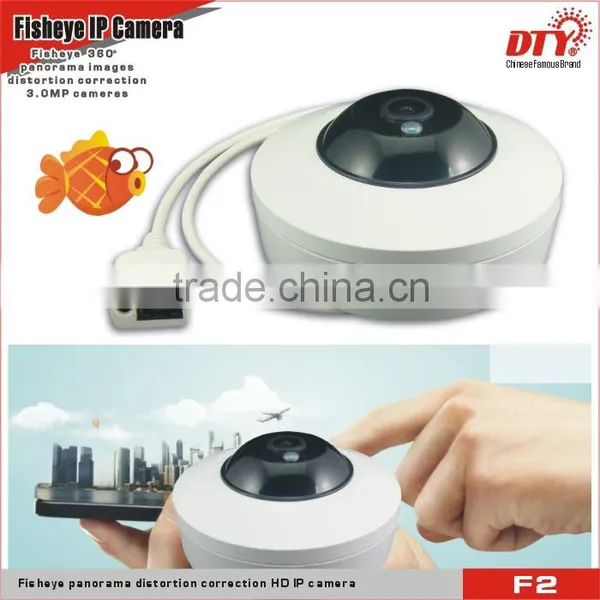

360 degree wide angle fisheyefisheye ipc hidden Panoramic ip Micro camera
Overview

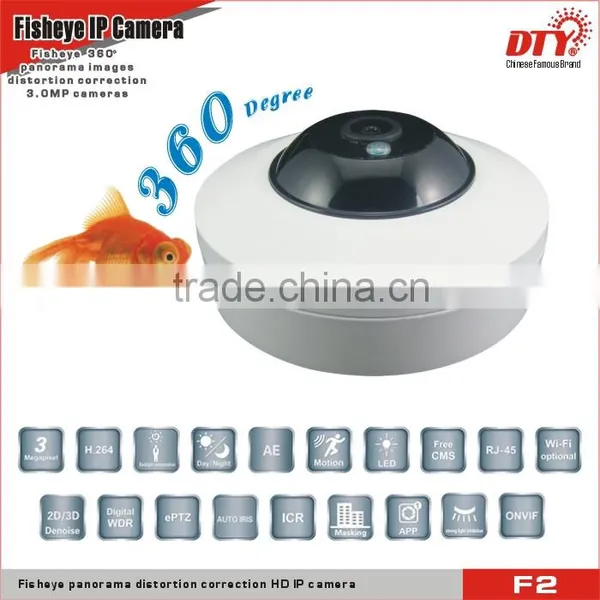

F2 is a 360 Degree Micro Fisheye IP Camera adopts H.264 video compression format and ARM high performance MCU. Adopts 3.0 Megapixel low illumination CMOS Sensor,unique glass fish eye wide angle lens with correction function. It displays 360°complete panoramic HD images (2048X1536) through 3D noise reduction and WDR. Equips with multiple exposure modes, Auto electronic shutter, Auto diaphragm, Backlight compensation, IR_CUT, Hard light mode, fluorescent lamp antiflash, Defogging etc.To guarantee the HD images at any indoor or outdoor surroundings. After connecting to Cloud end via RJ-45 or WIFI, you can remote monitoring F2 from PC browser or Smart phone app,if you have many IPCs you can use CMS to realize central management.F2 Supports local recording (by inserting the 32GB memory card) or Cloud end remote recording(on PC or Smart phone app),and Real-time play back. F2 Supports alarm functions ( including:motion detection, video lose, video cover, micro SD card faulty or micro SD card storage full etc.),and it will inform user the alarms through mobile app,it is convenient for user to take action in time.F2 supports installation modes including table mode, Ceiling mode, Wall mode,It displays 360 degree panorama in different scenes.F2 adopts pure metal case to keep cool easily.F2 also supports EPTZ, digital zoom, Multi-images display, Alarm input and alarm output. Auto maintain, Import and export etc.
Features
1) ARM9 serial high performance MCU, high efficiency and stable data process ability.
2) 3.0 megapixel CMOS sensor, display real time images(2048*1536 at 30fps max).
3) Adopts 185 degree wide angle lens, applicable for 360 degree monitor without blind area.
4) Supports Backlight compensation, Auto electronic shutter, Auto diaphragm etc, applicable for all kinds of surveillance surroundings.
5) Supports IR_CUT , realize day and night monitoring.

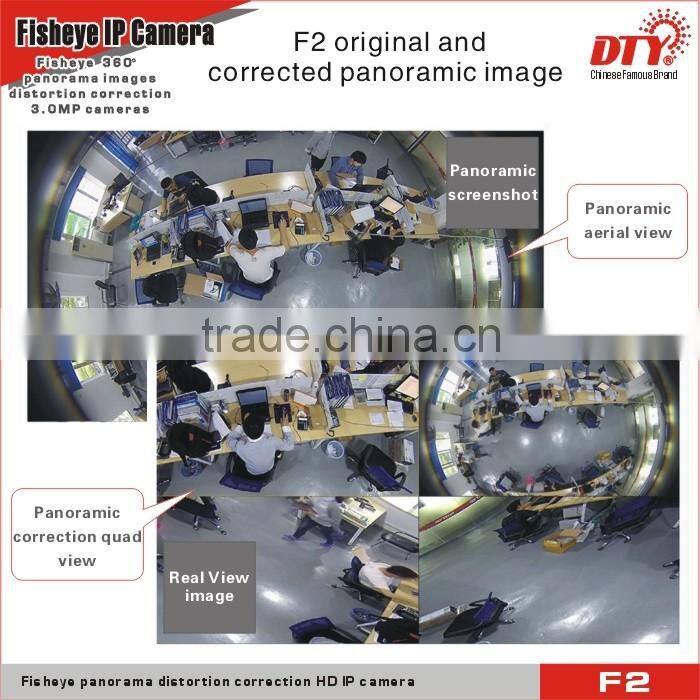

6) Supports multi-images mode: Original fisheye image, panoramic mode, double panorama, single image with EPTZ.
7) Supports H.264 compression format, ultra-low code stream and high definition images.
8) Supports WDR and 2D/3D noise reduction.
9) Supports Maximum 32GB Micro SD/SDHC/SDXC
10) Supports panoramic or partial image correction , the corrected video stream could be output directly as preview images or recodings.
11) Supports remote monitor with PC or Mobile phone at any time and any where.
12) Supports CMS mult-devices management.
13) Supports alarms funcitons: motion detection, video lose, video cover, micro SD card Error or micro SD card storage full etc, and send report to user by mobile app immediately.
14) Supports thunder prevention accord with GBGB/T17626.5 and IEC61000-4-5.
15) Support ONVIF.
Application
Main application : Buildings,Public entrances and exits,Elevator,Meeting room,Shopping mall,parking lots,Workshop,ect.
Specification
| Mode | F2 | |
| Name | 360 Degree Fisheye Panoramic Distortion correction IP Camera | |
| MCU | ARM926EJ™ 600MHz | |
| Camera | Lens | 3.0 MP HD Fisheye Lens |
| Sensor | 1/3" Progressive Scan CMOS | |
| Minimum illumination | Color 0.1Lux & F1.2, Black&White 0.001Lux & F1.2 | |
| Shutter Time | 1/50s-1/10000s | |
| IR_CUT Filter | Built-in Infrared-Cut Removable (ICR) Filter | |
| WDR | Support | |
| Auto electronic shutter | Support | |
| Auto Diaphragm | Support | |
| White Balance | Manual/Auto | |
| AGC | Support | |
| Strong Light Inhibition | Support | |
| Fluorescent lamp mode | Support | |
| Defogging | Support | |
| Compression | compression format | H.264 |
| Standard | H.264 code type | BaseLine Profile / Main Profile / High Profile |
| Output Bit rate | 1Mbps~6Mbps | |
| Main stream Resolution | 720P & 25fps | |
| and FPS | ||
| Extra steam Resolution | D1 & 25fps | |
| and FPS | ||
| The max image resolution | 2048×1536 | |
| Image | image setting | Brightness, saturation, contrast, acutance |
| Auto exposure mode | ||
| Bit rate control | ||
| I Frame Interval | ||
| Region cover | ||
| time and channel title | ||
| Backlight compensation | Support, manually on/off | |
| Denoise | 2D/3D denoise | |
| day/night mode | auto/timing | |
| digital ZOOM | 12X | |
| Eptz | Support | |
| Network | Storage | Support Micro SD/SDHC/SDXC card(32G) |
| Function | Interface Protocol | Support ONVIF |
| Smart alarm | Motion detection, Video lose, Video cover, Micro SD card | |
| Error or Micro SD card Storage full and so on | ||
| Communication Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTSP, | |
| RTP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,QoS,IPv6 | ||
| PC Remote Monitoring | Support | |
| Mobile Phone Monitoring | Support | |
| General Function | HDD manage, auto maintain, mulit-user operation, | |
| password protection, import and export | ||
| Interface | Aduio Interface | Built-in MIC |
| Communication Interface | RJ45 10M/100M Ethernet Interface | |
| Alarm Interface | 2ch alarm input interfaces, 1ch 485 alarm output interface | |
| Record | Security | Multi-grade password protection,user recording,IP filter |
| Monitoring | double bit rates optional | |
| Timing recording | ||
| motion detection recoding | ||
| Upload snapshots/video clips via e-mail | ||
| Upload snapshots/video clips via FTP | ||
| Real time play back and alarm recording search | ||
| System | Operating System | Microsoft Windows 10/8/7/Vista/XP SP3. |
| Requirement | Compatible Browsers | Microsoft Internet Explorer 8,Firefox 12, Chrome 20, |
| Safari 4, Other Java-enabled browser | ||
| Supported Mobile App | Mobile app for iPhone, iPad, and Android mobile devices | |
| General | Operating Conditions | -10~60℃ |
| Power Supply | DC12V±10% | |
| Power Dissipation | 6W MAX | |
| IR distance | 5m | |

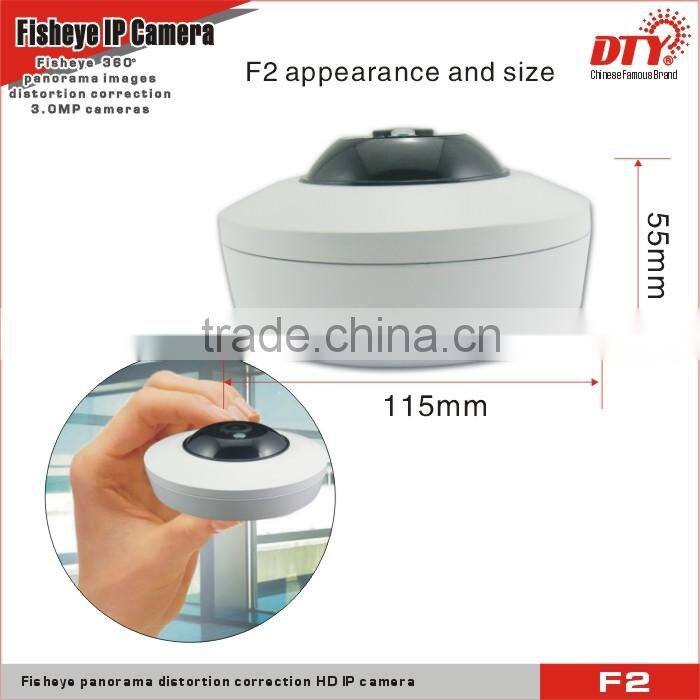

| Dimensions | 120×59mm | |
| Weight | about 380g | |
| Certification | CE, FCC, RoHS | |

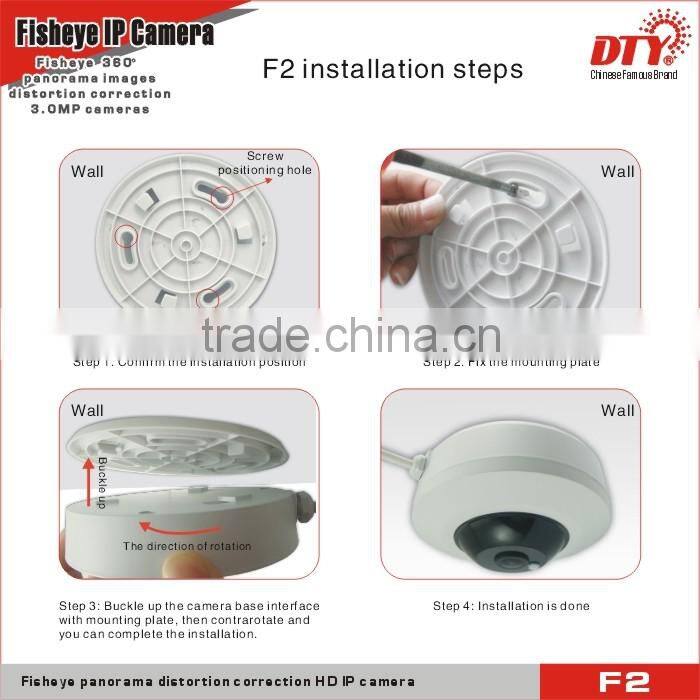

| Installation modes | Table, Wall, Ceiling | |
