Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > 4CH D1 GPS and 3G HDD Car DVR

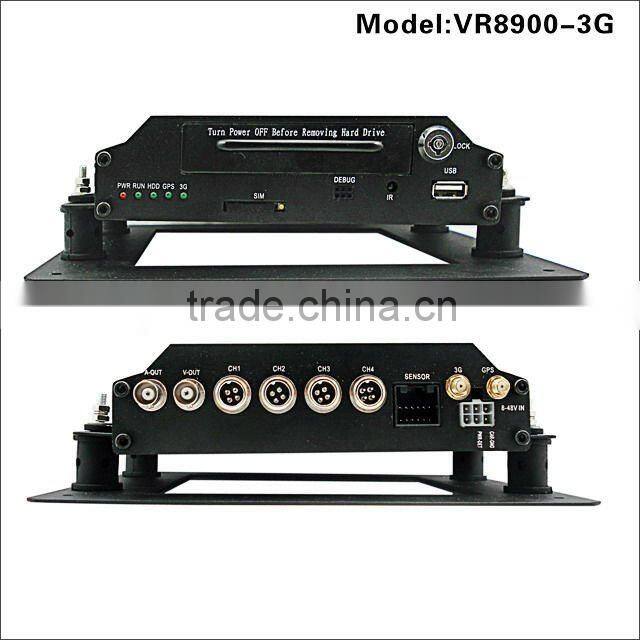

4CH D1 GPS and 3G HDD Car DVR

US$ 330 - 420 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DTY

Model Number:

VR8900-3G

Contact Supplier Request Quote Chat Now

Dty (Shenzhen) Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DTY

Model Number VR8900-3G

Specifications

This mobile DVR is with GPS and 3G funciton. You can monitor the video and see the location even you are a long distance away.

Mobile DVR Model: VR8900-3G

Description

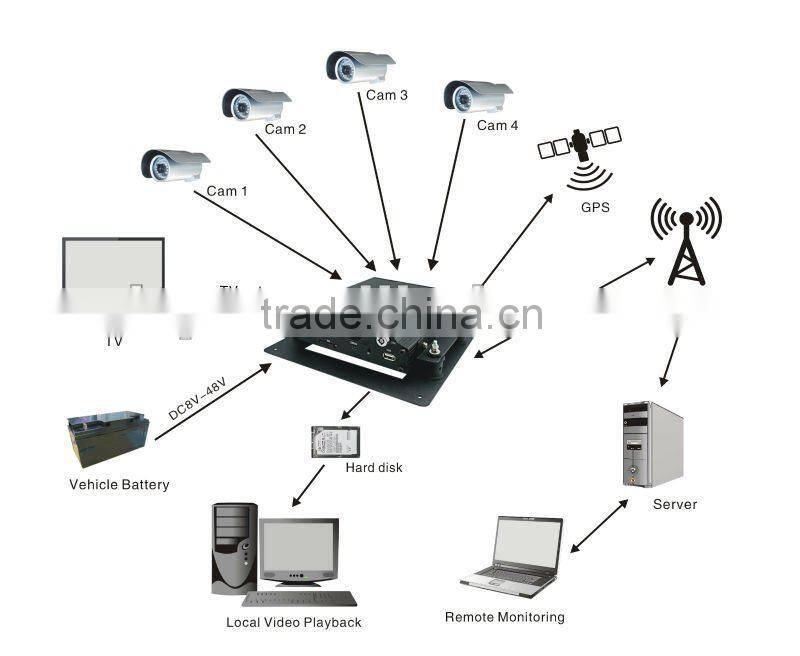

This DVR VR8900 can be used for a variety of applications, especially for vehicle surveillance. You can use it in a car, in a school bus, or even on a boat. VR8900 does not only support Local Video Recording but also Remote Video Transmission as well with its new feature 3G. You can monitor the video and see the location even you are a long distance away. 4-channel video recording with audio, maximum 2TB hard disk supported for memory storage, high resolution D1 for every single channel, vandal proof design, and so on, all these features make VR8900 an amazing choice for protecting your vehicle.

Features

1. Metal housing; shock-resistant design;

2. Immediately gets into “Record Mode” once turned on;

3. Supports Manual Record, Motion Detect and scheduled Record;

4. Video resolution D1/HD1/CIF selectable for each channel; Frame rate 1fps-25fps in PAL or 1fps-30fps in NTSC for each channel.

5. Supports 4 CH “Video & Audio” recording at the same time;

6. Video files can be saved onto 2.5” Sata HDD up to 2TB;

7. with shell lock, user password to keep the data safe;

8. Supports 4 alarm inputs and 2 alarm outputs;

9. comes with customized video player for playing or analyzing video files;

10. Power-off delay to guarantee the DVR would shut down normally to keep recorded files safe when an emergency occurs;

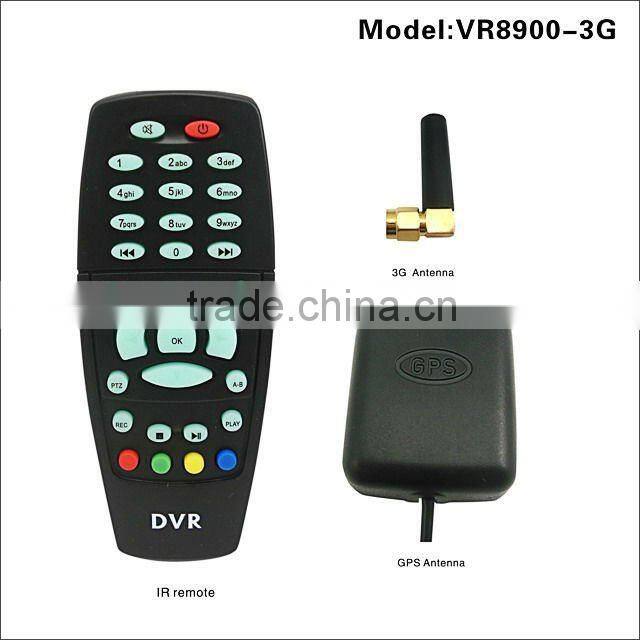

11. Easy operation! Supports IR remote control;

12. Can be connected with 4 cameras, and are able to power the 4 cameras directly;

13. Can work with power supply ranging from DC 8V to DC48V;

14. Supports GPS and 3G function for remote video monitoring.

Technical Specification

Working Voltage: DC8V to 48V
Working Temperature: –20°C~ +60°C
Output Voltage(for camera): DC12V
Maximum Memory: 2000Gb Hard Disk
Compression File Format: H.264
Video Format: H.264
Record mode: Manual Record/ Alarm Record/Motion Detect
Video Resolution: D1/HD1/CIF selectable for each channel

Frame Rate: 25fps (PAL) or 30fps (NTSC) for each channel
Record signal: 4-channel Audio & Video
Memory Storage: Overwrite when full or stop when full
Compatible camera: Common CMOS & CCD
Alarm: 4-Channel input & 1-Channel output

Dimension: 213mm x 230mm x 63mm

Net weight: 1.9KG

How 3G works?

a. Buy a 3G sim Card

For of all, you should get a sim card, make sure there is some money inside, and then put it in the DVR sim card slot.

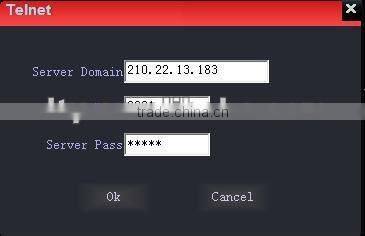

b. Build a server

For testing, you can use our server (IP: 192.22.13.183), but you can also build your own server. Just get a computer which is connected to the internet, install the “Server Software” on the computer, the server is done. Then add the DVR to the server, and set a password for the DVR.

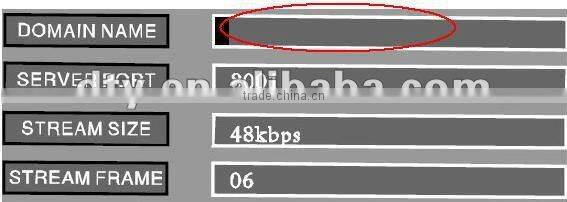

c. DVR setting

It is easy as well, just go to the DVR menu, and enter the IP address of the server in the blank “Domain Name”. For example, if you use our server, then just put in 192.22.13.183.

d. Install CMS (Client Monitoring Software)

Install CMS (Client Monitoring Software) on any computer which you want to use for remote monitoring.

e. Done

Login to CMS software, put in the IP Address of the server and the password of the DVR as well. After above steps are correctly done, you will be able to see the DVR in CMS “device list”, double click corresponding icons, then you will be able to see the video and the location as well.
