Double Motor Wireless TFT Controller Sydtem
Specifications

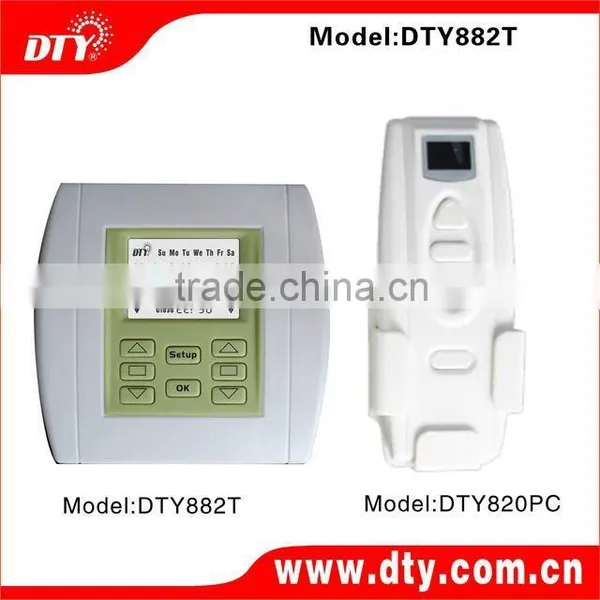

Dual motor wireless controller system consist of transmitter with TFT and receiver with TFT. The transmitter has 100 channelsⅠProduct Introduction:
Advanced wireless intelligent control technology and special microcomputer procedure chip are used for KON882T. It's a new generation, high technology, digital control system, highperformance with lower price. Features:
Features:
1. Controlled by microcomputer intelligentized control procedure;
2. Up to 100pcs receivers can be operated by only one remote;
3. The remote and the receiver can be matched and coded wirelessly;
4. The running direction of the motor can be switched at will;
5. High quality and original components used;
6. Any combination of separate control and group control is ok;
7. Abundant yards in case of repeated codes;,
8. Remote control / Manual control are compatible.
Ⅱ Application

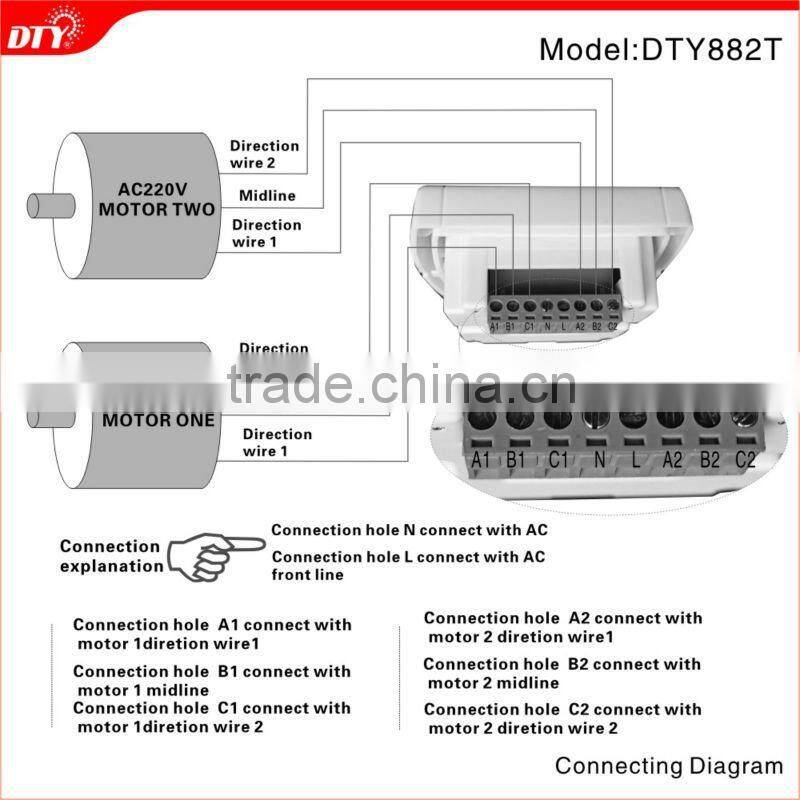

1. The product is suitable for the direction switch of AC motors with 220V/50Hz, power≤Q200W. It can make the motor to move forward, backward, stop and change the direction. Besides, Separate Control and group control to up to 100 groups motors.
2. It can be used for all kinds of AC tubular motors: Curtain; Awning; Projection screen; Garage door etc.
Ⅲ Technical Specifications:
1. Power supply: AC 190V~ 240V 2. Frequency: 315MHz/433MHz(selected)
3. Current: ≤5A 4. Power: ≤200W
5. Transmission Power: 15mW 6. Sensitivity:-100dB
7. Operation temp: -30°C~70°C 8. Remote distance: about 80m (with obstacle)
