Specifications
The product is suitable for the direction switch of two DC motors with 12V/24V; It is used for all kinds of DC tubular motor.Product: Motor wireless remote control system

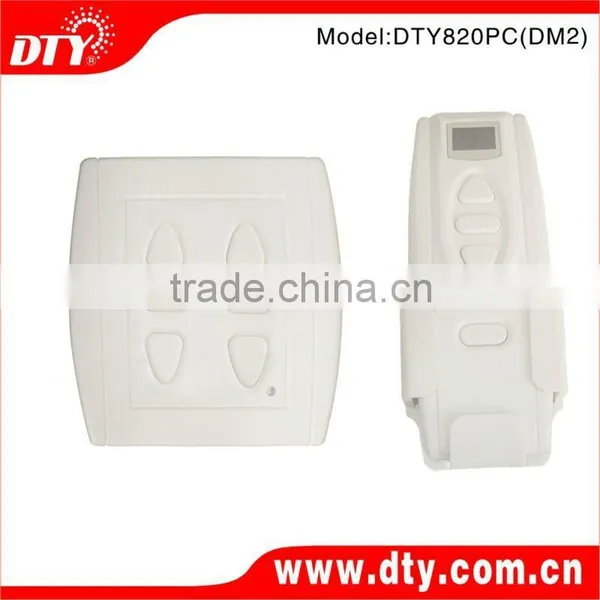

Model: DTY820PC(DM2)/DTY180PC
Overview:
DTY820PC is a motor wireless intelligent digital control system which developed by advanced wireless intelligent control technology and special microcomputer procedure chip. It can be applied to control the forward and reverse rotation of all kinds of tubular motors. The products are nice looking, safe and reliable and easy to use.
Main Features of DTY820PC(DM2):
1. Emitter and receiver code with each other wirelessly;

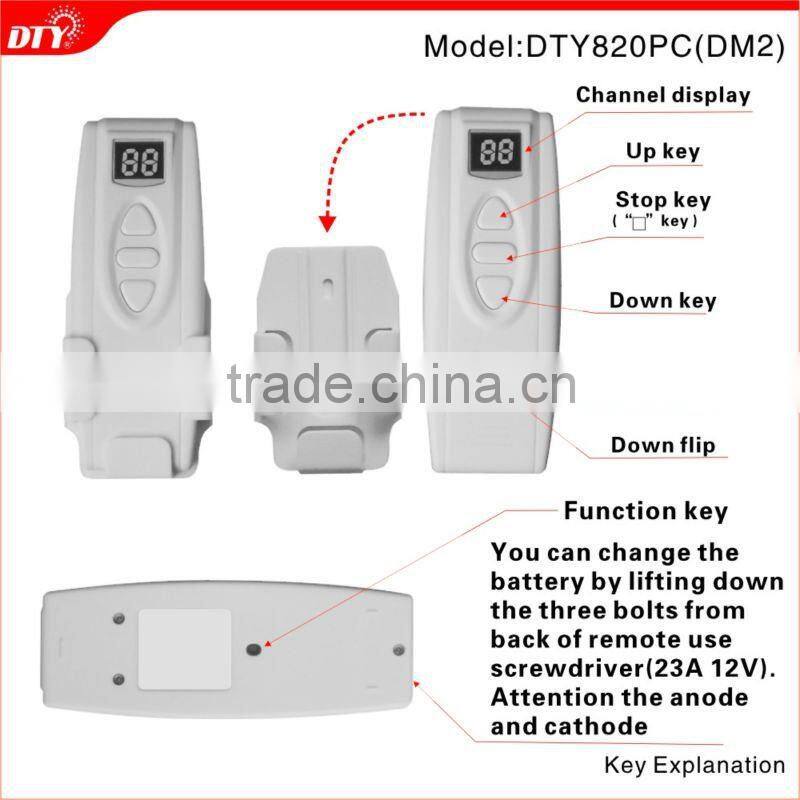

2. The emitter has digital display screen and 100 channels which can control at least 100pcs receivers;
3. Motor running direction can be switched at will;
4. Free combination for separate control and group control.
Applications:
- The product is suitable for the direction switch of two DC motors with 12V/24V;
- It is used for all kinds of DC tubular motors: electric curtain; electric projection screen etc.
Technical Specifications:
1. Working voltage:12VDC-24VDC
2. Current:≤10A
3. Power:≤200W
4. Frequency: 315MHz/433MHz
5. Working temp: -30°C~+70°C
6. Sensitivity:-100dB
7.Transmission Power: 15mW
8. Remote distance: about 80m (open fields)
