Product Details
Place of Origin: | Shanghai, China | Brand Name: | Gengda | Model Number: | GD216A, GD216A |
Product Description
Specifications
optical tripod turnstile :1. full automatic
2. IR socket
3. compatible with computers and card readers

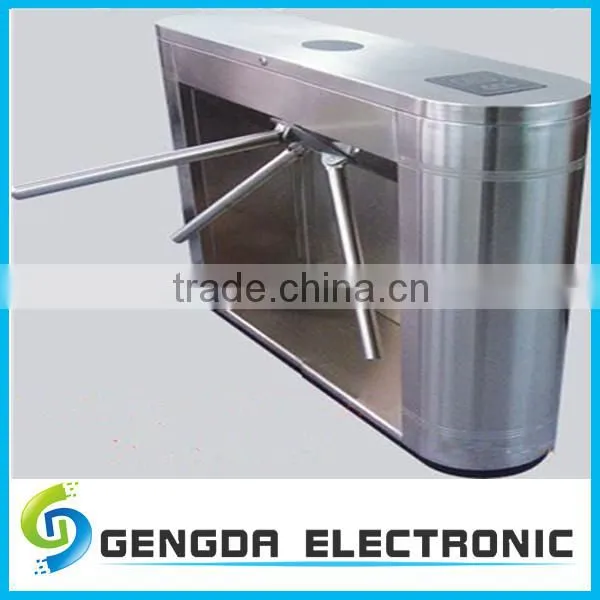

ELECTRIC OPTICALTRIPOD TURNSTILE
A tripod turnstile gate, also called a baffle gate, is a form of gate which allows one person to pass at a time. It can also be made so as to enforce one-way traffic of people, and in addition, it can restrict passage only to people who insert a coin, a ticket, a pass, or similar. Thus a turnstile can be used in the case of paid access (sometimes called a faregate when used for this purpose), for example public transport as a ticket barrier or a pay toilet, or to restrict access to authorized people, for example in the lobby of an office building.
Turnstiles are used at a wide variety of settings, including stadiums, amusement parks, museums, mass transit stations, office lobbies, retail sites, cafeterias, temporary exhibits, ski resorts, casinos and souvenir stands.
From a business/revenue standpoint, turnstiles give an accurate, verifiable count of attendance. From a security standpoint, they lead patrons to enter single-file, so security personnel have a clear view of each patron. This enables security to efficiently isolate potential trouble or to confiscate any prohibited materials. They can, on the other hand, become a serious safety issue when a speedy evacuation is needed.
Persons with disabilities may have difficulties using turnstiles. In these cases, generally a wide aisle gate or a manual gate may be provided. At some locations where luggage is expected, a line of turnstiles may be entirely formed of wide isle gates, for example at Heathrow Terminals 1,2,3 Underground station.
History:
Turnstiles were originally used, like other forms of stile, to allow human beings to pass while keeping sheep or other livestock penned in. The use of turnstiles in most modern applications has been credited to Clarence Saunders, who used them in his first Piggly Wiggly store.
Turnstiles often use ratchet mechanisms to allow the rotation of the stile in one direction allowing ingress but preventing rotation in the other direction. They are often designed to operate only after a payment has been made, usually by inserting a coin or token in a slot; or by swiping, or inserting, a paper ticket or electronically encoded card.
Turnstiles are often used for counting the numbers of people passing through a gate, even where payment is not involved. They are used extensively in this manner in amusement parks, in order to keep track of how many people enter and exit the park and ride each ride. The first major use of turnstiles at a sporting venue was at Hampden Park in Glasgow, Scotland.
Main Features:
1 Stainless steel housing
2 Bi-direction pass
3 Arms auto drop when power off
4 Arms auto rise up when power on and auto stop on abstacle
5 Traffic light indicator
6 RFID interface
7 Photoelectric inspection
8 Passenger counter (optional)
9 If the passenger does not pass in the valid time, the passenger will be locked up again.. the valid passing time can be set up by operator.
Model | GD216A |
Housing material | 304# stainless steel, corosion resistant |
Dimension | 1200*280*1000 mm |
Channel width | 500--600 mm |
Lifetime | 5,000,000 times |
Control mode | semi-automatic / hand movement |
Passage way | one-way / bothway |
Working environments | indoor / outdoor |
Power source | AC220V |
Frequency | 50 Hz |
Working temperature | -30°C—60°C |
Working humidity | 0~95%RH coagulation free |
Pass speed | 30 ≤ 40 persons/min |
Input interface | COM switch signal |
Communication Connection | RS485 |
railing-off against power off | Yes |
Waterproof and Dustproof | above IP32 |
Working noise | less than 65 db |
Application:
Tripod turnstile gate is your ideal choice for entrance control and widely applied in:Community, school, bank, seabeach, shopping center and so on.
Other place:
1. Industrial zones
2. Administrative buildings
3. Recreation centers
4. Amusement parks
5. Financial institutions
6.Government agencies
7. Airports
8. Bus and railway stations
9. Offices.
Packing:
Paper box inside
Wooden box outside
Tripod turnstile product overview:
