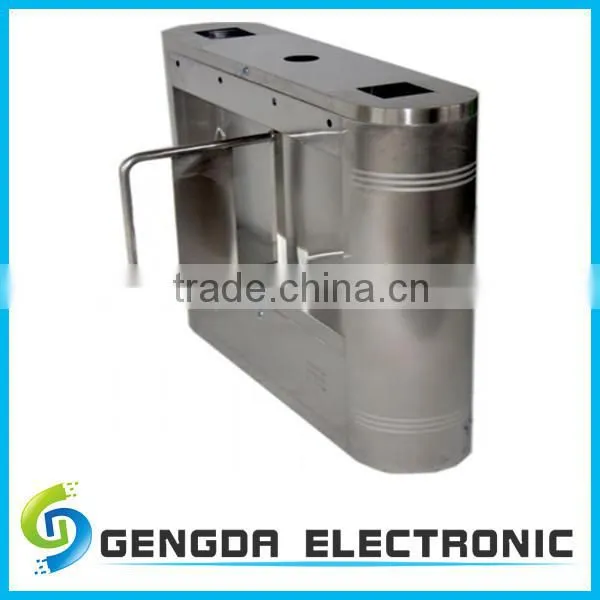

ELECTRIC OPTICALTURNSTILE BARRIER SWING GATE

Specifications

1.Material:stainless steel swing turnstile
2.Lifetime:3million
3.Size:1400*240*1000mm
4.Power source:AC220V
5.Hotsa

  2014 ELECTRIC OPTICALTURNSTILE BARRIER SWING GATE



A turnstile, also called a baffle gate, is a form of gate which allows one person to pass at a time. It can also be made so as to enforce one-way traffic of people, and in addition, it can restrict passage only to people who insert a coin, a ticket, a pass, or similar. Thus a turnstile can be used in the case of paid access (sometimes called a faregate when used for this purpose), for example public transport as a ticket barrier or a pay toilet, or to restrict access to authorized people, for example in the lobby of an office building.

Turnstiles are used at a wide variety of settings, including stadiums, amusement parks, museums, mass transit stations, office lobbies, retail sites, cafeterias, temporary exhibits, ski resorts, casinos and souvenir stands

From a business/revenue standpoint, turnstiles give an accurate, verifiable count of attendance. From a security standpoint, they lead patrons to enter single-file, so security personnel have a clear view of each patron. This enables security to efficiently isolate potential trouble or to confiscate any prohibited materials. They can, on the other hand, become a serious safety issue when a speedy evacuation is needed.

Persons with disabilities may have difficulties using turnstiles. In these cases, generally a wide aisle gate or a manual gate may be provided. At some locations where luggage is expected, a line of turnstiles may be entirely formed of wide isle gates, for example at Heathrow Terminals 1,2,3 Underground station.

History:
Turnstiles were originally used, like other forms of stile, to allow human beings to pass while keeping sheep or other livestock penned in. The use of turnstiles in most modern applications has been credited to Clarence Saunders, who used them in his first Piggly Wiggly store.
Turnstiles often use ratchet mechanisms to allow the rotation of the stile in one direction allowing ingress but preventing rotation in the other direction. They are often designed to operate only after a payment has been made, usually by inserting a coin or token in a slot; or by swiping, or inserting, a paper ticket or electronically encoded card.
Turnstiles are often used for counting the numbers of people passing through a gate, even where payment is not involved. They are used extensively in this manner in amusement parks, in order to keep track of how many people enter and exit the park and ride each ride. The first major use of turnstiles at a sporting venue was at Hampden Park in Glasgow, Scotland.

Main Features:

1 Stainless steel housing

2 Bi-direction pass

3 Arms auto drop when power off

4 Arms auto rise up when power on and auto stop on abstacle

5 Traffic light indicator

6 RFID interface

7 Photoelectric inspection

8 Passenger counter (optional)

9 If the passenger does not pass in the valid time, the passenger will be locked up again.. the valid passing time can be set up by operator

Specifications: .

Model	GD412A
Housing material	304# stainless steel, corosion resistant
Dimension	1400*240*1000mm
Channel width	500--600 mm
Lifetime	3,000,000 times
Control mode	semi-automatic / hand movement
Passage way	one-way / bothway
Working environments	indoor / outdoor
Power source	AC220V
Frequency	50 Hz
Working temperature	-15°C—75°C
Working humidity	0~95%RH     coagulation free
Pass speed	30 ≤ 40 persons/min
Input interface	COM switch signal
Communication Connection	RS485
railing-off against power off	Yes
Waterproof and Dustproof	above IP32
Working noise	less than 65 db

Application:

he bridge ladder three roller gate is your ideal choice for entrance control and widely applied in:Community, school, bank, seabeach, shopping center and so on.

Other place:

1. Industrial zones

2. Administrative buildings

3. Recreation centers

4. Amusement parks

5. Financial institutions

6.Government agencies

7. Airports

8. Bus and railway stations

9. Offices.

Packing:

Paper box inside

Wooden box outside

Tripod turnstile product overvie
