Specifications
1.Material:stainless steelswing turnstile2.Lifetime:3million
3.Size:350*280*990mm
4.Power source:AC220V
5.Hotsale type

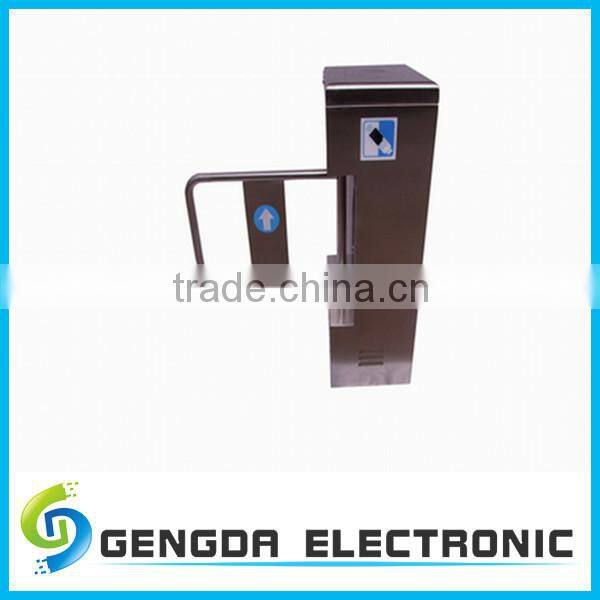

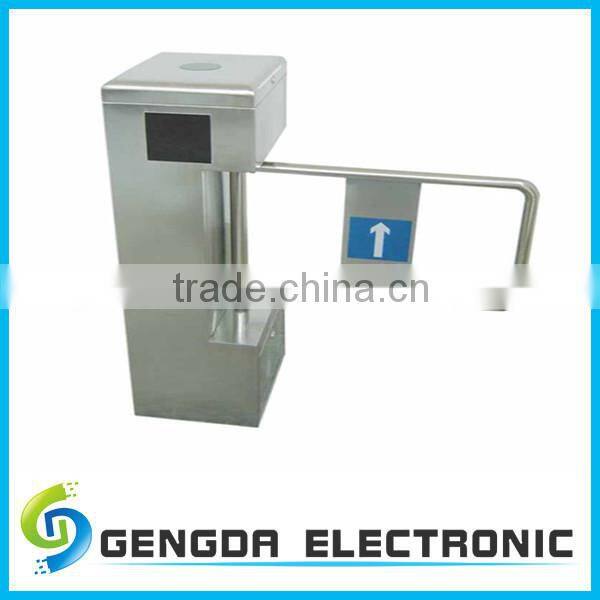

Vertical round flap gate
Main Features:
1 Stainless steel housing
2 Bi-direction pass
3 Arms auto drop when power off
4 Arms auto rise up when power on and auto stop on abstacle
5 Traffic light indicator
6 RFID interface
7 Photoelectric inspection
8 Passenger counter (optional)
9 If the passenger does not pass in the valid time, the passenger will be locked up again.. the valid passing time can be set up by operator.
Specification
Model |
GD301 |
Housing material |
304# stainless steel, corosion resistant |
Dimension |
350*280*990 mm |
Channel width |
500--600 mm |
Lifetime |
3,000,000 times |
Control mode |
semi-automatic / hand movement |
Passage way |
one-way / bothway |
Working environments |
indoor / outdoor |
Power source |
AC220V |
Frequency |
50 Hz |
Working temperature |
-15°C—75°C |
Working humidity |
0~95%RH coagulation free |
Pass speed |
30 ≤ 40 persons/min |
Input interface |
COM switch signal |
Communication Connection |
RS485 |
railing-off against power off |
Yes |
Waterproof and Dustproof |
above IP32 |
Working noise |
less than 65 db |

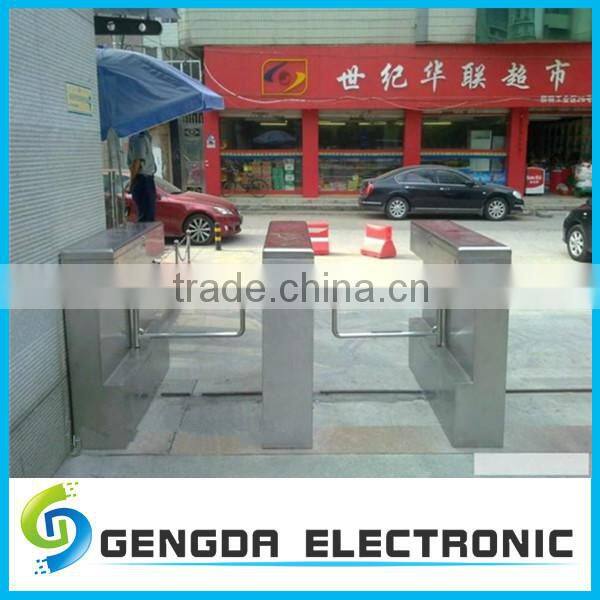

Application:
he bridge ladder three roller gate is your ideal choice for entrance control and widely applied in:Community, school, bank, seabeach, shopping center and so on.
Other place:
1. Industrial zones
2. Administrative buildings
3. Recreation centers
4. Amusement parks
5. Financial institutions
6.Government agencies
7. Airports
8. Bus and railway stations
9. Offices.
Packing:
Paper box insideWooden box outside
Vertical round flap gate
Company Culture:
Shanghai Gengda Electronic Technology Co., Ltd. is founded in 2009.We are a private enterprise professionally engaged in security system products in wordwide.Research,production,market and service are integrated one unit.Our categories are tripod turnstile,flap turnstile,swing turnstile,access control system,smart card,electronic lock,control board,power box,road barrier, Anti-static tester and all accessories.What a surprise,we are searching new security field actively.
By modern operation and management mode,efficient and scientific product engineering method and quality administration system,we control strictly all links of projects,including program design and proof, project progress,and system test.Then,our products and service are in the top grade in the world.
As a navigator of security system,our company provide top quality products all the time,especially the intelligent channel technology and access control system.Rely on core technology of intelligent channel,subtly market insight,and rangy vision,our company has proved to be the pacemaker and forerunner of security system.
Look forward to the future,we keep a foothold of innovation.We will bring back the best products and optimal service to our noble clients.
Company Target:Innovative products and solution,higher value,to be the full-scale one-up supplier
Management idea:Fall for all clients,creat international brand
Enterprise soul:Value comes from creation,reputation above all else

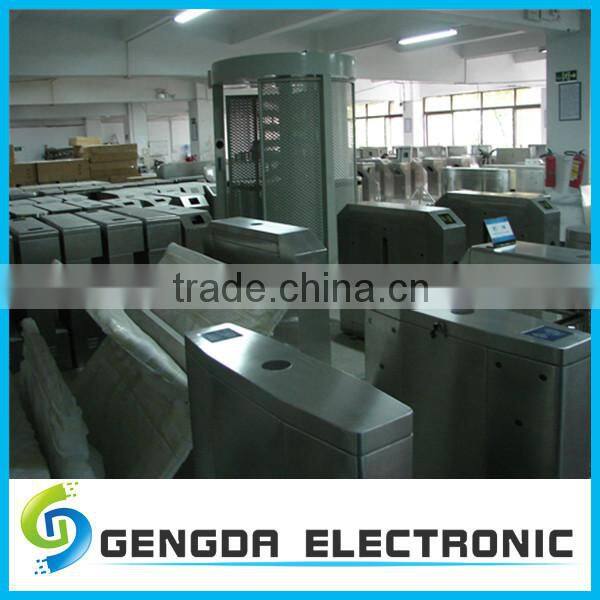

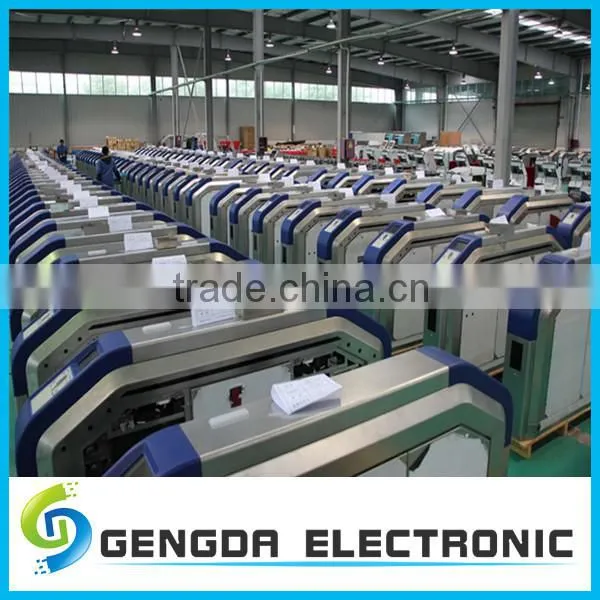

Enterprise show:
