Specifications
Place of Origin:SD/CNBrand Name: HD
Model Number :CRI200K
Color:green and blue
CRI200KA

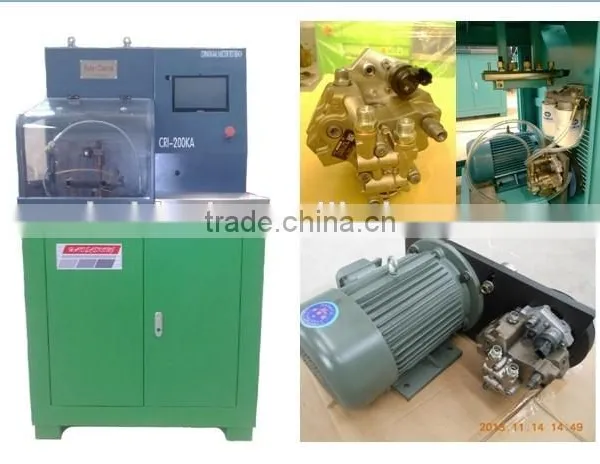

Products introduction:
CRI200K is a highly effective quick common rail injector performance testing equipment. The product isable to detect the performance of each brand of common rail injector,such as Bosch, Denso, Delphi, Siemens, Xinfeng etc.
The system independent research and development, data can be updated at any time to upgrade, the operation is simple, convenient and quick.
The precise fuel temperature control system, high-precision flow, pressure sensor, high strength protective door, safe and reliable.
It entirely in strict accordance with the Bosch EPS200 test step to detect.
The equipment to imitate the BOSCH EPS200 test steps for testing, with original BOSCH high-pressure common rail pump 0 ~ 1850 bar rail pressure, automatically adjust the rail pressure ,It can test the injectors of BOSCH, SIEMENS, DELPHI, DENSO production.Industrial computer control, the Windows system, touch screen operation, measurement of oil system is using sensor system to measure ,there are more than 600 kinds of fuel injector can query, storage data. The product performance is stable, accurate measurement, organic glass protective door, easy to operate, safer.
Product features
1. Industrial computer control, the Windows system, touch screen operation;
2. Oil is measured by the sensor by 10.4 "LCD display;
3. With original BOSCH high-pressure common rail pump 0 ~ 1850 bar rail pressure;
4. Real-time measurement of rail pressure and high-voltage protection function;
5. Injector pulse width of drive signal and frequency adjustable;
6. Injection time can be set free;
7. There are more than 600 kinds of fuel injector can query, storage data.
8. Short circuit protection function
9. Measurement precision, the operation is simple, convenient and quick, low noise and energy saving
Function :
1. Can test brand : BOSCH,DENSO,DELPHI,SIEMENS;
2. Can test only one injector.
3. Test sealing of high pressure common rail injectors
4. Test pre-injection of high pressure common rail injectors
5. Test maximum amount of oil of high pressure common rail injectors
6. Test the start oil of high pressure common rail injectors
7. Test the back flow of high pressure common rail injectors
8. Test the solenoid valve performance of common rail injector
9. Test the flushing of common rail injectors
10. With query and store data of the function
Technical parameters:
| Main motor | 4kw |
| Electricity | 380V, 50Hz, 3 phase or 220V, 60 Hz, 3 phase |
| Working pressure | 0-1850bar |
| Main tank | 40L |
| Electric heater | 1KW |
| Physical size(MM) | 880*650*1480 |
| Net Weight | 280kg |
