multiple channel 3g sd card car dvr with gps tracker support 4 cameras
Overview

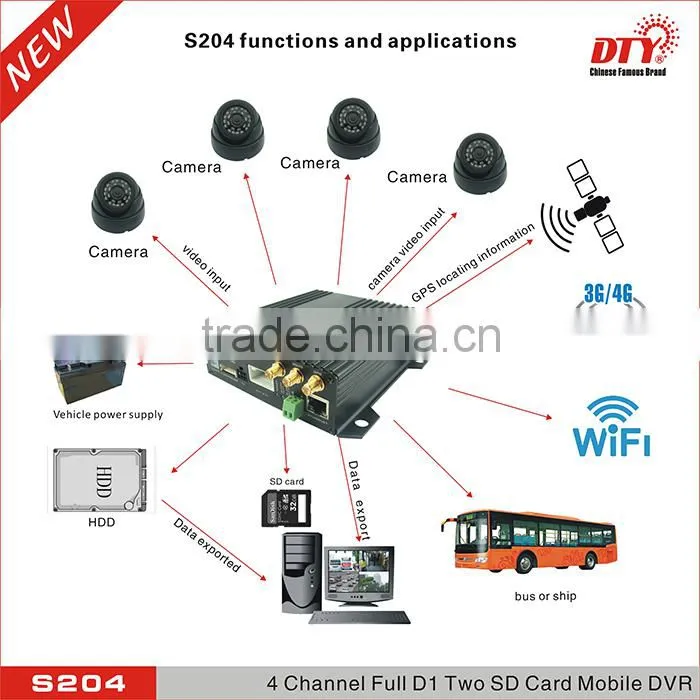

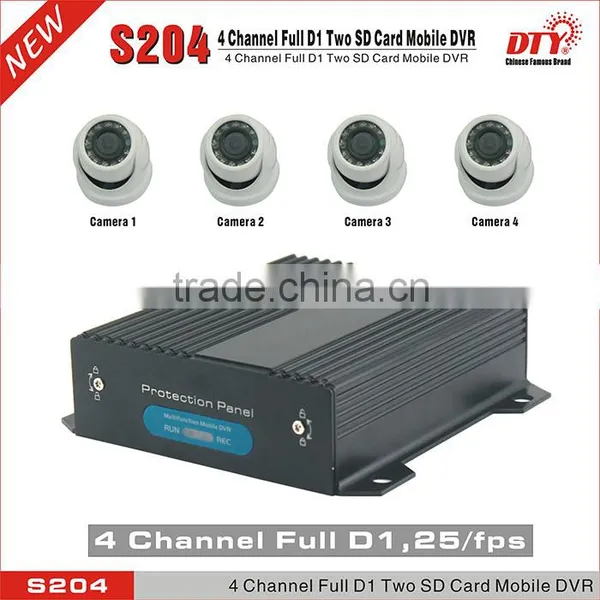

S204 3g car dvr with gps tracker is a professional,rugged,solid state DVR desined for in-vehicle recording.S204 records up to 4 channel video and audio locationdata prom built-in GPS(optional).It supports dual SDcards up to 256GB for monery storage.And it also supports extensible fuction such as GPS,WIFI,3G,4G,S-sensor,ect.S204 series can work with all CCD/CMOS cameras,and can power 4 cameras directly.It is a new in-vehicle recording system that you can rely on.
Application

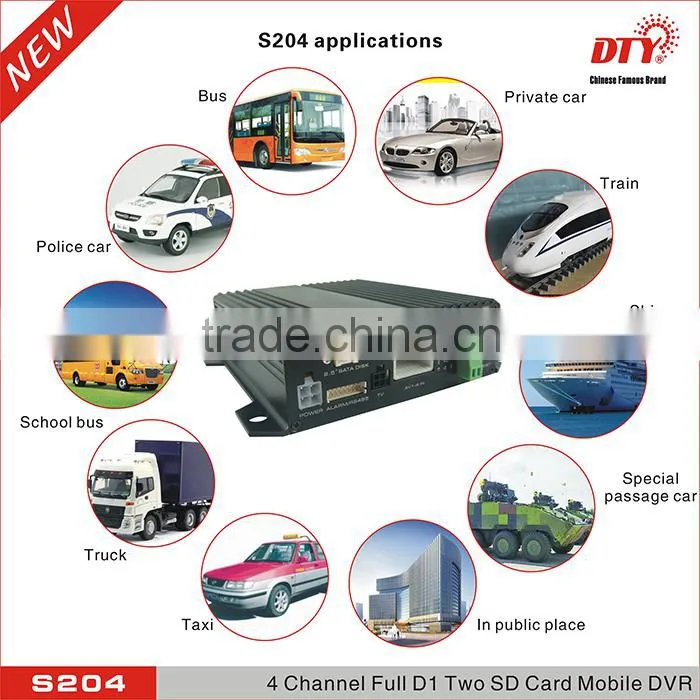

Main application : Taxi,bus ,school bus,private car,police car,truck,special passage car,ship, in-public place.

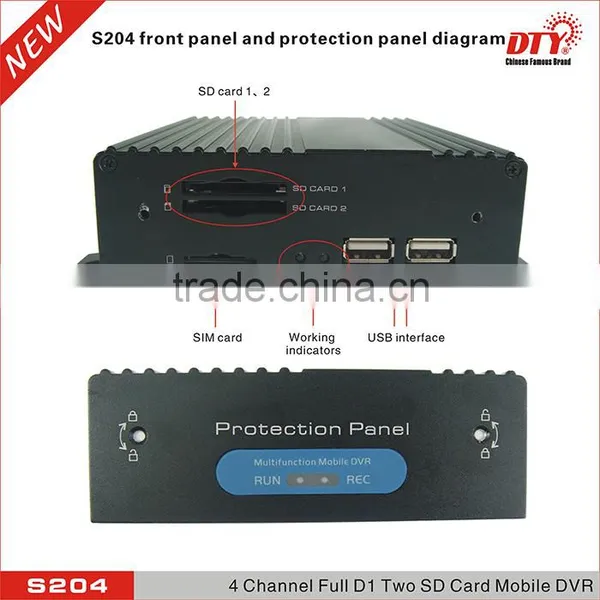

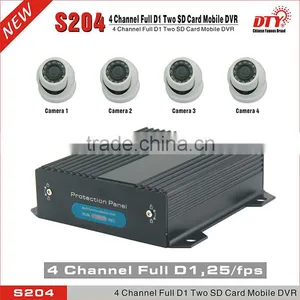

Pictures
Certificate
Features
(1) H.264 Video compression format.
(2) Supports Manual Record, Alarm record and Scheduled Record.
(3) Video resolution: D1/HD1/CIF/QCIF selectable for each channel.
(4) Frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel.
(5) Supports 4 channels full D1 recording and playback simultaneously.
(6) Supports two SD cards,each SD Card up to 128GB,cycle recording.
(7) Supports 6 alarm input and 2 alarm output.
(8) Power-off delay to guarantee the DVR would shut down normally to keep recorded files safe when an emergency occurs.
(9) Support DC12V, 3A power out, can power 4 cameras directly.

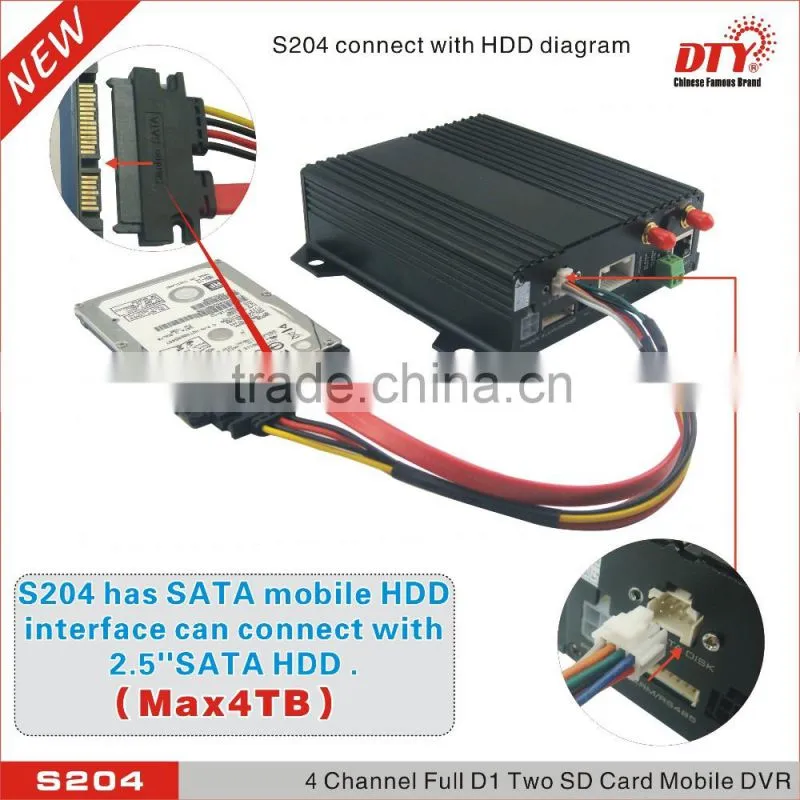

(10) Equiped with external HDD interface,can connect an external HDD.
(11) Support 2 PTZ control interface.
(12) Support GPS,Wifi,3G/4G
(13) Certificate:CE, FCC, RoHS.
Models
Model |
Descriptions |
||||
S204 |
Basic model(basic functions such as REC,PLAYBACK,ALARM,VGA,USB,IR,HDD,SD,TV-OUT,etc.) |
||||
S204G |
Basic model + GPS |
||||
S204W |
Basic model + WIFI |
||||
S204-3G |
Basic model + 3G |
||||
S204-4G |
Basic model + 4G |
||||
S204-GW |
Basic model + GPS + WIFI |
||||
S204-3GW |
Basic model + GPS + WIFI + 3G |
||||
S204-4GW |
Basic model + GPS + WIFI + 4G |
||||
Parameters
Power Supply |
Car battery(For mobile monitoring)/Power adapter(For other applications) |
|||||
Power input |
DC12V~DC36V(Standard power input:DC12V~DC24V, ultimate power input: DC8V~DC38V) |
|||||
Power output |
DC12V/3A |
Provide power for cameras,with built in re-settable fuses. |
||||
Working Current |
250~380 ±10 mA (the reference voltage is:DC24V) |
|||||
Working temperature |
- 10℃~ + 50℃(ultimate working temperature: - 20℃~ + 60℃) |
|||||
Storage interface |
Standard SATA II HDD interface, SD / SDHC Card |
|||||
Storage Capacity |
2.5’’ SATA II 4TB HDD,2*128GB SD/SDHC Card(suggest to use the SD Card with the speed over Class10) |
|||||
Storage mode |
stop when full or cycle recording |
|||||
Camera |
CCD/CMOS |
|||||
Video Technology |
H.264(Data encryption, need to use the playback software to play the videos) |
|||||
Video Standard |
PAL system or NTSC system |
|||||
Video input |
Input standard: input frequency: Vp-p=1.0V,input impedance: 75Ù |
|||||
Resolution |
4ch D1 full real time recording, also support the playback function while recording. |
|||||
Total frame rate |
PAL(1~100FPS optional)and NTSC(1~120FPS optional) |
|||||
Video quality |
Main stream/Extra Stream mufti-grade adjustable |
|||||
Output signal |
CVBS(4ch video + 4ch audio,but only support 1ch audio output at a same time) |
|||||
Ethernet Port |
One 10M/100M Ethernet port (RJ45) |
|||||
Alarm input |
6ch independent alarm input port (with isolating function) |
|||||
Alarm output |
2ch independent alarm output port.(4 ch DVR has two red indicator light display alarm output state.) |
|||||
USB Standard |
2 USB 2.0 port(support USB back up and system upgrade) |
|||||
Delay power off |
Delay duration :1minutes (default), we can OEM the delay duration. |
|||||
3G/4G |
Support 4CH D1 real time video and audio transmission, including GPS info. |
|||||
Other technology |
RS485(for PIZ connection), 2.4G WIFI , GPS(NMEA-0183) Timing and position |
|||||
DVR dimension |
146(Length)*138(Width)*40(Height)mm |
|||||
mainframe weight |
Around 500g |
|||||
Shipping
We have strong cooperation with DHL, UPS, FEDEX, EMS, TNT.
You also can choose your own shipping forwarder.
Services
1.Any inquiries will be replied within 24hours
2.OEM available:
1)Customized logo or color box
2)Any your idea on camera, we can help you to design and put it into production
3.After-sale service:
1) All products will have been strictly Quality checked in workshop before packing
2) All products will be well packed before shipping.
3) All our products have 1 year warranty, and we are sure our products will be free from maintenance
within warranty period in general.
4.Payment:
You can pay for the order via: T/T,Western Union/MoneyGram,paypal
