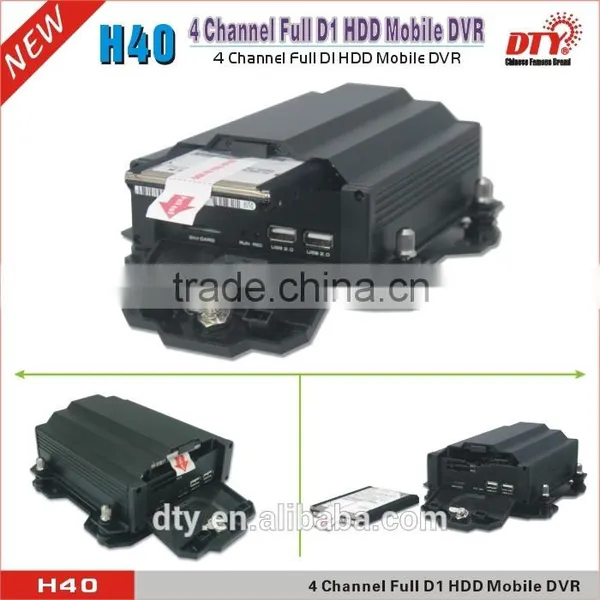

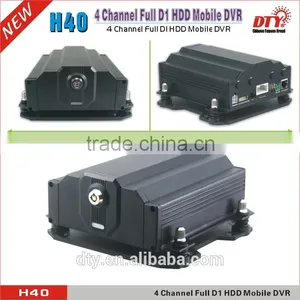

Help CenterDTY 4ch Full D1 Hdd Gps 3g 4g Mobile Dvr Car Dvr Vehicle Surveillance DVR | H40
Related Products
-
4ch H.264 Ahd Bus Mobile Dvr Gps Mdvr Surveillance System Supports Gps Wifi 3g 4G |X9sUS$ 124 - 272MOQ: 1 Piece -
DTY 4CH Full D1 H.264 3G 4G WIFI GPS HDD Vehicle MDVR Car Truck Bus DVR, H40US$ 96.5 - 245MOQ: 1 Piece
-
8CH H.264 HDD & SD Card Full D1 MDVR Mobile Video Surveillance Recorder System: H80US$ 272.00 - 272.00MOQ: 137 Pieces
-
8 Channel Hdd Mobile Vehicle Bus Truck Car Video Dvr Recorder With Gps 3g WifiUS$ 94.5 - 108MOQ: 1 Piece
-
Wireless 8 Channel Full d1 3g sd Card Mobile Car Dvr With Gps TrackerUS$ 110 - 124MOQ: 1 Piece
Outstanding Features:
1.Basic: Full D1 Recording, 4TB HDD, 256GB SD Card(128GB*2),USB mouse operation, OSD, PTZ, GPS for Positioning and time synchronization, Power off delay
2. Cameras: Power 4 cameras direclty, Support analog cameras.
2.Record type: Boot Record, Manual Record, Alarm record,motion detect record and Scheduled Record
3. Alarm Function: Video Loss, Video Blind, Alarm input, Alarm output, Sending Alarm info by Email.

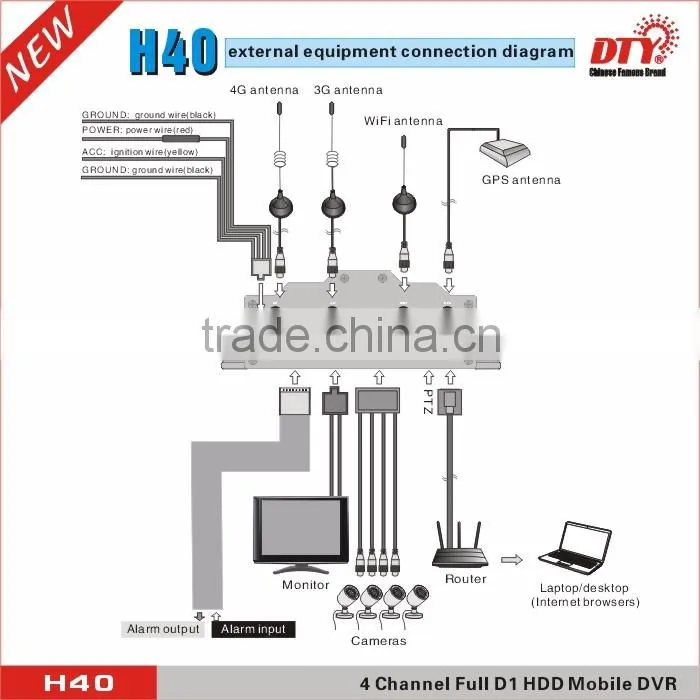

4. Network Service: RJ-45, Email, IE remote view, FTP, 3G, 4G, WIFI, Cloud. Mobile remote monitor on IOS/Windows/Android.
RJ-45 Ethernet Port, Static IP, dynamic IP, Email alarm, FTP, Cloud
5. Other: User administration authority, automatic reboot, system log (and log export), Configuration Import and Export

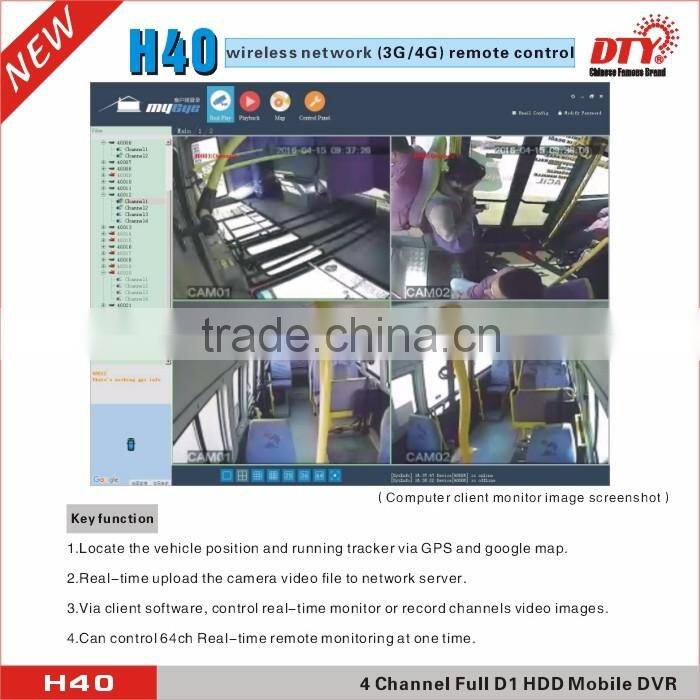

6. Remote management APP: Car Server APP & Car Client App, Cloud CMS APP
4G network Band Configuration:
Module: U8300C:
• LTE-TDD Quad-band
Band 38/39/40/41
• LTE-FDD Dual-band Band 1/3
• TD-SCDMA Dual-band Band 34/39
• UMTS Single band Band 1
• EVDO Single band 800MHz
• CDMA1x Single band 800MHz
• GSM Quad-band 850/900/1800/1900

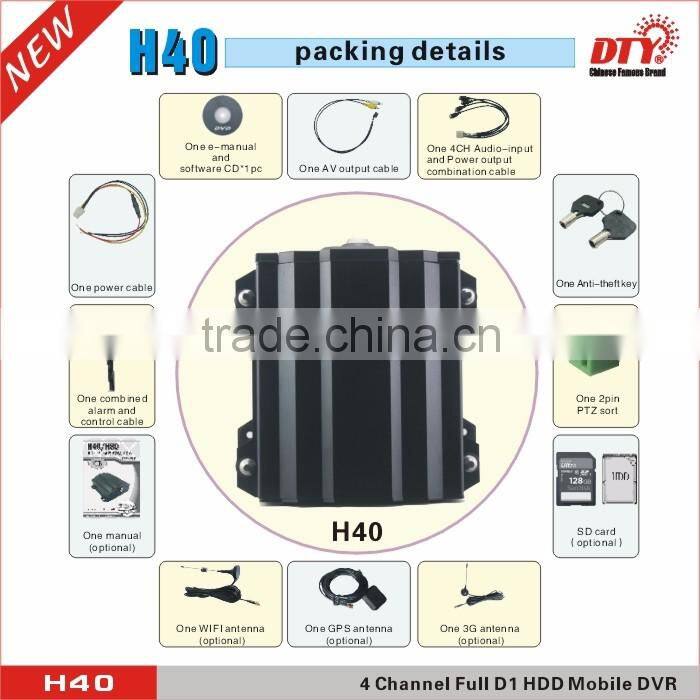

Accessories:
Specifications:
Specifications | ||||||
Model |
H40 | |||||
CPU |
Hi silicon |
|||||
Basic |
REC,PLAYBACK,ALARM,VGA,USB,IR,HDD,SD,TV-OUT ,etc. |
|||||
Optional |
GPS |
Wi-Fi |
3G/4G |
|||
Power |
Car battery(For mobile monitoring)/Power adapter(For other applications) |
|||||
Power |
DC12V~DC36V(Standard power input:DC12V OR DC24V,ultimate power input:DC8V~DC38V) |
|||||
Working |
250~380±10 mA (the reference voltage is: DC24V) |
|||||
Power |
4CH |
DC12V/3A |
(Provide power for cameras,with built in re-settable fuses.) |
|||
8CH |
DC12V/6A |
|||||
Working |
- 10℃~ + 50℃ (ultimate working temperature: - 20℃~ + 60℃) |
|||||
Video |
H.264(Data encryption,need to use the playback software to play the videos) |
|||||

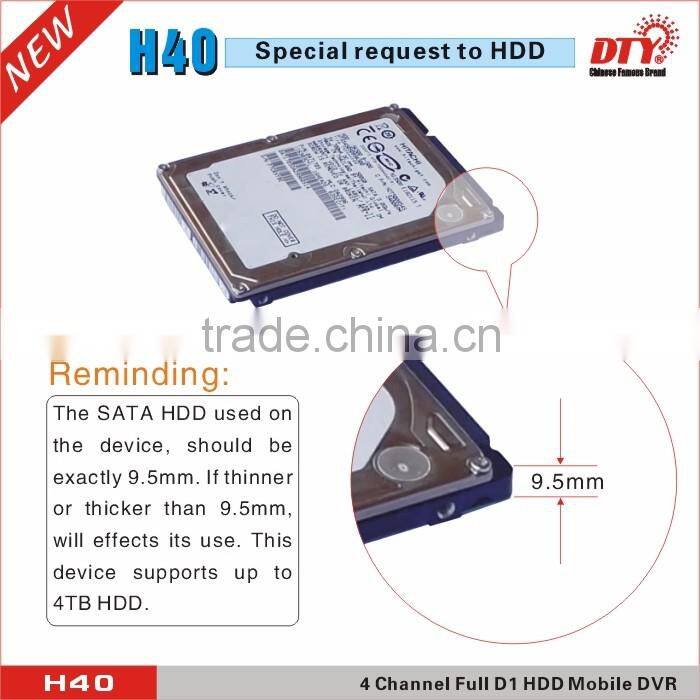

Storage |
SATA Standard HDD interface, SD/SDHC Card |
|||||
Storage |
256GB SD/SDHC Card(two 128GB SD Card, suggest to use the SD Card |
|||||
Storage mode |
Stop when full or cycle recording |
|||||
Camera |
Any CCD or CMOS |
|||||
Video |
PAL system or NTSC system |
|||||
Video Input |
Standard:input frequency:Vp-p=1.0V,input impedance:75Ω |
|||||
Resolution |
4ch full D1 real time synchronized recording, also support playback and upload in the process of recording. |
|||||
Total Frame rate |
4CH |
PAL(1~100FPS optional)and NTSC(1~120FPS optional) |
||||
8CH |
PAL(1~200FPS optional)and NTSC(1~240FPS optional) |
|||||
Video quality |
Main stream/Extra Stream mufti-grade adjustable |
|||||
Output signal |
4CH |
CVBS (4ch video + 4ch audio,only support 1ch audio output at a same time) |
||||
8CH |
CVBS(8ch video + 8ch audio only support 1ch audio output at a same time) |
|||||
Ethernet Port |
One 10M/100M Ethernet port (RJ45), Support 1ch IPC input in special circumstances |
|||||
Alarm input |
6ch independent alarm input port( with isolating function) |
|||||
Alarm output |
2ch independent relay alarm output(4ch model has two red alarm indicators) |
|||||
USB Standard |
2 USB 2.0 port(support USB mouse/keyboard operation) |
|||||
Delay |
Delay duration :1minutes (default), we can OEM the delay duration. |
|||||
3G/4G |
Support 4CH D1 real time video and audio transmission, including GPS info. |
|||||
Other |
RS485(for PIZ connection), 2.4G WIFI , GPS(NMEA-0183) Timing and position |
|||||
Mainframe |
146(Length)*138(Width)*45(Height)mm |
|||||
Mainframe |
About 500g
|
|||||

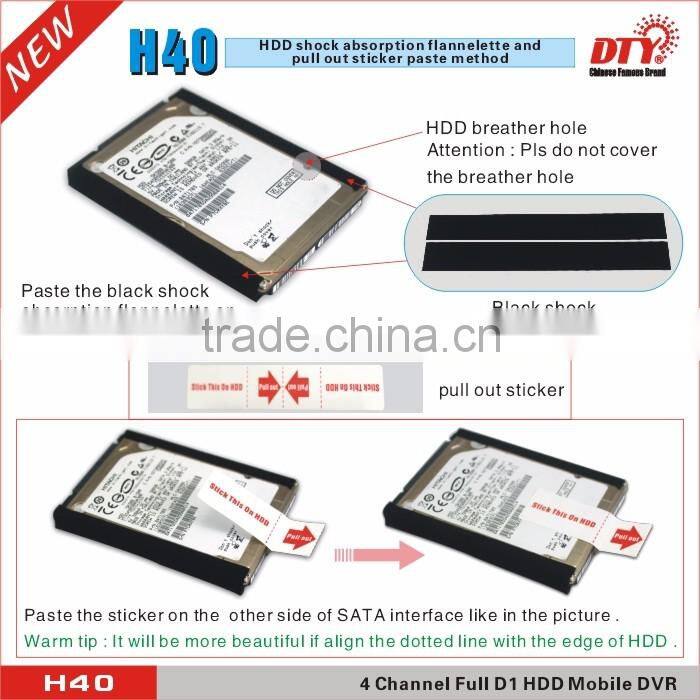

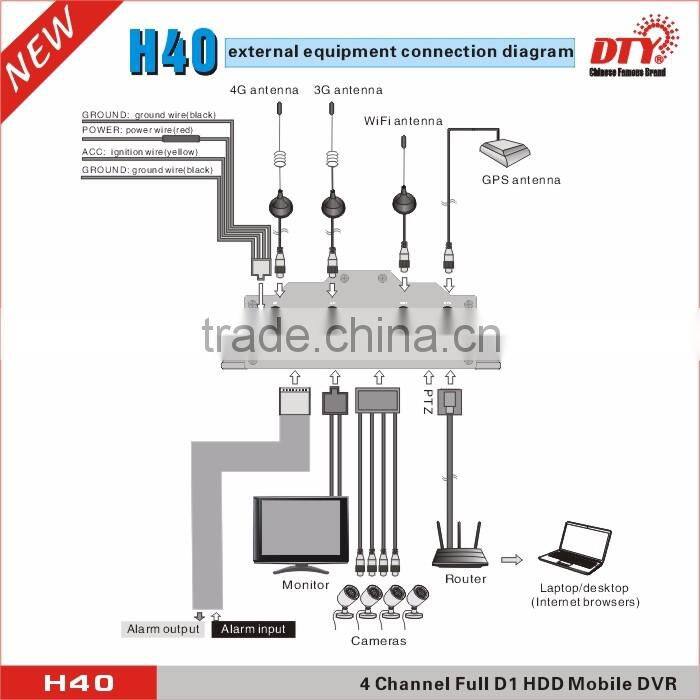

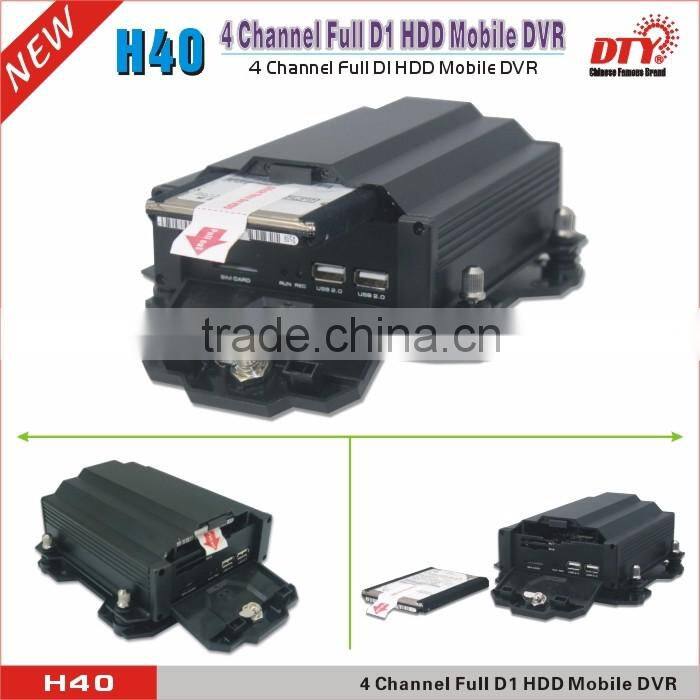

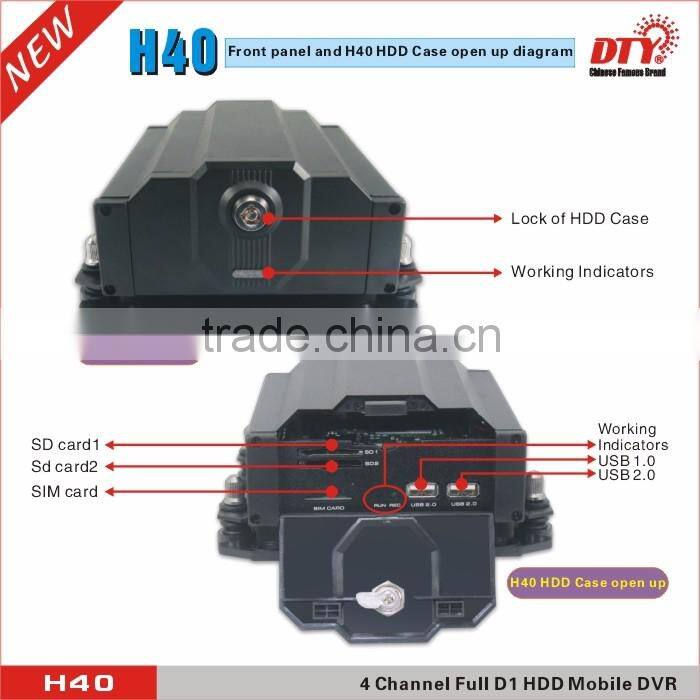

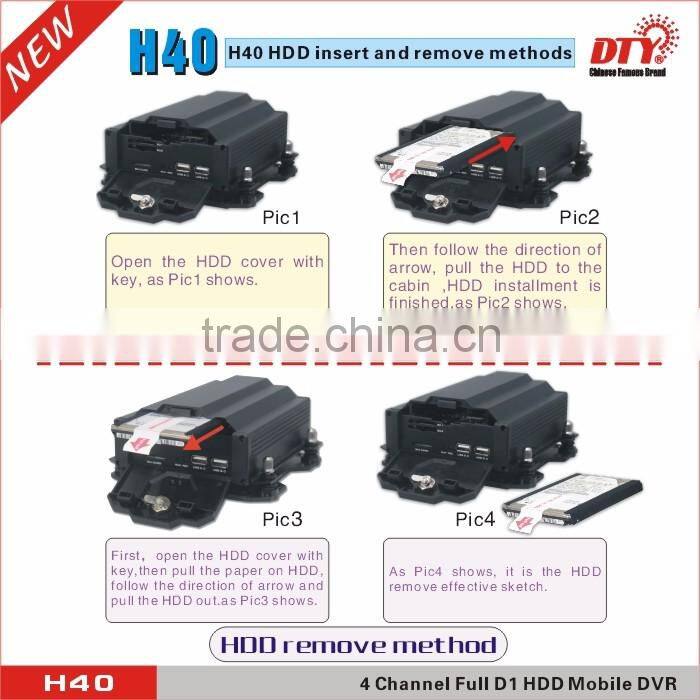

Pictures:
Net Service:
Skype: dty2009804 Wechat / What's App:+86-13266827374
