SECURITY SYSTEM SWING GATE
Security system swing gate main features:
1 Stainless steel housing
2 Bi-direction pass
3 Arms auto drop when power off
4 Arms auto rise up when power on and auto stop on abstacle
5 Traffic light indicator
6 RFID interface

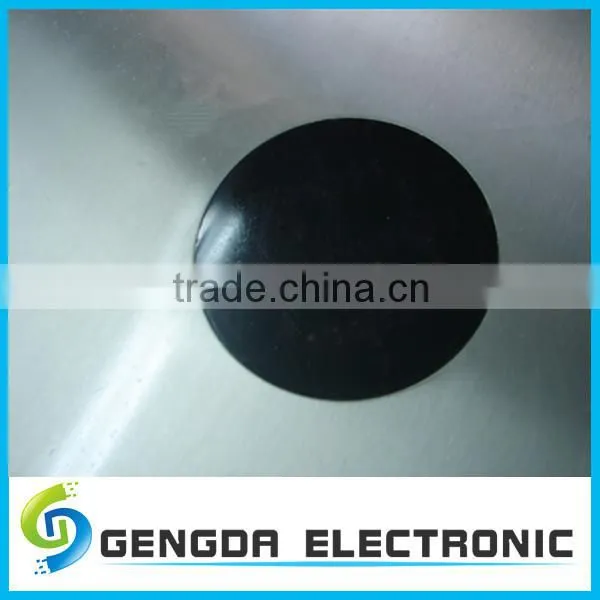

7 Photoelectric inspection
8 Passenger counter (optional)
9 If the passenger does not pass in the valid time, the passenger will be locked up again.. the valid passing time can be set up by operator
Security system swing gate specifications: .
Brand name |
Security system swing gate |
Housing material | 304# stainless steel, corosion resistant |
Dimension | 350*280*990mm |
Channel width | 900 mm |
Lifetime | 3,000,000 times |
Control mode | semi-automatic / hand movement |
Passage way | one-way / bothway |
Working environments | indoor / outdoor |
Power source | AC220V |
Frequency | 50 Hz |
Working temperature | -15°C—75°C |
Working humidity | 0~95%RH coagulation free |
Pass speed | 30 ≤ 40 persons/min |
Input interface | COM switch signal |
Communication Connection | RS485 |
railing-off against power off | Yes |
Waterproof and Dustproof | above IP32 |
Working noise | less than 65 db |

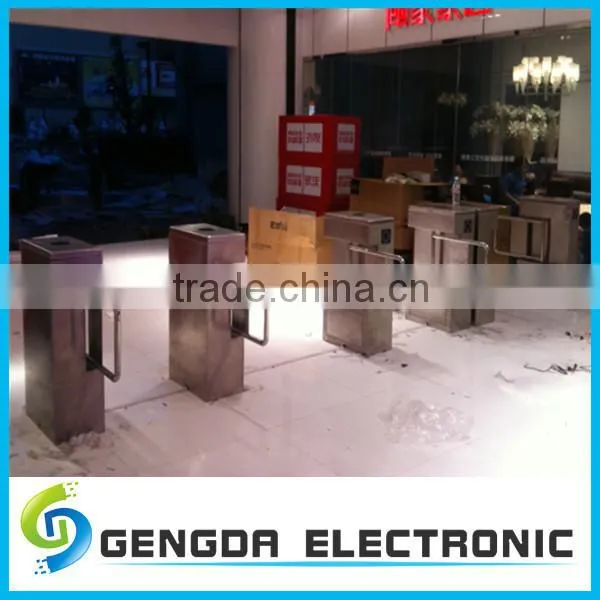

Application:
Security system swing gate is your ideal choice for entrance control and widely applied in:Community, school, bank, seabeach, shopping center and so on.
Other place:
1. Industrial zones
2. Administrative buildings
3. Recreation centers
4. Amusement parks
5. Financial institutions
6.Government agencies
7. Airports
8. Bus and railway stations
9. Offices.
Packing:
Paper box inside
Wooden box outside

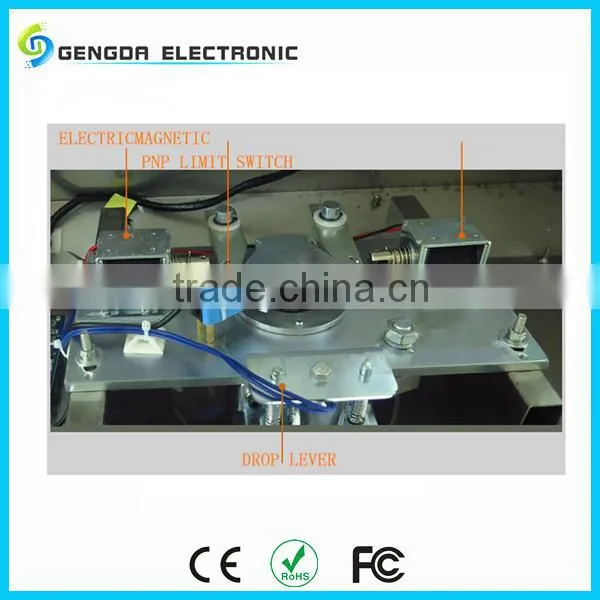

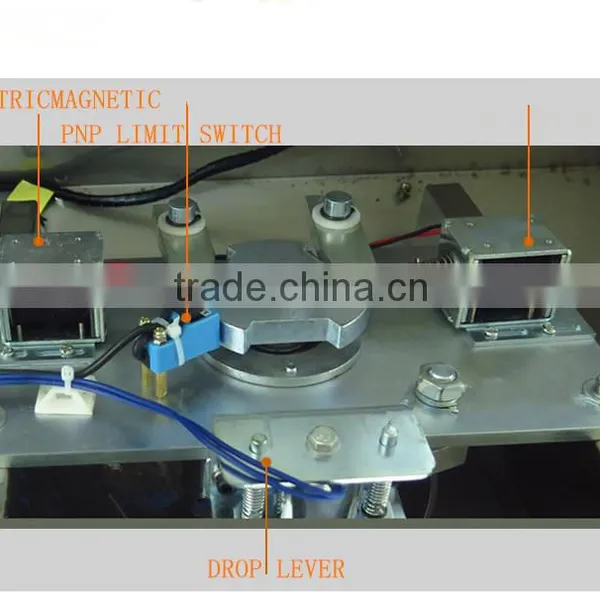

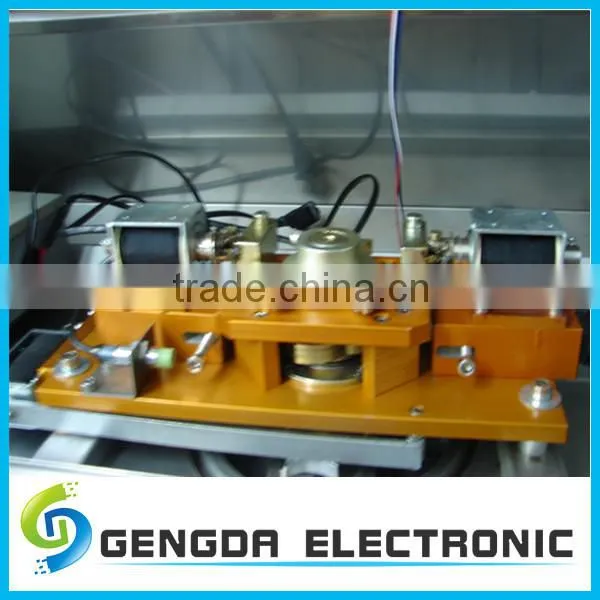

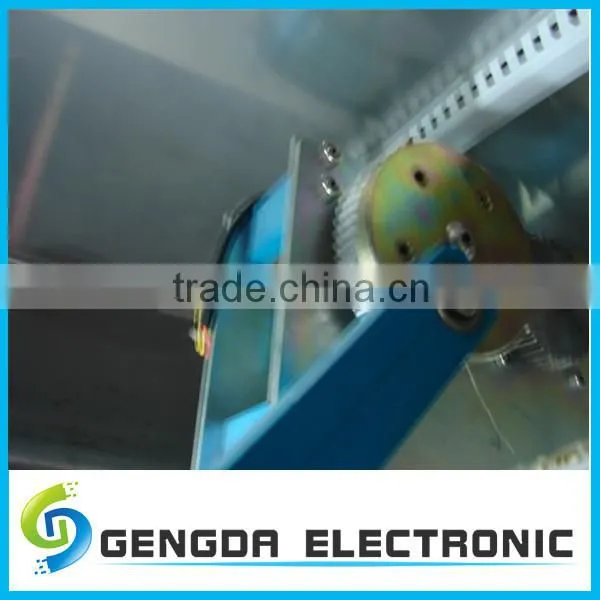

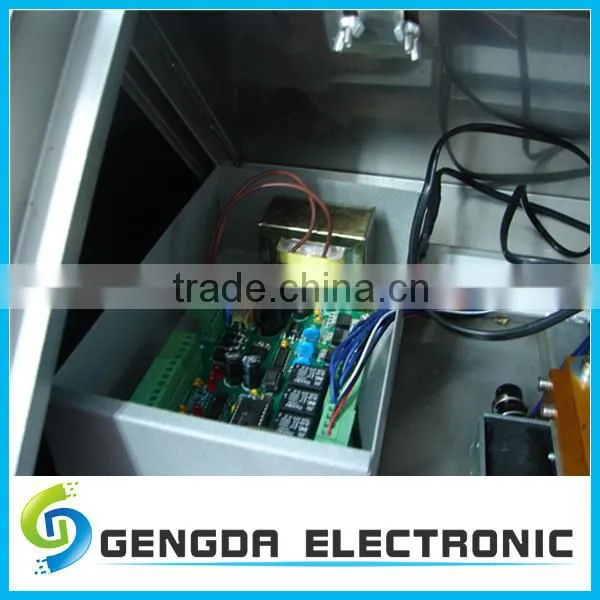

Security system swing gate product overview: Security system swing gate detail overview:
