Specifications
Place of origin:ChinaPower:4KW
Net weight:280KG
Brand :HD
Model:CRI200DA

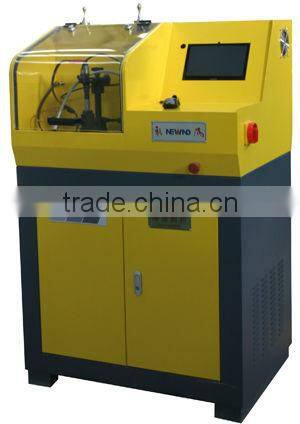

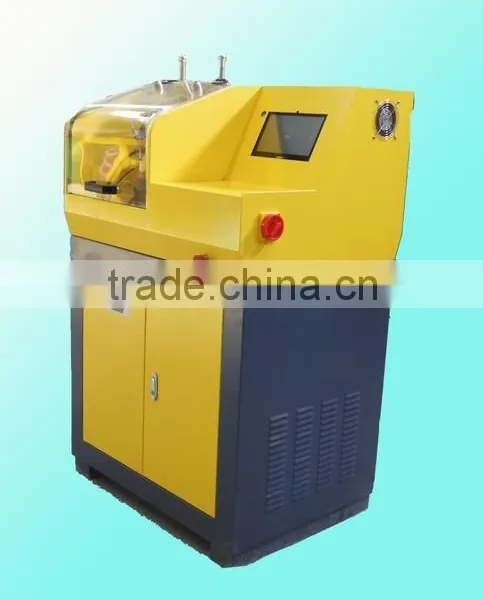

Product Description: CRI200DA is a highly effective quick common rail injector performance testing equipment.
The system independent research and development, data can be updated at any time to upgrade, the operation is simple, convenient and quick.Delphi, Denso and Siemens brand can also detect.
CRI200DA entirely in strict accordance with the Bosch EPS200 test step to test.
Functions:
Equipped with rapid detection common rail injector operating software and standard database ,and the computer automatic testing.
For injector testing include:
1 common rail injector flushing
2 detection of common rail injector solenoid valve performance
3 detection of common rail injector sealing
4 detection of common rail injector working condition of the injection quantity
5 detection of common rail injector working condition of oil return value
6 contrast standard data obtained results directly
7 set up under the pressure and the pulse width of the spray atomization and perspective
Can be automatically follow measuring
Accurate temperature control system of the fuel,high precision flow, pressure sensor
Fast, reliable injector mounted fixture and adapters
High-strength transparent protective cover,with open cover shutdown function,work safety and reliability.
Built-in wireless network, and have data remote transmission and remote video function (200KA)
Technical parameters:
Main motor: 4KW
Electricity: 380V,50Hz,3 phase or 220V,60 Hz,3 phase
Working pressure:0-1850bar
Main tank: 40L
Electric heater: 1KW

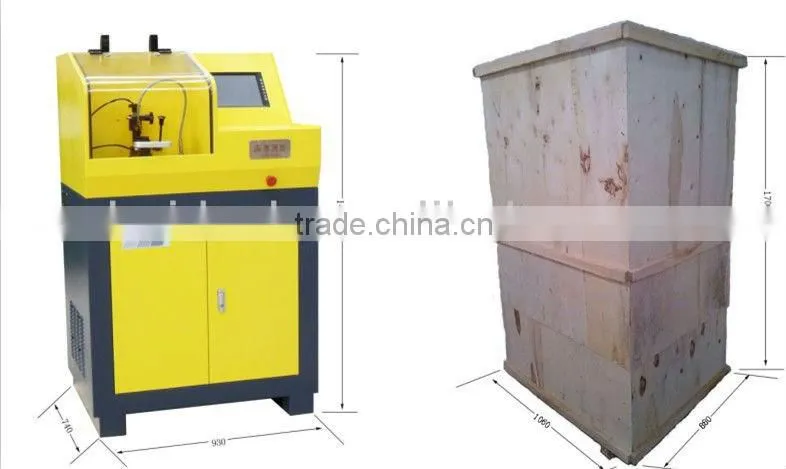

Physical size(MM):930*740*1460
Net Weight: 280kg
We do our best to provide you with the products of high quality and reasonable price, welcome to contact with us!
For more detail ,please feel free to contact us ,we will try my best to service you.
Your choise,our service.
Tel: 0086-0538-8530053
Mobile phone: 8613563448723
Skype:vivien-haideck
http://haideck.en.china.cn
