Toplovo TL007 Handheld GPS Tracker Smaller Than Leaf

Hardware Description

1. SOS;    2. LED;   3. Speaker;   4. SIM card Slot;    5. USB;

Start up:

TRACKER:Do charge the battery for 8 to12 hours after first use. Then, the battery can be charged fully in 4-5 hours. In order to protect the device please use the battery and charger which come with the tracker.

SIM CARD:Please be sure that there is call display but no call transfer, and PIN code is off.

Switch on:

Please take the unit outdoors or near the window. The device will be switched on after inserting the sim card.

Switch off:

The device will be switched off after taking out the sim card.

Set the authorized number.
There are 5 numbers can be authorized.
Send SMS“password+A1, +country code + mobile number” to set the first authorized number.
Send SMS“password+A2, +country code + mobile number” to set the second authorized number.
Send SMS“password+A3, +country code + mobile number” to set the third authorized number.
Send SMS“password+A4, +country code + mobile number” to set the fourth authorized number.
Send SMS“password+A5, +country code + mobile number” to set the five authorized number.
E.g. send “123456A1,+8613812345678” to tracker to set +8613812345678 as the first authorized number. Send “123456A2, +8613898765432” to tracker to set +8613898765432 as the second authorized number.(default password: 123456. +86 is the country code of China. A must be capital. No space in the command)

Check the authorized numbers and other setting.
Send SMS: “password +G” to the tracker it will reply all the authorized numbers and other setting.
E.g. send “123456G” to the unit. It will reply all the authorized numbers and other setting.

Set the local time

Send SMS “password + L + time zone” to set the local time
Note: + in the time zone means east,- in the time zone means west. Time zone must be 2 digitals. So Beijing time zone should be like this: +08
E.g. send “123456L+08” to set the time to the Beijing time.

Change the password.
Send SMS “old password + H + new password” to change the password.
Note: H must be English in capital, send it to tracker to modify the password. (Default password: 123456)
E.g. send “123456H456789” means change the password123456 to 456789
The pre-set password won’t be erased by changing SIM card.
Be sure keep the password in mind, otherwise you have to update the software to restore the original setting in case of losing the password.
The password must be 6 digits, If not the tracker can not recognize the password.

Low battery alarm
Send SMS “password + N (0/1), + xx” to set the low-battery alarm.
Note: N0 means turn off the low-battery alarm function; N1 means turn on the low-battery alarm function. xx should be <45 and must be tow digitals.
E.g. send“123456N1,30” to the tracker means when the battery is lower then 30%,it will send a alarm to the authorized number. Send“123456N0,30” to the tracker means turn off the low bettery alarm function.

GPRS setting (based on a fixed platform)
1. Make sure the GPRS function of the SIM CARD is opened
2. Get APN from your cellular carrier (GPRS access point name).12.3. Send the device 123456B to get IMEI number and make sure this IMEI number has been registered on the platform, if not, please send it to the seller, let them contact factory.
4. Set the APN, IP & PORT
   Send SMS “123456C$$$$,IP:Port” to set the APN, IP and port. IP and port is about the server you use.
Note: Make sure that the IP should be the public IP. If your pc is in Internet, you must know your public IP.
E.g. send SMS“123456CCMNET,119.122.101.91:9289”. CMNET is the APN of China Mobile company, please set the APN of the cellular company you use.   119.122.101.91:9289 is the IP & PORT of our own server.
5. Send command 123456D to open GPRS
     Send command 123456E to close GPRS
   Recommend using the GPRS, it is more convenient to monitor your people or fleet.

Accessories:

Standard: 1xTracker,  1xUSB cable,  1xCharger(US&EU standard),  1xManual,  1xLanyard

Optional(Pay for it):  Car charger,  USB Convertor(Set parameter via pc), Waterproof bag(IP6/7),  More usb cable/Charger(US standard,EU standard)

Cautions:

Please comply with the instructions to extend the unit life:

1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry.

2. Don’t use & store the unit in dusty places.

3. Don’t put the unit in overheated or overcooled places.

4. Handle carefully. Don’t vibrate or shake it violently.

5. Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent.

6. Don’t paint the unit, this may cause some foreign materials left in between the parts.

7. Don’t disassemble or refit the unit.

8. Please use and charger provided by manufacturer. Using other chargers will cause unwanted situation.

 More Pictures:

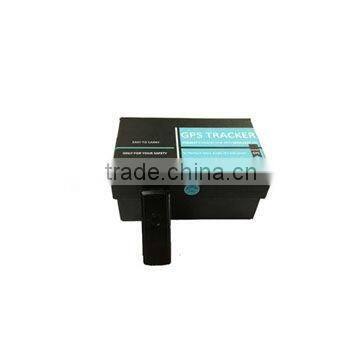

Packaging

Mini Size
