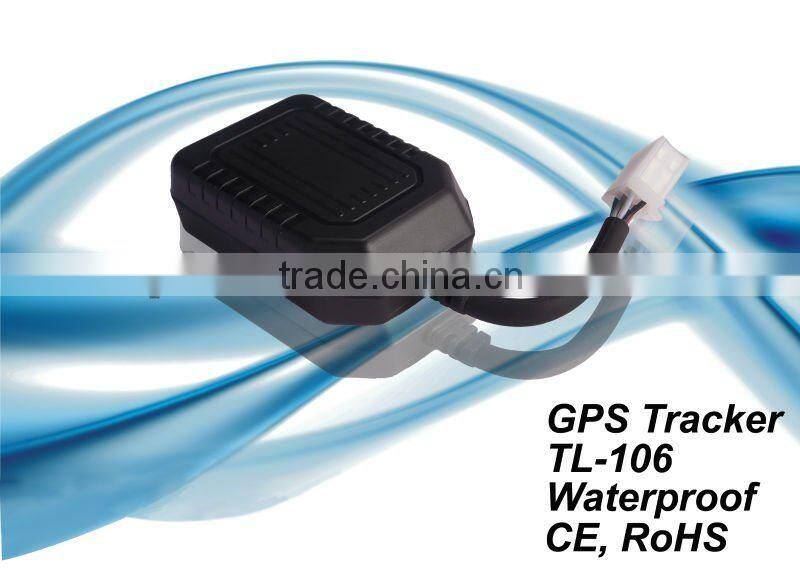

TL-106 Waterproof motorcycle gps
1. Introduction
Working Based on existing GSM /GPRS network and GPS satellites, this motorcycle tracking solution is a professional system that consists of high sensitive and reliable motorcycle gps trackers and server tracking software. Not only transmit the longitude and latitude coordinate to your cell phone by SMS, but also transmit the coordinate, vehicle status and alarm information to the designated server by GPRS. By this you can know where the motorcycle is, where it had been to, what the status is. You can also stop the motorcycle by cutting off the circuit and fuel. What’s more, it is waterproof so that you won’t be afraid the rain again. This solution can be widely used in the vehicle tracking, valuable assets monitoring fleet management area.
2. What’s new?

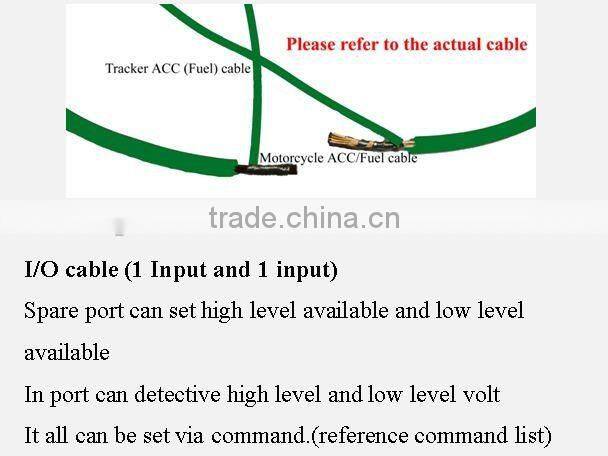

Ø One output and one input cable
Ø Waterproof shell with internal antenna.
Ø We remove the most complex part of installation so that it is easy to be installed.
Ø Server software is especially designed for tracking a large quantity of trackers.
3. Main Features
Tracker |
Software |
|
Waterproof Real-time locating 1 digital output 1 digital input Geo-fence alarm Speeding alarm Low power alarm Power-lost alarm Cut off the power/fuel Customizations are welcome |
Based on Google map Support multi-users Real-time tracking History replay Report download Speeding alarm Geo- fence alarm Power-lost alarm Storage data for one month Customizations are welcome |
4. Applications
Motorcycle and electronic bike monitoring and management
Traffic police dispatch management
GPS tracking service
Guard against thief system
5. Specification
Content |
Specs. |
Dimension |
78mm x 54mm x 27mm |
Weight |
125g |
Network |
GSM/GPRS |
Band |
900/1800Mhz 850/900/1800/1900Mhz |
GPS chip |
SIRF3 chip |
GPS sensitivity |
-159dBm |
Digital input |
9-36V DC |
Analog Input |
0-15V |
Cold start |
42 sec. |
Warm starts |
38 sec. |
Hot start |
1 sec. |
Battery |
Chargeable 3.7V 1000mAh battery |
Operation temperature |
-40°C to +75°C |
Humidity |
5%--95% non-condensing |
