TL-108 gps vehicle system
1. Introduction

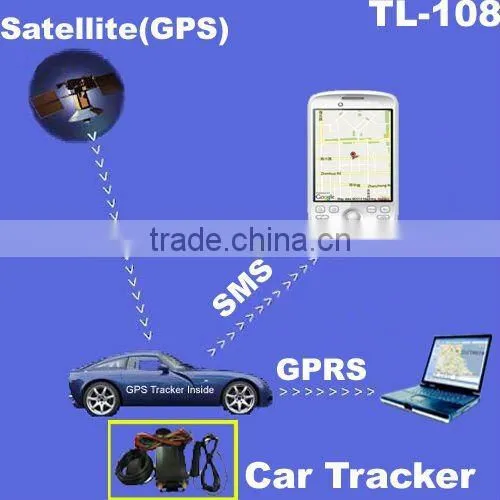

Working Based on existing GSM /GPRS network and GPS satellites. This vehicle GPS tracking solution is a professional system that consists of high sensitive and reliable car GPS trackers and server tracking software. Not only transmit the longitude and latitude coordinate to your cell phone by SMS, but also transmit the coordinate, vehicle status and alarm information to the designated server by GPRS.By this you can know where the vehicle is, where had it been to, what the status is and you can control the circuit and fuel also. What’s more, it supports hand-free phone call between the driver and call center. This solution can be widely used in the vehicle tracking, valuable assets monitoring, fleet management area.
2. What’s new?
Ø Support hand-free phone call between driver and call center. This function is very useful for taxi, rental vehicle, ambulance and police car.
Ø Easy to install. Designed with inner relays, we remove the most complex part of installation.
Ø The server software was especially designed for tracking a large quantity of trackers.
Ø The server software is very smart, amazing software that can work well in a server with or without fixed IP address. That means you can easy to build the tracking server by a PC that had been connected to internet in case you just want to track not too many trackers. It will save your cost.
3. Main Features
Tracker |
Software |
|
u Real-time locating and tracking on web u History replay u Hand-free phone call with call center u Listen in function u Door detective u ACC detective u SOS alarm u In or out Geo-fence alarm u Speeding alarm u Power-lost alarm u Cut off the circuit or fuel u Customizations are welcome |
u Server based u Based on Google map/Google earth u Support multi-users u Support more than 10000 trackers u Real-time tracking u Set the tracking interval u History replay u SOS alarm u Speeding alarm u GEO fence alarm u Power-lost alarm u Customizations are welcome |
4. Applications
u Rental vehicle monitoring and management
u Taxi/ ambulance/police car dispatch management
u Fleet management
u GPS tracking service
5. Specification of device
Content |
Specs. |
Dimension |
96mm x 64mm x 25mm |
Weight |
150g |
Network |
GSM/GPRS |
Band |
900/1800Mhz 900/1800/1900Mhz 850/900/1800/1900Mhz |
GPS chip |
SIRF3 chip |
GPS sensitivity |
-159dBm |
Input Voltage |
9-36V DC |
Cold start |
42 sec. |
Warm start |
38 sec. |
Hot start |
1 sec. |
Battery |
Chargeable 3.7V 870mAh battery |
Operation temperature |
-40°C to +75°C |
Humidity |
5%--95% non-condensing |
