WHY CHOOSE TOPLOVO?
Toplovo Industrial Co.,Ltd. for over 9 years specialize in R&D innovation, manufacturing superior GPS products in terms of GPS Personal Tracker, GPS Vehicle Tracker, GPS Tracking System and Integrated GPS Tracking Solutions.
Factory Model name TL is short for TopLovo Toplovo's Official Website:
Contact: Cherry Skype: cherry-gps Mobile: +8613500066672
There are many ways to check if a company is a real manufactory. Check the company name on the CE&RoHs certificate papers is one of methods.
Please check the CE and Rohs certification,design patent below:
CE ID: ATE20111393 Password: 799280 websie: http:///english/index.html
RoHS ID: DGC11072510S Password: 072510 websie: /en/
Introduction:

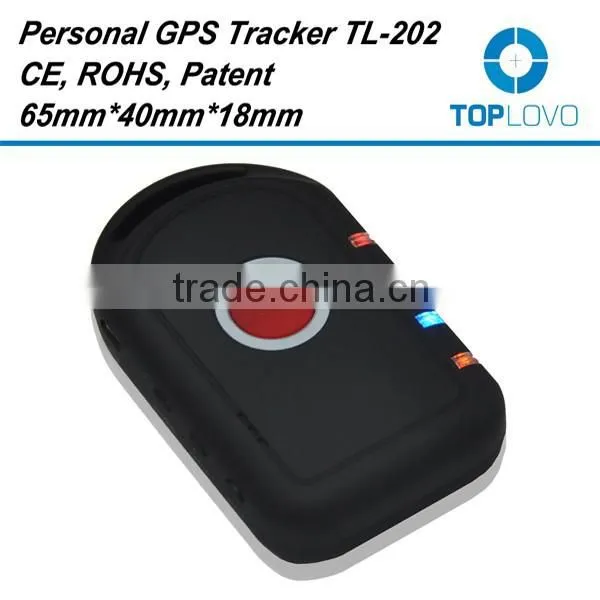

This tracker is a personal remote location device with small size,build-in long standby time battery and easy to use.This tracker can be used as an emergency cellular phone and allows speed dialing 5 numbers for 2-way voice communication. It can sends alert and call the preset numbers for immediate assistance.The alerts include Date, Time, Coordinate, Speed and Map URL link. It will send the coordinate to the designated server by GPRS and then displaying the location by tracking software.
What’s new?
Long battery: 1700mAh Li-battery, 200Hours Standby Time, 60Hours Working Time
Mini size: as small as a car remote controller can be link to the key chain.
Excellent design: Designed by famous designer, it not only a tracker but an artwork also. Especially design for personal and pets using.
Listen in function: you can listen in around of the tracker.
Two way voice function: you can talk to the tracker.
Call to a particular phone number: you can request the tracker to call any number you want.
Features:
1. Real-time locating and tracking: locate and track by SMS or in the tracking software
2. Geo-fence function: It will alarm if it breaches the restricted area.
3. Speeding alarm: It will alarm if it is speeding.
4. Low-battery alarm: It will alarm if the battery is low.
5. SOS Alarm: Pressing the SOS button to arise a SOS Alarm
6. Two way voice function: you can talk to the tracker.
Applications:
Protect the child/elderly/disabled/pet etc.
Personnel management
Track the vehicle/ equipment etc.
Provide peace-of-mind for businessmen
Tracking system for Express/Carriers/Logistics
Specification:
Content | Specs. |
Dimension | 65*40*18mm |
Weight | 56.4g |
Network | GSM/GPRS |
Band | 900/1800MHz, 850/900/1800/1900MHz |
GPS chip | SIRF4 chip |
GPS sensitivity | -159dBm |
GPS accuracy | 5-10m |
Cold start | 42 sec. |
Warm starts | 38 sec. |
Hot start | 1 sec. |
Battery | Chargeable 3.7V 1700mAh battery |
Operation temperature | -20°C to +55°C |
Humidity | 5%--95% non-condensing |
Hardware Description
Start up:
TRACKER:Do charge the battery for 8 to12 hours after first use. Then, the battery can be charged fully in 4-5 hours. In order to protect the device please use the battery and charger which come with the tracker.
SIM CARD:Please be sure that there is call display but no call transfer, and PIN code is off.
Switch on:
Please take the unit outdoors or near the window. The device will be switched on after inserting the sim card and pressing the power button.
Switch off:
The device will be switched off after pressing the power button.
GPRS setting (based on a fixed platform):
1. Make sure the GPRS function of the SIM CARD is opened
2. Get APN from your cellular carrier (GPRS access point name).12.3. Send the device 123456B to get IMEI number and make sure this IMEI number has been registered on the platform, if not, please send it to the seller, let them contact factory.
4. Set the APN, IP & PORT
Send SMS “123456C$$$$,IP:Port” to set the APN, IP and port. IP and port is about the server you use.
Note: Make sure that the IP should be the public IP. If your pc is in Internet, you must know your public IP.
E.g. send SMS“123456CCMNET,119.122.101.91:9289”. CMNET is the APN of China Mobile company, please set the APN of the cellular company you use. 119.122.101.91:9289 is the IP & PORT of our own server.
5. Send command 123456D to open GPRS
Send command 123456E to close GPRS
Recommend using the GPRS, it is more convenient to monitor your people or fleet.

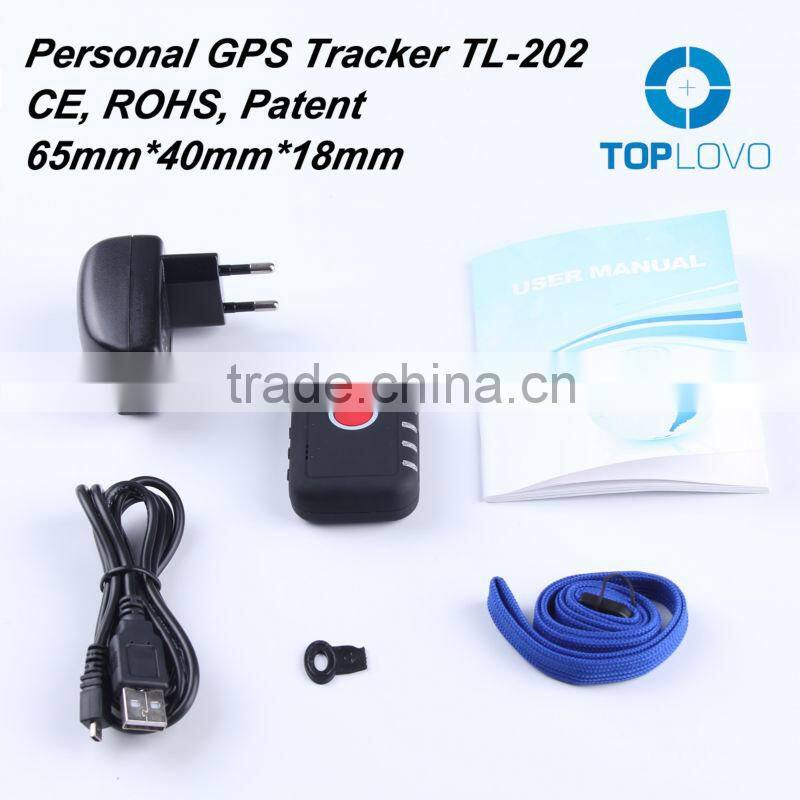

Accessories:
Standard: 1xTracker, 1xUSB cable, 1xCharger(US&EU standard), 1xManual, 1xLanyard
Optional (Pay for it):
Car charger, USB Convertor(Set parameter via pc), Waterproof bag(IP6/7), More usb cable/Charger(US standard,EU standard)
Cautions:
Please comply with the instructions to extend the unit life:
1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry.
2. Don’t use & store the unit in dusty places.
3. Don’t put the unit in overheated or overcooled places.
4. Handle carefully. Don’t vibrate or shake it violently.
5. Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent.
6. Don’t paint the unit, this may cause some foreign materials left in between the parts.
7. Don’t disassemble or refit the unit.
8. Please use and charger provided by manufacturer. Using other chargers will cause unwanted situation.
More Pictures:
