TL-208Double MCU Intelligent Vehicle Tracker
1. INTRODUCTION
1.1. Product name
GPS / GPRS / GSM dual-controlled microcomputer car anti-theft alarm
Model: TL208
1.2. Product description

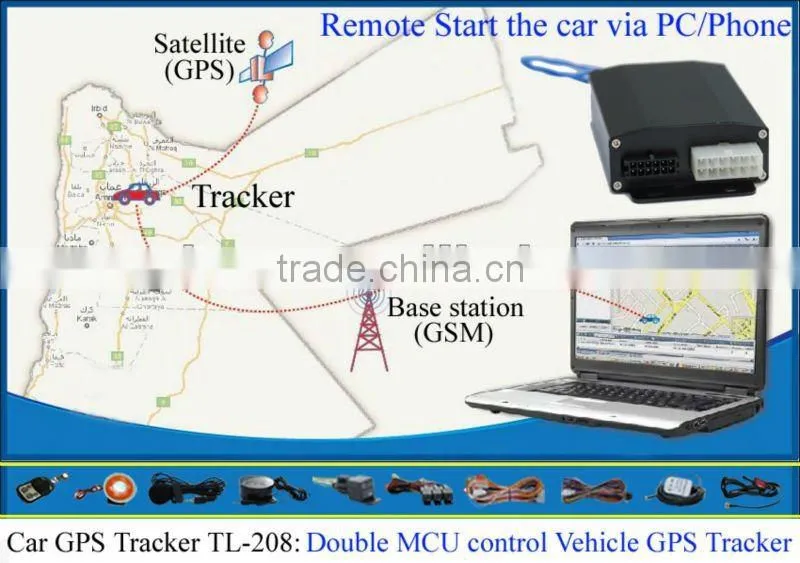

This tracking system integrates GPS/GSM/GPRS is a double MCU control car anti-theft alarm device. It is a Hi-Tech auto electronic security cutting-edge product which replaces ordinary single and double way car anti-theft alarm products. It make full using of GPRS/GSM communications technologies, Global Positioning System (GPS), Universal To Code technology and MCU processing tech, which fulfills real-time tracking, anti-theft and many functions of interactions between the owner and their vehicle, such as: automatic vehicles alarm function which can call your mobile/Tel automatically, Fortify and removal, cut oil/electricity, remote starting, remote listen in without distance limit via mobile phone and tracking platform, it can locate and find your vehicle after stolen or rob, phone call via tracker, more than 30 functions, true 24 hours escort for your car. Gain the location and driving data automatically, transmit the data to the platform via GPRS module, it compatible with various monitoring software, tracker also can send this data via SMS, and then you can do locating and monitoring on Google Earth.
2.WTHA'S NEW?
1. Support the salvation platform of government department
2. Support hand-free phone call between driver and call center. This function is very useful for taxi, rental vehicle, ambulance and police car.
3. Easy to assemble: design for a built-in relays, simplify the complex installation procedures.
4. The server software is especially designed for tracking a large quantity of trackers. It can support more than 10 thousands users.
5. Information can be stored in blind area for at least 15 hours
6. Software is very flexible, as long as client software is installed in computer, user can get the real-time position and the history replay etc. via GPRS. It will save your lots of expenses
3.MAIN FEATURES :
Real-time locating and tracking via phone/pc
Compatible with the original car alarms
Hand-free phone call
Listen in function
Door detective
ACC(ignition) detective
SOS alarm
In/out Geo-fence alarm
Speeding/Power-lost alarm
Locate information storage
Power-lost alarm
Cut off the circuit or oil (External Relay)
Remote starting engine(Preheated ahead)
Multi-function remote (effective range: 20M)
Door & carriage remote control
Acousto-optic anti-theft alarm
Detecting input voltage via Software setting
Parking warning
Build-in vibration sensor
SMS/GPRS/PC three ways to refresh data
Travel mileage modification
4.APPLICATIONS
u Rental vehicle monitoring and management
u Taxi/ ambulance/police car dispatch management
u Real-time tracking, guard against theft, telephone navigation to make sure safe journey
u Fleet dispatching management in large companies, such as nearby scheduling, Oil mass, maintain reminders
u GPS tracking server and management software
u Traffic control center platform, which can prevent congestion effectively and reduce traffic accidents
u Entertainment industry, communication system industry, transportation industry and so on
u Express, logistic team, travel agencies, hotels
u Government organizations: police administration unit, public transportation
u Special vehicle management (dump truck, tanker, container, etc.)
u Offer navigate and locate service on platform
u Secondary development and can work with other products
5. SPECIFICATIONS
Content |
Specs. |
Dimension |
91* 64* 25mm |
Weight |
150g |
GSM |
Band: Dual band: 900MHz/1800MHz Quad band:850/900/1800/1900MHz GPRS/GSM Module serial interface voltage: 3.8V GPRS/GSM Module attended to current: 11-25mA Operating control distance: Valid in where GSM signal is available Static current: 10mA |
GPS |
Based on Sirf III, Sensitivity/accuracy: -154dBm/5-10M(Depending on the GPS satellite, weather, geographical position) |
Start time |
Cold start 60S |
Output voltage of interface |
Turn off: disconnect(Built-in blackouts relays) Alarm LED:12V Alarm horn:12V |
Input voltage of interface |
Door detecting voltage: 0V/12V(positive/negative configurable triggering) The keys detecting: 12V(that is ACC input voltage) The foot brake detecting: 12V |
Input Voltage |
9-30V |
quiescent current |
60mA -80 mA (Plus GPRS/GSM and GPS modules) |
Fortification/removal operating frequency |
300MHz-350MHz |
Remote Control |
Operating Voltage:12V(A 12V battery type A27) operating frequency: 300MHz-350MHz Fortification/removal remote distance: Over 20m quiescent current: 10uA |
Battery |
Chargeable 3.7V 850mAh |
Standby Time |
50-60Hours |
Power Consumption |
≤50mA |
Work Environment |
Storage Tem: -40°C - +85°C Working Tem:-20°C - +55°C Working Humidity: 5%-95% non-condensing |
