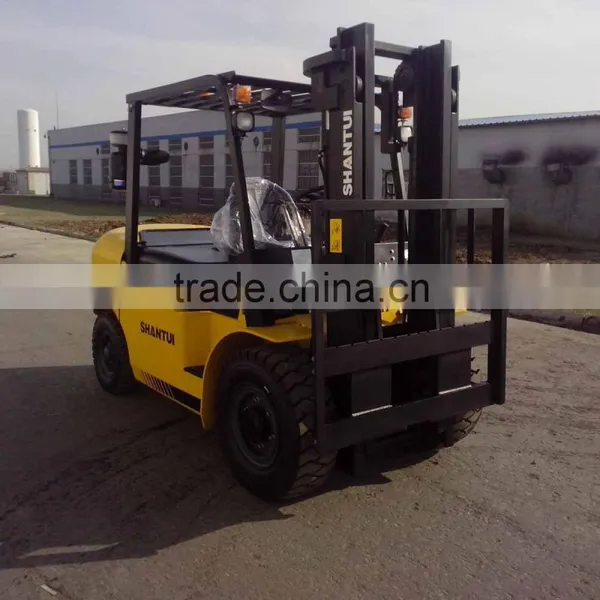

High Quality Normal 5TON Forklift With Perkins Engine Sales in Dubai

High Quality Normal 5TON Forklift With Perkins Engine Sales in Dubai thumbnail-1
High Quality Normal 5TON Forklift With Perkins Engine Sales in Dubai photo-1
US$ 15500.00 - 16000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SHANTUI
Contact Supplier Request Quote Chat Now
Shandong Volin Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name SHANTUI
Model Number SF50X
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 5000kg
Max. Lifting Height 6000mm
Min. Lifting Height 3000mm
Fork Length 1070mm
Fork Width 150mm
Overall Dimensions 4275x1445x2345mm
Certification ISO9001/ISO14001/CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Advantages

Shantui 5.0Ton diesel forklift (SF50X)equipment with high quality China engine, hydraulic transmission,double oil pump,hydraulic assisted steering,four tires.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.





Engine
Model
Perkins 1104D-44

Rated Output
56/2200
Kw/rpm
Rated Torque
260/1400
N·m/rpm
No.of cylinder
4

Bore×stroke
105x127
mm
Displacement
4.4
L


Dimensions
Lifting Height
3000
mm
LxWxH(With/Without Fork)
4275(3205)x1445x2345
mm
Turning radius
2800
mm
Mast tilt angle(F/R)
6/12
Degree


Performance
Travel speed(full load/no load)
19/20
Km/h
Lift speed (with /without) load
400/450
mm/sec
Max.gradeability
20
%
Self weight
6700
Kg


Wheel&tires
Front
300-15-CL621

Rear
7.00-12-12PR

Wheelbase
2100
mm
Min.ground clearance(mast)
233.5
mm
Detailed Images

Perkins 1104D Engine.

UK Perkins 1104D high quality Diesel engine.Low oil consuption,low noize,strong powful.

Automatic Transmission.

Equipment with powershift transmission,two gear forward,1 rear,Easy operating.

Addtional Radiator

To pretect the machine working in a best temperature,using a second radiator.

Double Oil Pump.

To keep the hydraulic system working at the best condition,using a double oil pump.

Good quality Hydraulic Valve.

Choose the best Hydraulic Valv supplier in China.

LED Displaly Instrument.

Easy reading LED instrument,you can get the information of oil temperature,fuel level,working hours.

Working Performance
Packing & Delivery
Shipping
By Container,3 sets per 40 feet high container,if mast over height,canbe shipment by Ro-Ro Ship.
Packing
Nude Packing,Four tires fixed
No. of packets
Forklift    1  set            Fork     2   pcs.                Tool box   1 Set
Measurement
11CBM
Weight
6715KGS
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Related Products

7Ton Diesel Forklift

91.8% Response Rate

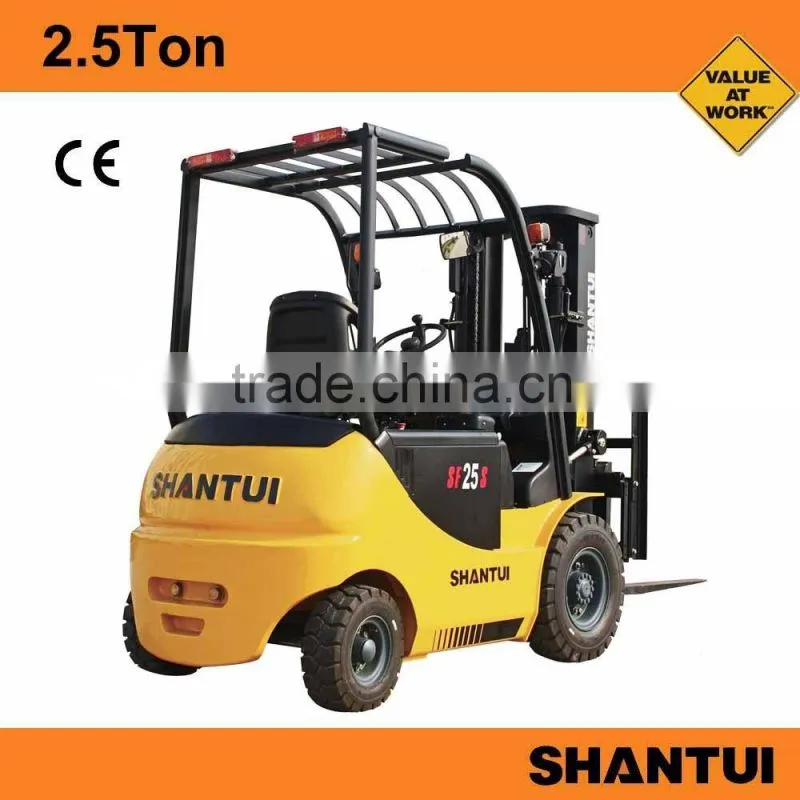

2.5Ton Electric Forklift
