STQ100-200 Double Acting Hydraulic cylinder
Product description
High pressure electric hydraulic cylinder is powered by high pressure electric oil pump, the function for oil pressure rebound, overflow, it is designed a safe protect pressurizer, it can protect emergent over pressure, especial construction can protect jack. Hydraulic cylinder can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.
Product data
Model | Tonnage T | Stroke B-A mm | Own body height A mm | Extend height B mm | Outer diameter of oil cylinder mm | Dimension of plunger mm | Dimension of oil pump mm | Weight kg | Pressure | Recommend electric oil pump |
STQ100-100 | 100 | 100 | 250 | 350 | 180 | 100 | 140 | 58 | 63MPA |
|
STQ100-160 | 160 | 310 | 470 | 63 | ||||||
STQ100-200 | 200 | 350 | 550 | 78 | ||||||
STQ100-300 | 300 | 450 | 750 | 96 | ||||||
STQ100-500 | 500 | 650 | 1150 | 130 | ||||||
STQ150-100 | 150 | 100 | 260 | 360 | 219 | 125 | 180 | 58 | 63MPA | |
STQ150-160 | 160 | 320 | 480 | 69 | ||||||
STQ150-200 | 200 | 360 | 560 | 86 | ||||||
STQ150-300 | 300 | 460 | 760 | 103 | ||||||
STQ150-500 | 500 | 660 | 1160 | 255 | ||||||
STQ200-100 | 200 | 100 | 285 | 385 | 240 | 150 | 200 | 96 | 63MPA | |
STQ200-160 | 160 | 345 | 505 | 103 | ||||||
STQ200-200 | 200 | 385 | 585 | 116 | ||||||
STQ200-300 | 300 | 485 | 785 | 161 | ||||||
STQ200-500 | 500 | 685 | 1185 | 221 | ||||||
STQ320-100 | 320 | 100 | 310 | 410 | 330 | 180 | 250 | 196 | 63MPA | 1.5KW 3KW |
STQ320-160 | 160 | 370 | 530 | 240 | ||||||
STQ320-200 | 200 | 410 | 610 | 258 | ||||||
STQ320-300 | 300 | 510 | 810 | 311 | ||||||
STQ320-500 | 500 | 710 | 1210 | 456 | ||||||
STQ400-100 | 400 | 100 | 355 | 455 | 380 | 200 | 290 | 198 | 63MPA | 3KW 4KW |
STQ400-160 | 160 | 415 | 575 | 231 | ||||||
STQ400-200 | 200 | 460 | 660 | 264 | ||||||
STQ400-300 | 300 | 555 | 855 | 367 | ||||||
STQ400-500 | 500 | 755 | 1255 | 456 |
Product show
Double acting cylinders

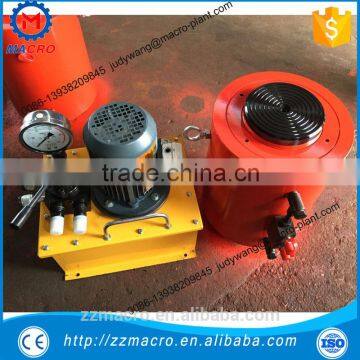

hydraulic jack cyliner with electrcial oil pump or hand pump
Single acting hydraulic cylinder
We also have Hollow Plunger Hydraulic Jack Cylinder for your reference.
Machine Delivery
Related product
Oil Pump
If any question, pls contact me freely.
