Home > Products > Anchor Equipment& Tools > Hydraulic Jack with Pump/Oil Pump Station
Hydraulic Jack with Pump/Oil Pump Station
- 100 Set / Sets per Month
- Shanghai Tianjin Qingdao Guangzhou and etc.
- T/T Credit Card PayPal
You May Like
-
Double Acting Plunger Heavy Lifting Hydraulic Jack
-
Double Acting Hydraulic Cylinder Jack with the Middle Hole
Quality Choice
-
single acting flat jack 100 ton hydraulic cylinder
Supplier's Choice
-
single acting hydraulic jack with electrical oil pump
-
Oil pump for lifting STQ series hydraulic cylinder
-
double acting hollow plunger jack/ hydraulic cylinder
Quality Choice
Supplier's Choice
Product Details
| Standard or Nonstandard | Standard | Structure | Other, Piston Cylinder, Piston Cylinder | |
| Power | Hydraulic | Body Material | Steel | |
| Maximum Stroke | 100-500max, 300mm | Place of Origin | Henan, China | |
| Model Number | RRH series | Brand Name | MC | |
| Shaft Diameter | customised |
Product Description
Hydraulic Jack with Pump/Oil Pump Station
Product description
RRH series of double acting hollow hydraulic cylinder has all the function of general hydraulic jack, and it also has the function of pulling. It also used for tension PC strands, steel wire, axle and drill rod.
Features
1) Double acting design can highly improve the convenience.
2) Built-in safe valve can protect jack when over loading.
3) Cylinder can bear Max loading when Max stroke.
4) High quality seal ring make the jack’s life more long, no oil leakage.
Product data
Model | Capacity T | Stroke B-A mm | Own body height A mm | Extend height B mm | Outer diameter mm | Center hole mm | Weight Kg |
RRH-307 | 30 | 178 | 330 | 508 | 114 | 33.3 | 22 |
RRH-3010 | 257 | 432 | 689 | 114 | 33.3 | 27 | |
RRH-603 | 60 | 89 | 248 | 337 | 159 | 53.8 | 28 |
RRH-606 | 165 | 324 | 489 | 159 | 53.8 | 35 | |
RRH-6010 | 257 | 438 | 695 | 159 | 53.8 | 46 | |
RRH-1001 | 100 | 38 | 165 | 203 | 213 | 79.2 | 39 |
RRH-1003 | 76 | 254 | 330 | 213 | 79.2 | 61 | |
RRH-1006 | 152 | 342 | 495 | 213 | 79.2 | 79 | |
RRH-10010 | 257 | 460 | 718 | 213 | 79.2 | 107 | |
RRH-1508 | 150 | 203 | 349 | 552 | 248 | 79.5 | 111 |
Product show
single acting hollow plunger cylinder
Double acting hollow plunger cylinders
Hydraulic jack cyliner with electrcial oil pump or hand pump
We also have soild core Hydraulic Jack Cylinder for your reference.
Machine Delivery
Related product
Oil Pump
Anchorage

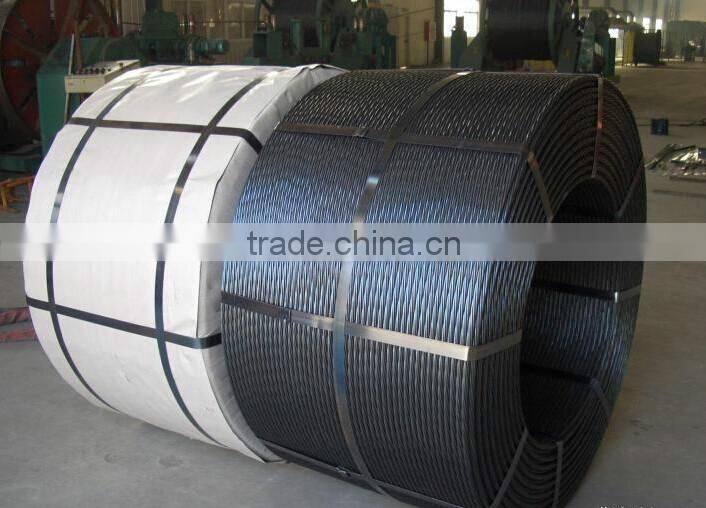

Pc steel strand
If any question, pls contact me freely.
