Hydraulic Jack for Lifting Bridge

FOB Price

US$ 100 - 500 / Set

2 Sets(Min. Order)

Port Shanghai Tianjin Qingdao Guangzhou and etc.
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Other, Piston Cylinder, Piston Cylinder
Power	Hydraulic	Body Material	Steel
Maximum Stroke	500-1000max, 300mm	Place of Origin	Henan, China
Model Number	RC series	Brand Name	MC
Shaft Diameter	customised

Product Description

hydraulic jack for lifting bridge

Product description

RC series of single acting hydraulic jack, it has safe safe protect pressurizer, built-in pressure relief valve in order to protecting over loading, and it is good for safe operate. All the model can be customized according to client’s requirements. The hydraulic cylinder is main used for electric power, building, machine manufacturer, mining, subway, bridge and shipbuilding and kinds of industry for installing, lifting and tear down.

Features

1) Single acting design, spring rebound.

2) Stoving varnish has more better anti-corrosion.

3) Dustband can reduce pollution, it can extend hydraulic cylinder’s usage life.

Product data

Model	Tonnage T	Stroke mm	Own body height mm	Extend height mm	Efficiency area Of cylinder cm 2	Capacity of hydraulic oil cm 3	Outer diameter mm	Weight Kg
RC-50	5	16	41	57	6.4	10	55	1
RC-51		25	90	115	6.4	16	55	1
RC-53		76	145	221	6.4	49	55	1.5
RC-55		127	196	323	6.4	81	55	1.9
RC-57		178	253	431	6.4	114	55	2.4
RC-59		232	304	536	6.4	148	55	2.8
RC-101	10	25	80	105	14.4	36	60	1.8
RC-102		54	111	165	14.4	78	60	2.3
RC-104		105	161	266	14.4	151	60	3.3
RC-106		156	238	394	14.4	225	60	4.4
RC-108		203	288	491	14.4	292	60	5.4
RC-1010		257	339	596	14.4	370	60	6.4
RC-1012		305	390	695	14.4	439	60	6.8
RC-1014		356	441	797	14.4	513	60	8.2
RC-151	15	25	104	129	20.3	51	70	3.3
RC-152		51	129	180	20.3	104	70	4.1
RC-154		102	180	282	20.3	207	70	5
RC-156		152	252	404	20.3	309	70	6.8
RC-158		203	302	505	20.3	412	70	8.2
RC-1510		254	353	607	20.3	516	70	9.5
RC-1512		305	404	709	20.3	619	70	10.9
RC-1514		356	455	811	20.3	723	70	11.8
RC-251	25	25	120	145	33.2	83	90	5.9
RC-252		51	145	196	33.2	169	90	6.4
RC-254		102	196	298	33.2	339	90	8.2
RC-256		159	253	412	33.2	528	90	10
RC-258		210	304	514	33.2	697	90	12.3
RC-2510		260	355	615	33.2	863	90	14.1
RC-2512		311	405	716	33.2	1033	90	16.3
RC-2514		362	456	818	33.2	1202	90	17.1
RC-308	30	210	337	547	41.9	880	102	18.1
RC-502	50	51	136	19%	71.3	364	127	15
RC-504		102	19%	289	71.3	727	127	19.1
RC-506		159	243	402	71.3	1134	127	23.2
RC-5013		337	421	758	71.3	2403	127	37.7

Product show

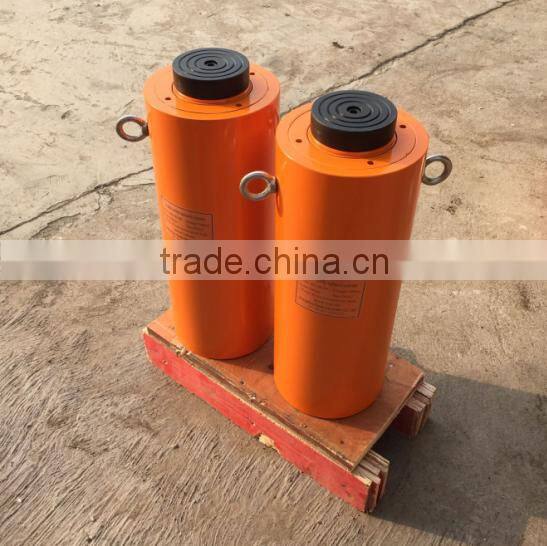

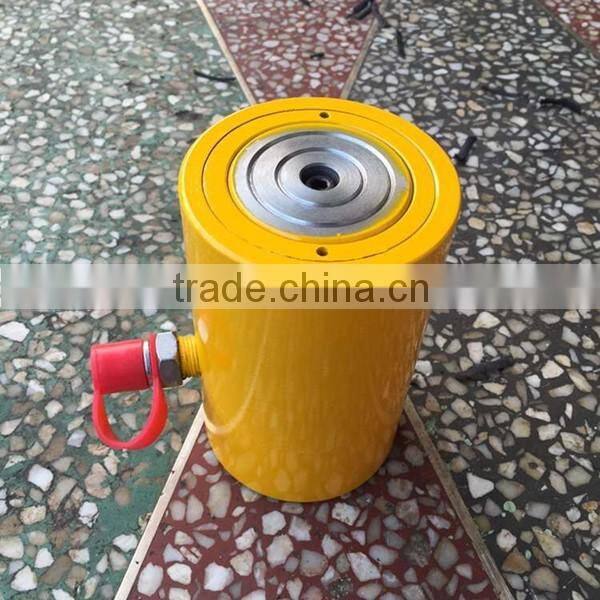

single acting cylinder

Double acting cylinders

Hydraulic jack cyliner with electrcial oil pump or hand pump

We also have Hollow Plunger Hydraulic Jack Cylinder for your reference.

Machine Delivery
