GS-T04A Wireless Alarm System With Mobile Phone Call Function

Specifications

GS-T04A wireless alarm system with mobile phone call function

1.With nice-looking and LED screen and blue comfortable-to-use touch keypad

2.Convenient to operate at night when used with backlight

3.Compatible with GSM networks

4.Sends SMS and calls landlines and mobile phones in an emergency

5.Can be pre-stored with up to five groups of telephone numbers dialed in sequence in an emergency

6.Can record a voice message of up to 10 seconds in the host that can be heard via landline or mobile phone when answering emergency call

7.Employs intelligent logic analysis technology where corresponding zone number and sensor name are shown in SMS

8.Supports 15 wireless zones (each zone supports up to fout sensors) and one dedicated zone for remote supporting up to 10 remotes or wireless keypads

9.Can be armed or disarmed by SMS, remote controller, built-in keypad, wireless keypad (optional device) or phone call

10.Utilizes auto call priority by cutting off the busy line and occupying the next open line in an emergency

11.With listening-in function that allows you to hear what is happening

12.Stores information automatically in a non-volatile chip when power is lost

13.Workable on AC and DC power source

14.Alerts of low backup battery power and no external power

15.Uses easy-to-operate learning sensors to alarm host

16.Supports CID uploading to CMS (center monitoring station) usable with optional GSM CID connector

Technical Parameter

Input power : 12V DC/1A

Alarm output : 12V/300mA

Working current : 40mA

Built in battery : 7.2V/600mAH

Working temperature : -10~ +70°C

Storage Temperature : -20~ +80°C

Wireless receiving frequency : 315MHz/433MHz

Wireless receiving sensitivity : -100db

Working voltage:110~240VAC
Operating power: 9-15VDC

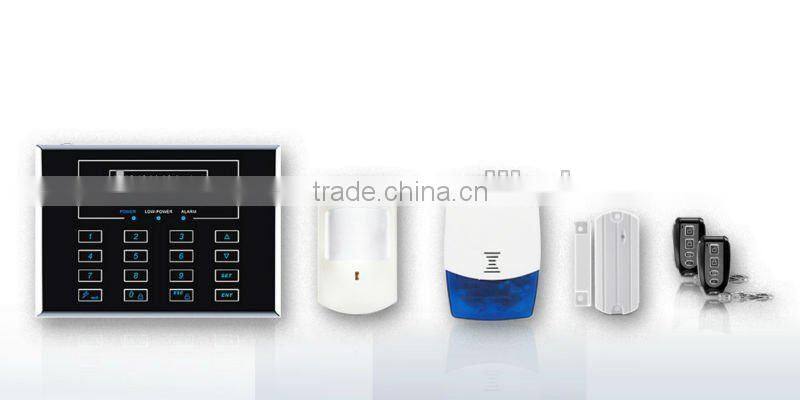

The standard package of GS-T04A as Below:

The Extra alarm accessories as below can be learned to GS-T04A

The gift box of GS-T04A

Attention:

1.The appearance of GS-T04A are customized for European market,with nice design and good quality.

2.The alarm sensors of GS-T04A can be 868mhz.

3.GS-T04A can support CID Protocol,but need work with GSM alarm receiver to connect with monitoring station.
